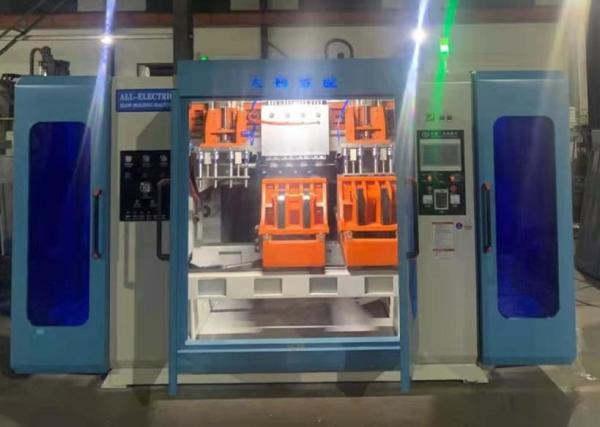

Sea Ball Fully Automatic Blow Molding Machine Double Station 6 Head HDPE Bottle
Sea Ball Fully Automatic Blow Molding Machine Double Station 6 Head HDPE Bottle
Sea Ball Fully Automatic Blow Molding Machine Double Station 6 Head HDPE Bottle
Sea Ball Fully Automatic Blow Molding Machine Double Station 6 Head HDPE Bottle
Sea Ball Fully Automatic Blow Molding Machine Double Station 6 Head HDPE Bottle
Sea Ball Fully Automatic Blow Molding Machine Double Station 6 Head HDPE Bottle
Sea Ball Fully Automatic Blow Molding Machine Double Station 6 Head HDPE Bottle
Sea Ball Fully Automatic Blow Molding Machine Double Station 6 Head HDPE Bottle
Specifications
Brand Name :
SHUANGLI
Model Number :
SLBU-65
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Price negotiation.
Payment Terms :
L/C, T/T
Supply Ability :
100 Set per month
Delivery Time :
20 woking day
Packaging Details :
Standard export package
Material :
PE,PP,EVA,ABS,PS
Max capacity :
5L
Product :
Plastic Sea Ball
Clamping Type :
Toggle Struction
Die Head :
6 Heads
Station :
Double Station
Description

U series Double Station High Speed 1 Layer 6 Die Heads Blow Molding Machine for Plastic Sea Ball

SLBU series:

1. we will provide all the machines for the complete production according to customer’s requirements.

2. we will provide complete service for factory layout and other information to help customer to build the factory.

3. we can also provide the raw material to the customer if you need.

4. we will provide good service for machine installation and training, until the customers can run the machines and make stably production.

5. Except one year quality guarantee, we will provide after-sell service for all the life.

6. For long-term cooperation, we always provide good quality, good price and good service to customer. we are the professional and trustable supplier for turnkey projects. Let us do win-win business together.

.

7: this machine is suitable for the production of 5L plastic hollow products, the use of curved elbow lock system, low energy consumption, the center of the lock, the lock force, speed faster, run more smoothly

SPECIFICATION SLBU-65
MATERIAL 　 PE,PP,EVA,ABS,PS
MAX CONTAINER CAPACITY L 5
NUMBER OF DIE HEAD SET 1,2,3,4,6,8
OUPUT(DRY CYCLE) PC/HR 1000x2
MACHINE DIMENSION (LxWxH ) MM 4000x2300x2200
TOTAL WEIGHT TON 6.5T
CLAMPING UNIT 　
CLAMPING FORCE KN 65
PLATEN OPENING STROKE MM 220-520
PLATEN SIZE(WxH) MM 400x430
MAX MOULD SIZE(WxH) MM 460x430
MOLD THICKNESS MM 255-280
EXTRUDER UNIT 　
SCREW DIAMETER MM 65
SCREW L/D RATIO L/D 25
MELTING CAPACITY KG/HR 70
BARREL HEATING POWER KW 15
NUMBER OF HEATING ZONE ZONE 3
EXTRUDER MOTOR RATED POWER KW 15
DIE HEAD 　
NUMBER OF DIE HEATING ZONE ZONE 2-5
POWER OF DIE HEATING KW 6
CENTER DISTANCE OF DOUBLE DIE MM 130
CENTER DISTANCE OF THREE DIE MM 110
CENTER DISTANCE OF FOUR DIE MM 100
CENTER DISTANCE OF SIX DIE MM 80
MAX DIE-PIN DIAMETER MM 180
POWER 　
MAX DRIVE POWER KW 18
TOTAL POWER KW 50
FAN POWER OF SCREW KW 2.4
AIR PRESSURE MPA 0.6
AIR CONSUMPTION M3/MIN 0.4
AVERAGE ENERGY CONSUMPTION KW 18

Sea Ball Fully Automatic Blow Molding Machine Double Station 6 Head HDPE Bottle
