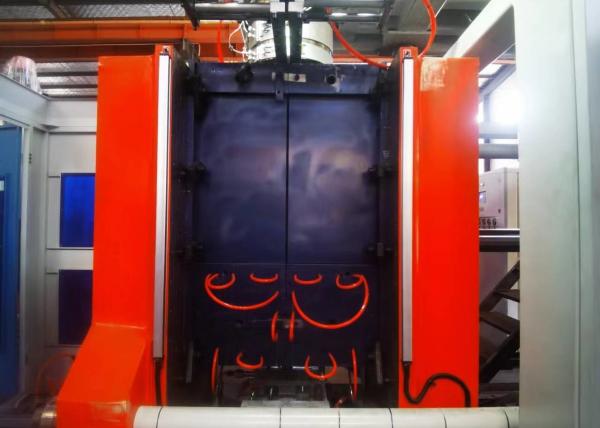

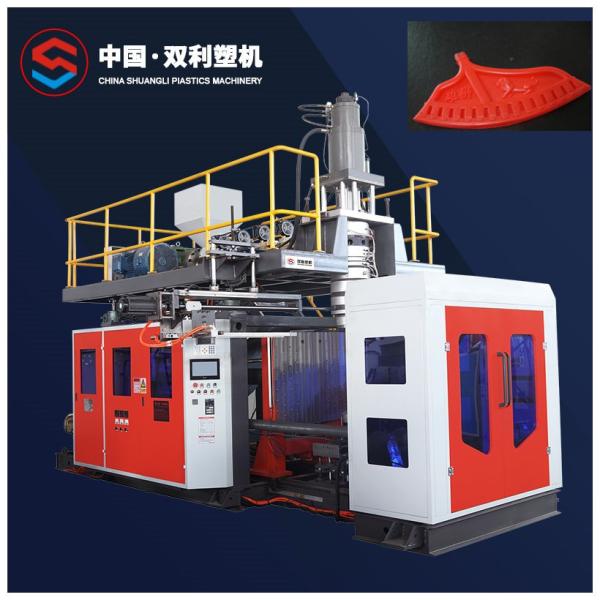

EVA 1 Head Plastic Bottle Blow Molding Machine 450 Bph Preform
EVA 1 Head Plastic Bottle Blow Molding Machine 450 Bph Preform
EVA 1 Head Plastic Bottle Blow Molding Machine 450 Bph Preform
EVA 1 Head Plastic Bottle Blow Molding Machine 450 Bph Preform
EVA 1 Head Plastic Bottle Blow Molding Machine 450 Bph Preform
EVA 1 Head Plastic Bottle Blow Molding Machine 450 Bph Preform
EVA 1 Head Plastic Bottle Blow Molding Machine 450 Bph Preform
EVA 1 Head Plastic Bottle Blow Molding Machine 450 Bph Preform
Specifications
Brand Name :
SHUANGLI
Model Number :
SLBC-90
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Price negotiation.
Payment Terms :
L/C, T/T
Supply Ability :
100 Set per month
Delivery Time :
20 woking day
Packaging Details :
Standard export package
Material :
PE,PP,EVA,ABS,PS
Max capacity :
60L
Product :
Plastic Toy Part
Clamping Type :
C type
Station :
Single
Die Head :
Single Head
Description

1 Die Head Accmulator Type Single Station Plastic Blow Molding Machine For Plastic Toy Part

SLBC series: (German model) the whole system is equipped with safety protection grating, to ensure the safety of the production process .

It consists of a blow needle cylinder, a needle holder, a pad, a fixing plate, an adjustment plate, an air blowing device . The air blowing device can

be divided into single head, double head and four heads, and the air blowing device is composed of a connecting plate, a blowing needle hanging

plate, a fixing plate, a guiding column, a bearing sleeve, a pressing plate, a stripping sleeve, a needle bar, a needle bar core, Blowing head and

other components.

SPECIFICATION SLBC-90
MATERIAL 　 PE,PP,EVA,ABS,PS
MAX CONTAINER CAPACITY L 60
OUPUT(DRY CYCLE) PC/HR 450
MACHINE DIMENSION (LxWxH ) MM 6300x3400x4200
TOTAL WEIGHT TON 14T
CLAMPING UNIT 　
CLAMPING FORCE KN 260
PLATEN OPENING STROKE MM 400-1200
PLATEN SIZE(WxH) MM 900x1000
MAX MOULD SIZE(WxH) MM 750x1200
MOLD THICKNESS MM 410-700
EXTRUDER UNIT 　
SCREW DIAMETER MM 90
SCREW L/D RATIO L/D 25
MELTING CAPACITY KG/HR 140
BARREL HEATING POWER KW 20
NUMBER OF HEATING ZONE ZONE 5
EXTRUDER MOTOR RATED POWER KW 45
DIE HEAD 　
NUMBER OF DIE HEATING ZONE ZONE 4
POWER OF DIE HEATING KW 18
MAX DIE-PIN DIAMETER MM 400
POWER
MAX DRIVE POWER KW 57
TOTAL POWER KW 105
FAN POWER OF SCREW KW 4
AIR PRESSURE MPA 0.8-1.2
AIR CONSUMPTION M3/MIN 0.8
AVERAGE ENERGY CONSUMPTION KW 38
ACCUMULATOR CAPACITY L 8
