MOOG Single Stage PE Bottle Machine Plastic Multi Layer Blow Molding
MOOG Single Stage PE Bottle Machine Plastic Multi Layer Blow Molding
MOOG Single Stage PE Bottle Machine Plastic Multi Layer Blow Molding
MOOG Single Stage PE Bottle Machine Plastic Multi Layer Blow Molding
MOOG Single Stage PE Bottle Machine Plastic Multi Layer Blow Molding
MOOG Single Stage PE Bottle Machine Plastic Multi Layer Blow Molding
MOOG Single Stage PE Bottle Machine Plastic Multi Layer Blow Molding
MOOG Single Stage PE Bottle Machine Plastic Multi Layer Blow Molding
Specifications
Brand Name :
SHUANGLI
Model Number :
SLBC-90
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Price negotiation.
Payment Terms :
L/C, T/T
Supply Ability :
100 Set per month
Delivery Time :
20 woking day
Packaging Details :
Standard export package
Material :
PE,PP,EVA,ABS,PS
Max capacity :
60L
Product :

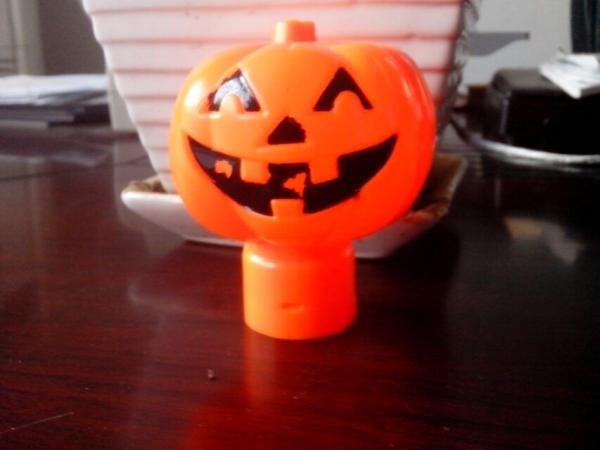

Plastic Festival Lanterns
Clamping Type :
C type-Tie bar
Station :
Single Station
Machine Type :
Accmulator Type
Description

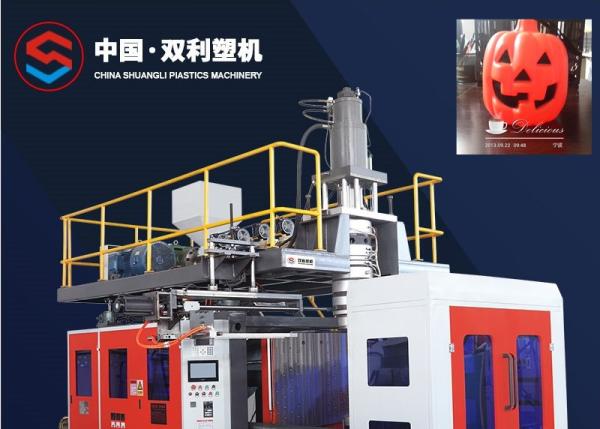

1 Die Head Accmulator Type Single Station Plastic Blow Molding Machine For Plastic Festival Lanterns

SLBC series: (German model)large opening stroke, central locking, locking force equilibrium, no deformation.Equippedwith molding widening

system and MOOG parison system 100 points.

the whole system is equipped with safety protection grating, to ensure the safety of the production process

The blowing head in the device must be matched to the product produced and the mold from which the product is produced. Different item need

to be made with different blowing heads that match the product.

The cutter device is composed of a fixed plate, a cylinder block, a cutting blade, a coupling plate, a copper rod, a guide column, a cutter cylinder,

a transition joint, an insulating spacer, etc., and the function is to cut off the glue tube between die head and mold after the mold clamping ; the

cutting blade is heated at a high temperature, and the operator should pay attention to safety when adjusting and debugging. The guide post on

the cutter unit should be refueled frequently to make it work properly.

SPECIFICATION SLBC-90
MATERIAL 　 PE,PP,EVA,ABS,PS
MAX CONTAINER CAPACITY L 60
OUPUT(DRY CYCLE) PC/HR 450
MACHINE DIMENSION (LxWxH ) MM 6300x3400x4200
TOTAL WEIGHT TON 14T
CLAMPING UNIT 　
CLAMPING FORCE KN 260
PLATEN OPENING STROKE MM 400-1200
PLATEN SIZE(WxH) MM 900x1000
MAX MOULD SIZE(WxH) MM 750x1200
MOLD THICKNESS MM 410-700

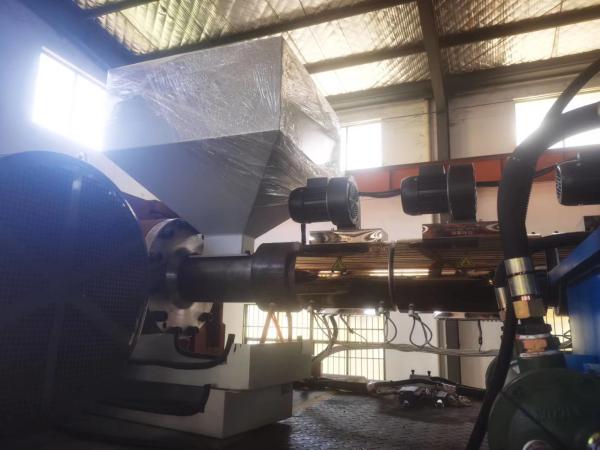

EXTRUDER UNIT 　
SCREW DIAMETER MM 90
SCREW L/D RATIO L/D 25
MELTING CAPACITY KG/HR 140
BARREL HEATING POWER KW 20
NUMBER OF HEATING ZONE ZONE 5
EXTRUDER MOTOR RATED POWER KW 45
DIE HEAD 　
NUMBER OF DIE HEATING ZONE ZONE 4
POWER OF DIE HEATING KW 18
MAX DIE-PIN DIAMETER MM 400
POWER
MAX DRIVE POWER KW 57
TOTAL POWER KW 105
FAN POWER OF SCREW KW 4
AIR PRESSURE MPA 0.8-1.2
AIR CONSUMPTION M3/MIN 0.8
AVERAGE ENERGY CONSUMPTION KW 38
ACCUMULATOR CAPACITY L 8
