PLC Accumulator Accumulator Blow Moulding Machine For 200L Barrel
PLC Accumulator Accumulator Blow Moulding Machine For 200L Barrel
PLC Accumulator Accumulator Blow Moulding Machine For 200L Barrel
PLC Accumulator Accumulator Blow Moulding Machine For 200L Barrel
PLC Accumulator Accumulator Blow Moulding Machine For 200L Barrel
PLC Accumulator Accumulator Blow Moulding Machine For 200L Barrel
PLC Accumulator Accumulator Blow Moulding Machine For 200L Barrel
PLC Accumulator Accumulator Blow Moulding Machine For 200L Barrel
Specifications
Brand Name :
SHUANGLI
Model Number :
SLBC
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Price negotiation.
Payment Terms :
L/C, T/T
Supply Ability :
100 Set per month
Delivery Time :
20 woking day
Packaging Details :
Standard export package
Material :
PE,PP, ABS
Max capacity :
200L
Head :
Single Head
Product :

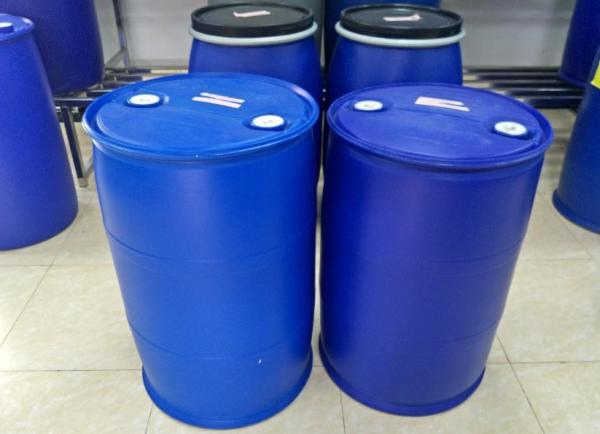

200L Chemical Barrel
Machine Type :
Automatic Accumulator
PLC :
SIEMENS
Description

High Speed Automatic Accumulator Blow Moulding Machine For 200L Chemical Barrel

SLBC series: (German model)

1:Fully Automatic Blow Moulding Machine, large opening stroke, central locking, locking force equilibrium, no deformation. All parts of the machine is made by advanced numerical control equipment with high precision.

2:Fully Automatic Blow Moulding Machine, The electronic control system consists of operation panel, touch display screen, temperature control module, PLC programmable controller, analog quantity, proportional board, contactor, regulated power supply, automatic air switch, intermediate relay, twisted material inverter, proximity switch, stroke Switch, cutter transformer, twisting motor, oil pump motor and so on.

Mold assembly: Click the “close” button, and the mold opening and closing mechanism will have the mold clamping action. When it touches the end point switch of the mold clamping, it will work and the mold clamping action will stop.

On the needle: Click the “Up” button, the needle will move up. When it touches the end point of the needle, it will work, and the needle will stop.

Under the needle: Click the “Down” button, the needle will move down until the cylinder is in the end, and the action stops.

Die lift: Click the "L" button and the die will lift up until the cylinder is in the end and the action stops.

SPECIFICATION SLBC-120
MATERIAL 　 PE,PP,EVA,ABS,PS
MAX CONTAINER CAPACITY L 160
OUPUT(DRY CYCLE) PC/HR 300
MACHINE DIMENSION (LxWxH ) MM 7500x4200x6200
TOTAL WEIGHT TON 22T

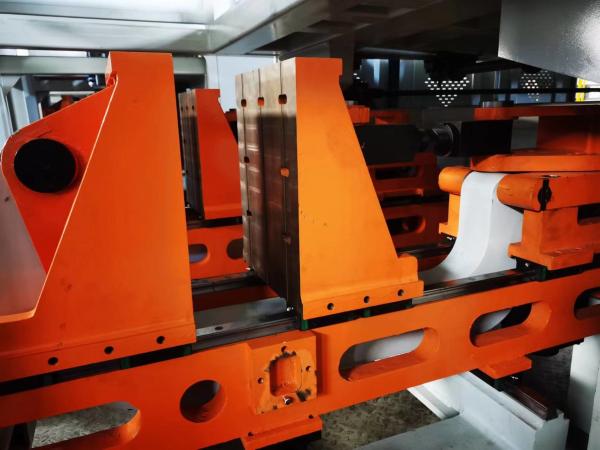

CLAMPING UNIT 　
CLAMPING FORCE KN 800
PLATEN OPENING STROKE MM 600-1400
PLATEN SIZE(WxH) MM 1400x1600
MAX MOULD SIZE(WxH) MM 1200x1900
MOLD THICKNESS MM 610-880
EXTRUDER UNIT 　
SCREW DIAMETER MM 120
SCREW L/D RATIO L/D 25
MELTING CAPACITY KG/HR 280
BARREL HEATING POWER KW 42
NUMBER OF HEATING ZONE ZONE 6
EXTRUDER MOTOR RATED POWER KW 90

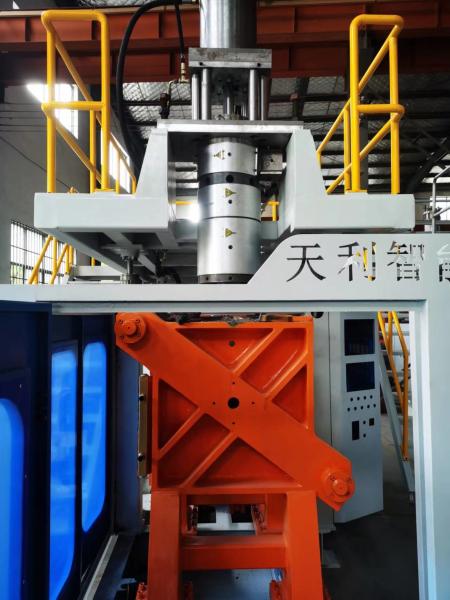

DIE HEAD 　
NUMBER OF DIE HEATING ZONE ZONE 5
POWER OF DIE HEATING KW 38
MAX DIE-PIN DIAMETER MM 500
POWER 　
MAX DRIVE POWER KW 125
TOTAL POWER KW 180
FAN POWER OF SCREW KW 4.8
AIR PRESSURE MPA 0.8-1.2
AIR CONSUMPTION M3/MIN 0.8
AVERAGE ENERGY CONSUMPTION KW 72
ACCUMULATOR CAPACITY L 30

PLC Accumulator Accumulator Blow Moulding Machine For 200L Barrel
