HDPE Bottle Accumulator Blow Moulding Machine 1 Die Head For Plastic Parts
HDPE Bottle Accumulator Blow Moulding Machine 1 Die Head For Plastic Parts
HDPE Bottle Accumulator Blow Moulding Machine 1 Die Head For Plastic Parts
HDPE Bottle Accumulator Blow Moulding Machine 1 Die Head For Plastic Parts
HDPE Bottle Accumulator Blow Moulding Machine 1 Die Head For Plastic Parts
HDPE Bottle Accumulator Blow Moulding Machine 1 Die Head For Plastic Parts
HDPE Bottle Accumulator Blow Moulding Machine 1 Die Head For Plastic Parts
HDPE Bottle Accumulator Blow Moulding Machine 1 Die Head For Plastic Parts
Specifications
Brand Name :
SHUANGLI
Model Number :
SLBC
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Price negotiation.
Payment Terms :
L/C, T/T
Supply Ability :
100 Set per month
Delivery Time :
20 woking day
Packaging Details :
Standard export package
Material :
HDPE
Max capacity :
20L-200L
Station :
Single
Product :
Plastic parts
Machine Type :
Tie Bar type
Die Head :
1 Head
Description

HDPE Bottle Blow Molding Machine 1 Die Head for Plastic parts

SLBC series: (German model)

1:HDPE Bottle Blow Molding Machine, large opening stroke, central locking, locking force equilibrium, no deformation. All parts of the machine is made by advanced numerical control equipment with high precision.

2:HDPE Bottle Blow Molding Machine, The electronic control system consists of operation panel, touch display screen, temperature control module, PLC programmable controller, analog quantity, proportional board, contactor, regulated power supply, automatic air switch, intermediate relay, twisted material inverter, proximity switch, stroke Switch, cutter transformer, twisting motor, oil pump motor and so on.

3. FHDPE Bottle Blow Molding Machine,The operation panel is equipped with a power key switch, a touch display, an alarm, a cutter heat, a cycle start, an emergency stop, a twisted motor switch, a twister motor speed switch.

When item require different diameter and shape of glue tube, the mold core and the mold sleeve of the lowermost part of the corresponding die need to be replaced. The connection dimensions of the core and the mold sleeve are as follows: (for self-design and processing of the core Mold cover

The fasteners (such as screws, screw holes, etc.) in the plasticizing system and the die parts must be coated with high temperature oil (ie copper disulfide) and then tightened.

SPECIFICATION SLBC-120
MATERIAL 　 PE,PP,EVA,ABS,PS
MAX CONTAINER CAPACITY L 160
OUPUT(DRY CYCLE) PC/HR 300
MACHINE DIMENSION (LxWxH ) MM 7500x4200x6200
TOTAL WEIGHT TON 22T
CLAMPING UNIT 　
CLAMPING FORCE KN 800
PLATEN OPENING STROKE MM 600-1400
PLATEN SIZE(WxH) MM 1400x1600
MAX MOULD SIZE(WxH) MM 1200x1900
MOLD THICKNESS MM 610-880

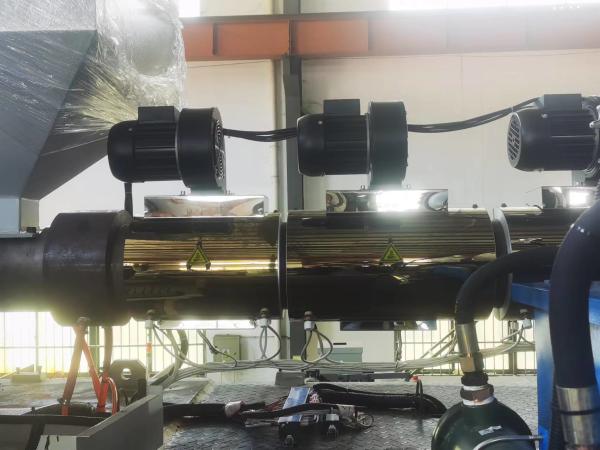

EXTRUDER UNIT 　
SCREW DIAMETER MM 120
SCREW L/D RATIO L/D 25
MELTING CAPACITY KG/HR 280
BARREL HEATING POWER KW 42
NUMBER OF HEATING ZONE ZONE 6
EXTRUDER MOTOR RATED POWER KW 90
DIE HEAD 　
NUMBER OF DIE HEATING ZONE ZONE 5
POWER OF DIE HEATING KW 38
MAX DIE-PIN DIAMETER MM 500
POWER 　
MAX DRIVE POWER KW 125
TOTAL POWER KW 180
FAN POWER OF SCREW KW 4.8
AIR PRESSURE MPA 0.8-1.2
AIR CONSUMPTION M3/MIN 0.8
AVERAGE ENERGY CONSUMPTION KW 72
ACCUMULATOR CAPACITY L 30

HDPE Bottle Accumulator Blow Moulding Machine 1 Die Head For Plastic Parts
