PET Plastic Sheet Extrusion Line , 50HZ APET PETG Sheet Machinery

Quick detail:

Material : PET

Voltage: 380v/50hz

Screw design: single screw

Capacity: 100-450kg/h

Product type : sheet

width of sheet: 1200mm

thickness of sheet : 0.18-2mm

speed of production line: 5-25m/min

condition : new

certification: CE UL CSA　

warranty: 1 year

Description:

1.suitable for 100% PET recycled material,thickness:0.2-2mm,max output 600-700kg/h,also can be custom-

made,according to requirement.

2.This machine unit adopts the specially-designed single or double screw extruder, according to

requirement.Also,it can choose co-extrusion technology for APET,PETG,etc.

3.Double column and double station screen,having the feature of good exhaust and cleaness.

4.on line silicone oil, anti-static device,imported transducer for speed adjusting, and imported RKC

temperature control instrument, featuring wide adjusting scope, high temperature control precision, and

convenient and reliable operation.

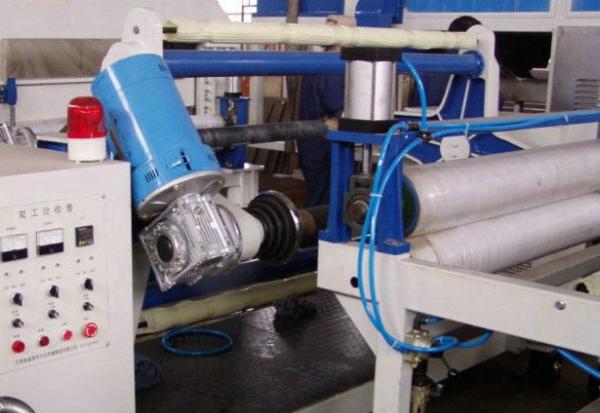

5.The auxiliary machine comprises vacuum shaping platform, tractor, cutter, and loading rack. The

equipment of large forced refrigeration device ensures the shaping effect of door plates. Crawl type tractor

adopts imported reducer motor and transducer and it’s distinguished by reasonable structure, large

traction force, and stable traction. The cutter is reliable and correct in operation and high in cutting

precision. The loading rack, outfitted with movable loading trolley and special rubber protection layer,

doesn’t damage any materials and is convenient for use.

6.The auxiliary machine unit adopts PLC control or domestic famous control system, reliable and stable.

Applications:

Vacuum forming: food packager; toy box; stationery case; hardware packing

Obstruct packing: for electric components packing

Normal application: folded forming; collar lining; decoration material; file folder; document cover;

Special application: medical instrument;medicine packing; industrial anti-sepsis; roast tray.

Specifications:

Competitive Advantage:

1. CE and UL
2. rich ience engineer
3. competitive price
4. good after service
