PP PET Packing Belt Making Machines / PET PP Strap Band Extruder Machine


Quick detail:

1. Process 100% recycled PET bottle flakes.
Even plasticization and stable extrusion with PC automatic control for the full line.
As per different requirements, changing A coating materials for make strap have better and special function. For example, the strap for packing cotton, can be from enhancing the breaking strength and joint strength when welding strap.
Melt filter with two pistons with air venting design and backflusing.
Number of strap:1,2,4

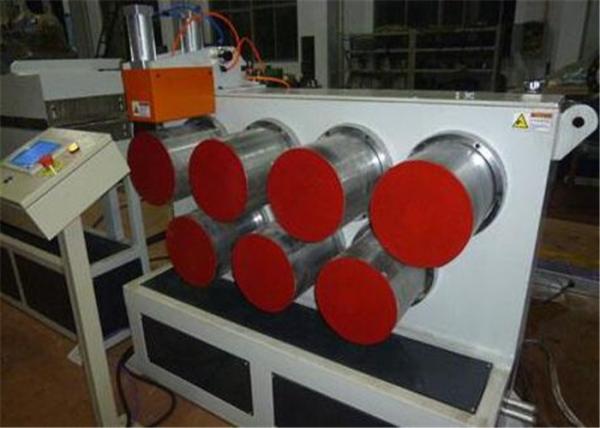

2. Light weight curler is composed of torque motor, band drive, gear drive, band winding spool and travel rod. Different speed ratio is gained through gear, and different products may be winded in. The curler winds the accepted products and separates them as a single piece with specified shape and quality.




Description:

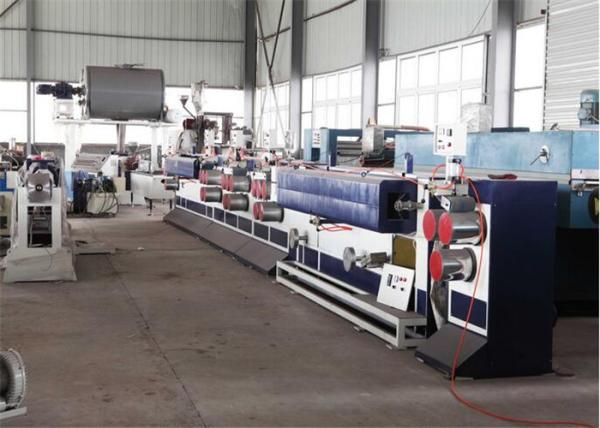

1. With 100% bottle flakes recycled material, to produce various specifications of PET strap. It consists of dehumidifying and crystallizing system, extruder, screen changer, mould, oven, haul-off, and winder, etc.

2. Features:
(1) high tensile strength, both strip-like tensile strength, but also can impact scalability, better ensure transportation safety products.
(2) Small elongation, elongation rate is one-sixth of polypropylene tape, can long maintain the tension.
(3) temperature resistance, melting point of 260 degrees, 120 degrees below the use of deformation.
(4) safety, without risk of pollution rusty steel tied objects, bright colors to be learned.
(5) economic good, one ton PET packaging belt length equivalent to 6 tons with the specifications of the strip length, unit price per meter more than 40% lower than steel, to reduce packaging costs.

3. PP strap making machine
Produce 2 line straps at the same time;
Straps Size: Width: 5mm-19mm
Thickness:0.5mm-1.5mm

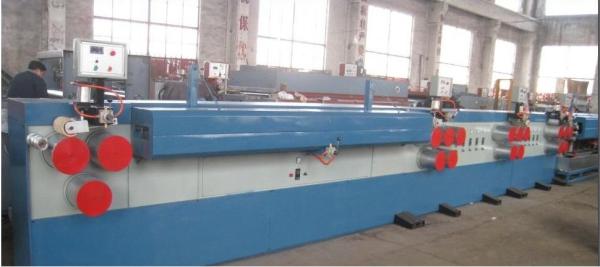

Fully Automatic PP strap making machine/PP strap extrusion line




Specifications:

Technological parameter:

Application :

PET strap, also known as plastic steel band, which is used in place of steel on the world of a new environmentally friendly packaging materials, the development of new materials in recent years the cost of success and a substantial decline, Special twin screw extrusion technology and single screw extrusion technology,can be choose as per customer needs.




Competitive Advantage:

• 24 hours services;
• Overseas installation;
• Free operation training and technology formula transfer;
• Old machine update;
• Spare parts and maintenance with reasonable cost price.
