CE & ISO PVC Foam Board Production Line Double Screw PVC Plastic Board Extrusion Machine
CE & ISO PVC Foam Board Production Line Double Screw PVC Plastic Board Extrusion Machine
CE & ISO PVC Foam Board Production Line Double Screw PVC Plastic Board Extrusion Machine
CE & ISO PVC Foam Board Production Line Double Screw PVC Plastic Board Extrusion Machine
CE & ISO PVC Foam Board Production Line Double Screw PVC Plastic Board Extrusion Machine
CE & ISO PVC Foam Board Production Line Double Screw PVC Plastic Board Extrusion Machine
Specifications
Brand Name :
AORUI
Model Number :
SJSZ92/188
Certification :
CE UL CSA ISO9001
Place of Origin :
China
MOQ :
One set
Price :
Negotiable
Payment Terms :
30% prepaid by T/T , blanced 70% by T/T or L/C before shipping
Supply Ability :
10 Sets per month
Delivery Time :
35 days
Packaging Details :
Fumigation wood, film,pallet,etc or according to customer’s requirement.
Condition :
New
Automatic Grade :
Fully automatic
Screw Number :
Twin Screw
Extruder Model :
SJSZ80/156
Capacity :
380kg/h
Trademark :
AORUI
Main motor :
55kw
Port :
QingDao
Description

CE & ISO Certificate pvc Foam Board Making Machine , PVC Plastic Board Extrusion Line

Quick detail:

1. Product Description

We have three board / sheet extrusion line:

1.Hollow profile board extrusion line

2.sheet / board extrusion line

3.single and multi-layer sheet extrusion line

2. Technological process:

Plastic sheet extrusion machine -----Extrusion line-----Calibration unit-----Haul off unit-----Cutter-----Laminating machine etc.

Description:

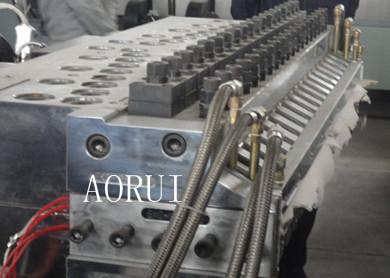

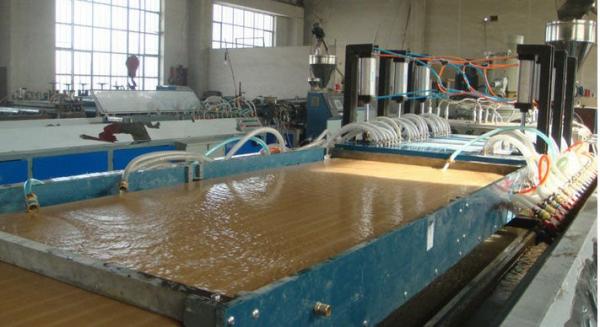

1. PVC skining foaming board not only has much more smooth surface, but also the hardness is better. In additon, mechanics performance of skining foaming board is better than that of free foaming board.PVC skining foaming board extrusion line is composed of conical twin-screw extruder, die, vacuum calibration unit, ten hall-off unit and so on, our company can provide the formula and all the processing techniques.

2. PVC foramed plate is a late-model plate of surface crusting with its core layer under foaming treatment which ensures the smooth surface, light weight and strong indensity, and it can be processed like wood plate. PVC foamed plates are widely used in fields of advertise lettering, construction, decoration, windows and doors of furniture, etc.

Main tech parameters of PVC foam board making machine

model SJSZ45 SJSZ51 SJSZ65 SJSZ80 SJSZ92
screw stem diameter(mm) 45/90 51/105 65/132 80/156 92/188
rotational speed of screw stem(r/min) 1-45 1-45.5 1-38 1-36.9 1-34.7
effective work length of screw stem(mm) 1070 1100 1440 1800 2500
main power (kw) 15 22 37 55 110
cylinder heating power(kw) 9.6 11.5 24 36 88
capacity(kg/h) 70 80 250 360 1000
central height of machine(mm) 1000 1000 1000 1000 1000
Net weight(kg) 28000 3000 4000 5000 5500

Application of pvc foam board production line

1. Wood-plastic mould can be reproduced like wood.It can be cut,planed,madea bond by glue or fastened with nalis or screws.It's easy to maintain.

2. Preserved from acid,alkali,corrosion,impervious to attacks by insects and rats,wood-plastic mould plates provide less moisture absorption.

3. The product can be recycled and degraded for environmental protection

Competitive Advantage:

1) We give you suitable suggestions according to your actual need.
2) Technical support: available lifelong
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
