380V 50HZ Plastic Extrusion Line / PVC Pipe Extruder Machine Agricultural Water Supply Pipe Production
380V 50HZ Plastic Extrusion Line / PVC Pipe Extruder Machine Agricultural Water Supply Pipe Production
380V 50HZ Plastic Extrusion Line / PVC Pipe Extruder Machine Agricultural Water Supply Pipe Production
380V 50HZ Plastic Extrusion Line / PVC Pipe Extruder Machine Agricultural Water Supply Pipe Production
380V 50HZ Plastic Extrusion Line / PVC Pipe Extruder Machine Agricultural Water Supply Pipe Production
380V 50HZ Plastic Extrusion Line / PVC Pipe Extruder Machine Agricultural Water Supply Pipe Production
380V 50HZ Plastic Extrusion Line / PVC Pipe Extruder Machine Agricultural Water Supply Pipe Production
380V 50HZ Plastic Extrusion Line / PVC Pipe Extruder Machine Agricultural Water Supply Pipe Production
Specifications
Brand Name :
Aorui
Model Number :
SJSZ65x132
Certification :
CE UL CSA ISO9001
Place of Origin :
ShanDong China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T L/C
Supply Ability :
10 sets per month
Delivery Time :
30 days
Packaging Details :
Fumigation wood, film,pallet,etc or according to customer’s requirement.
Warranty time :
1 year
Voltage :
380V 50HZ
Place of original :
Shandong , China
Temperature controller :
Omron
Motor :
Siemens
Frequency control :
ABB
After-sales service :
Engineers availiable to service
Description

PVC Pipe Plastic Extrusion Line / PVC Agricultural Water Supply Pipe Production Line / PVC Pipe Extruder Machine

Description:

1. GF series plastic pipe material production line is mainly used in the area of agricultural water supply system, architectural water supply system, pavement of cables,etc. As well as PVC pipe material of all sorts of pipe caliber and wall thickness.

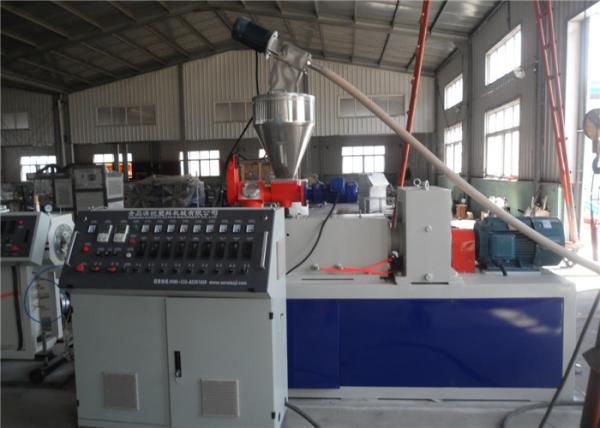

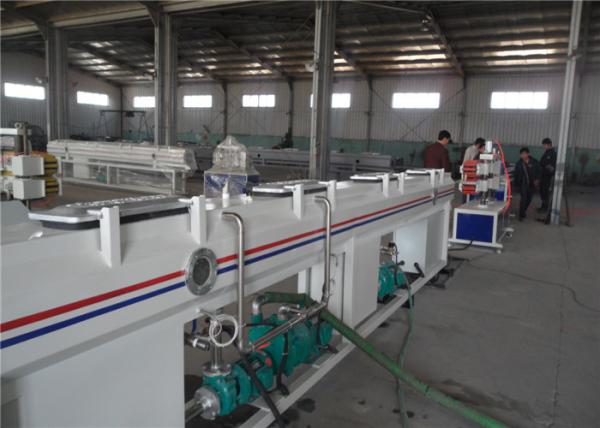

2. This machine group consists mainly of twin conical (Parallel) screw extruder, vacuum calibrating tank, tractor, haul-off unit, cutting unit, tilter, etc.

3. The extrusion line can produce pressure water pipes, drainage pipes, industrial pipes and cables duct. The screw structure for the corresponding designed to meet the processing of high filling material(Caco3) pipe requiement, according to the use of pipe, change molds and the corresponding auxiliary equipment, can be processed produce UPVC pipe,CPVC pipe, PVC-M pipe, PVC-O pipe, foam core layer pipe, foam inside the spiral hollow wall spiral pipe.

Technical parameter

Model Extrusion type Screw diameter
(mm)		 Pipe range
(mm)

Capacity
(kg/h)

 Main motor power
(kw)		 Line length
(m)
GF40 Double-out 51/105 16-40 80-120 18.5 22
GF63 Double-out 65/132 16-63 120-250 37 25

Application:

PVC water pipe production line is applicable to produce water pipe and drain pipe for

agriculture and construction, underground installation pipe for wire and cable, as well as various kind of diameter and wall thickness pipes.

Feature and advantage of PVC water pipe production line:

1.CE&ISO certificate
2.Diameter:16mm-800mm
3.Conical double screw
4.Output: 100-800kg/hr

5.Applicable:water pipe /drain pipe for agriculture and construction ,gas pipe , etc.
