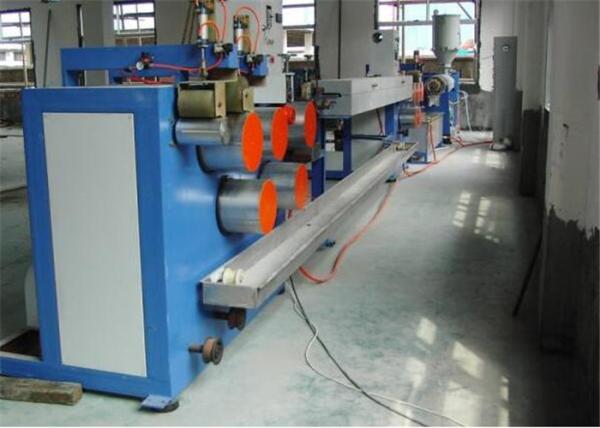

PET Packing Belt , Drawbench Making Machine , PET Packing Strap Band Extrusion Line

Quick detail:

1. PET Strap Bandf Production Specification:
Processing material: 100% recycled PET flakes or virgin PET (I. V ≥ 0.65)
Product width: 9-25mm
Strap thickness: 0.5-1.3mm
Quantity of extruded straps band: 4straps/ 2 straps/1 straps
Max output: 200kg/hr
Max Liner speed: 120m/min × 2
Power supply: 380V/3P/50Hz
Installed power: 280KW (production power: About 130KW )
Operators: 2-3

2. Pet Strapping Band Extrusion Machine
100% recycle PET bottle flakes.
The max speed is 120m/min.
Single-screw extruder.
Voltage: 380V, 440V, 220V.

Description:

1. Production process:
Material loading---extruding--water cooling--hauling off---heating---hauling off---embossing---calibrating---hauling off---winding

Main machines:
Screw extruder--Die head and mould(two strips)---Cooling water tank---First haul-off---Thermal oven---Second haul-off---Embosser---calibrating---haul off-winder

2. Single screw or tein screw technical for option depending on the requirement. 100% recycled flakes can be used for production. Even plasticization and stable extrusion with PC automatic control for the full line, the dosing pump ensures continuous and stable production. The filter of double coulmns with four working positions can get rid of impurity effectively. Single strap or double strap for option.

Technological parameter:

Application :

PET packing strap is widely used, replaced for steel strap for packing application internationally, because of its good tensile strength, flexible, low prolongation rate, good performance of high temperature resistant, non-rustiness, and low use-cost, etc, it is used in steel, construction material, chemical fiber, paper making, tobacco, agriculture, election, etc.

Competitive Advantage:

1. Offering high quality products with competirive prices.

2. Working with experienced forwarder for safe shipping.

3. Trust-worthy after-sale service.

4. 100% Satisfy your needs with professional staff.
