Specifications
Brand Name :
AORUI
Model Number :
SJSZ65X132
Certification :
CE Certificate
Place of Origin :
China
MOQ :
1 set
Price :
USD
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10 SETS PER MONTH
Delivery Time :
35 Days
Packaging Details :
Regular package
Automatic grade :
Fully automatic
Brand name :
AORUI
Port of lading :
Qingdao Port
Screw design :
Double screw
After-sales service :
Engineer availiable to go abroad
Control system :
PLC
Plastic processed :
PVC resin
Motor Brand :
ABB
Description

Stable PVC Pipe Extrusion Line,16-63mm Twin-Screw Extruder with 37kw Motor

PVC Two Cavity Water Supply Pipes Making Machine Description:

1.PVC pipe extrusion machine line is mainly used in the manufacture of plastic PVC pipes with various diameters and wall thickness used in the industries such as agricultural and constructional plumbing, cable laying etc.

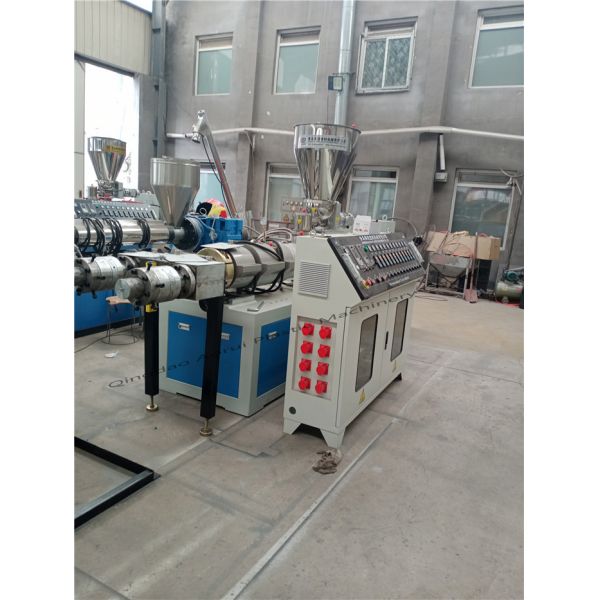

2.This line is composed of conical twin screw extruder, Vacuum calibration tank, haul off, motors, cutter and stacker etc.

3.According to the requirements of different diameters, different wall thicknesses and different output of pipes, we have many models of special twin screw extruders to choose from. It adopts a specially designed screw structure, which can evenly heat, plasticize PVC powder and extrude pipes .

4.The mould is made of high-quality alloy steel, the internal flow channel is chrome-plated and highly polished, which is wear-resistant and corrosion-resistant; With the special sizing sleeve, the product production speed is hight and the surface of the pipe is good.

(1) Material: 40GR
(2) Size: Customized
PVC Pipe Extruder Line 20mm - 110mm PVC Pipe Extrusion Line Can Customize

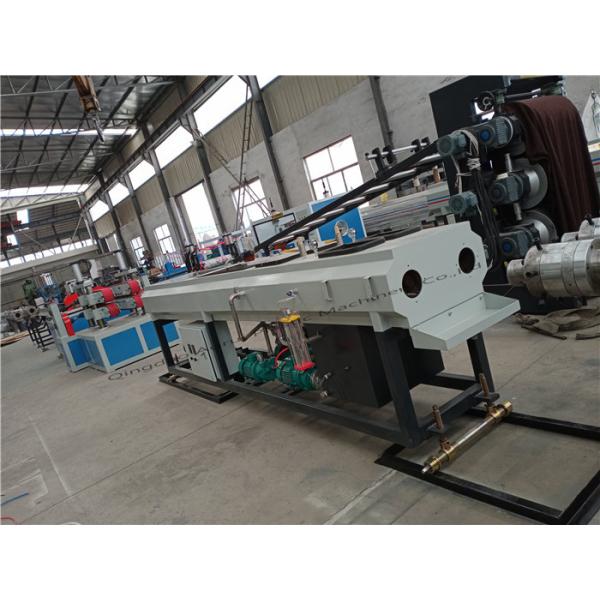

5.The calibrating and cooling tank can calibrate and cool the PVC pipe from the mould.
(1) Vacuum pump power : 4 kw
(2) Water pump power: 2.2 kw*2
(3) Spray cooling: ABS nozzle; Stainless steel pipe
(4) Stainless steel material: 1Cr18NiTi
(5) Diameter of tank : Customized
(6) Length of tank: 6 m
PVC Pipe Extruder Line 20mm - 110mm PVC Pipe Extrusion Line Can Customize
5.The haul-off machine can transport PVC pipe to cutting machine.
(1) Hauling power: 1.5 kw
(2) Clamping style: Pneumatic clamping
(3) Transducer: Siemens transducer
(4) Hauling track type: Plastic block
(5) Effective clamping length 1800 mm
PVC Pipe Extruder Line 20mm - 110mm PVC Pipe Extrusion Line Can Customize
6.The special cutting machine for PVC pipe adopts rotary clamping device, is suitable for different pipe diameters, avoids the trouble of frequently changing clamping device.
(1) Cutting motor power: 1.5 kw
(2) Cutting scope: Customized
(3) Control means: Pneumatic control
PVC Pipe Extruder Line 20mm - 110mm PVC Pipe Extrusion Line Can Customize

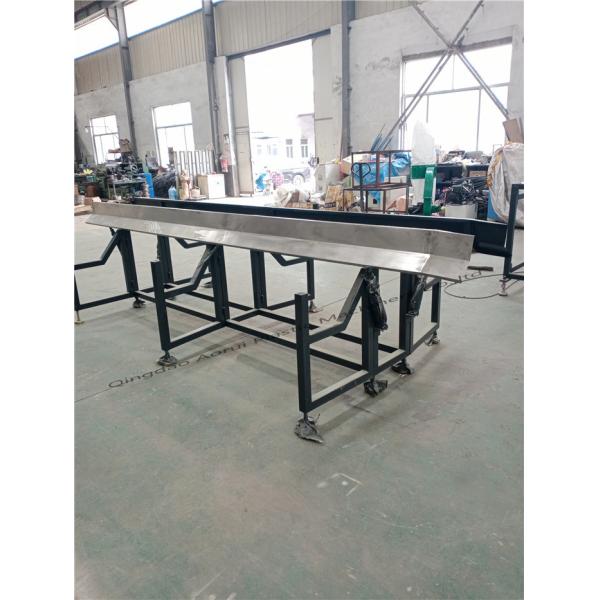

7.Stacker

It is used to hold pipes and can unload pipes automatically.

(1) Length: 6000 mm
(2) Material: Stainless steel
(3) Unloading method: Pneumatic unloading
PVC Pipe Extruder Line 20mm - 110mm PVC Pipe Extrusion Line Can Customize

Technical parameters:

Pipe range(mm) Screw diameter(mm) Capacity(Kg/h) Main motor power(kw) line length(m)
16-40 51/105 80-120 18.5 22
16-63 65/132 120-250 37 25

Machine display:

PVC Pipe Extruder Line 20mm - 110mm PVC Pipe Extrusion Line Can Customize


Tag: PVC Double Pipe Installtion PVC Pipe advantages PVC Pipe Dimenstions
