380V 50HZ Wood Plastic Composite Machine , PVC Profile Pannel Extrusion Line
380V 50HZ Wood Plastic Composite Machine , PVC Profile Pannel Extrusion Line
380V 50HZ Wood Plastic Composite Machine , PVC Profile Pannel Extrusion Line
380V 50HZ Wood Plastic Composite Machine , PVC Profile Pannel Extrusion Line
380V 50HZ Wood Plastic Composite Machine , PVC Profile Pannel Extrusion Line
380V 50HZ Wood Plastic Composite Machine , PVC Profile Pannel Extrusion Line
380V 50HZ Wood Plastic Composite Machine , PVC Profile Pannel Extrusion Line
380V 50HZ Wood Plastic Composite Machine , PVC Profile Pannel Extrusion Line
Specifications
Brand Name :
AORUI
Model Number :
SJSZ65/132
Certification :
CE UL CSA ISO9001
Place of Origin :
ShanDong China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T L/C
Supply Ability :
10 sets per quarter
Delivery Time :
30 days
Packaging Details :
Fumigation wood, film,pallet,etc or according to customer’s requirement.
Motor brand :
Siemens
Temperature controller :
Omron
Contactor :
Siemens
Raw material :
PVC
Processing type :
Extruding machine
Place of original :
Qingdao, China
Voltage :
380V 50HZ or according to customer's requirement
Description

Wood Plastic Composite Machine , PVC Profile Pannel Extrusion Line

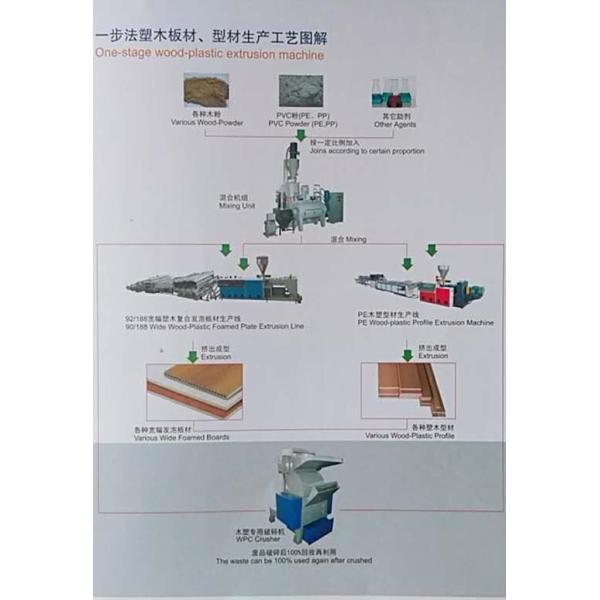

Description of pvc profile production line:

1. The features of profile machine:

even plastication and agglomeration, reliable quality, wide application range,

long servicing life and direct conversion of powder into plastic products.

Equipped with our company's different mould tools down stream equipment, they can directly produce plastic products like pipers,

rods, plates and profiles.

2. Plastic such as PVC, PP or PE and wooden powder or chaff can be processed into ecologically clean wood plastic composite materials. Products made of such material are now widely used for trails, runners, tables and chairs outside, office furniture, pallets, decoration material, logistics applliance, packing materials and etc., featuring non-corrosion, no-color fading, no-chapping and flame retardant.

3. Wood plastic profile extrusion lines adopt special design screw & barrel, die head and processing technique for wood plastic products Series products including: one step wood plastic thick plate equipment, one step wood plastic profile equipment, one step wood plastic decorative material equipment, wood plastic granulation equipment, all sorts of wood plastic die head.

Technical Parameters:

Type YF180 YF240 YF600 YF800
table length 4000mm 6000mm 6000mm 6000mm
Max drawing Force 20 30 40 40
hauling rubber Width/mm 180 240 600 800
Valid Length of catapilar /mm 1600 1800 2250 2500
Water Consumption/ m3h-1 2.5 4 5 6
Gas Consumption /m3h-1 8 10 12 15
Total Power/KW 24.3 27 27 34.7
Appearance Dimension 18*2*2.8 20*2*2.8 24*2.2*3 28*2.6*3.5


Application:

Equipped with the appropriate mold, it is able to satisfy the need of wood-plastic profile production. The series production lines are mated with extruders produced by our company, reaching perfect match with the auxiliary devices and dies.

Our pvc machine advantages:

With the merits of strong plasticizing ability, low power, high yield, high cost performance, long life, etc., it is the preferred device for the processing of wood-plastic products.

380V 50HZ Wood Plastic Composite Machine , PVC Profile Pannel Extrusion Line

380V 50HZ Wood Plastic Composite Machine , PVC Profile Pannel Extrusion Line
