Fully Automatic Plastic Tubing Extrusion Machines / PVC Pipe Making Machine
Fully Automatic Plastic Tubing Extrusion Machines / PVC Pipe Making Machine
Fully Automatic Plastic Tubing Extrusion Machines / PVC Pipe Making Machine
Fully Automatic Plastic Tubing Extrusion Machines / PVC Pipe Making Machine
Fully Automatic Plastic Tubing Extrusion Machines / PVC Pipe Making Machine
Fully Automatic Plastic Tubing Extrusion Machines / PVC Pipe Making Machine
Specifications
Brand Name :
AORUI
Model Number :
SJSZ51/105
Certification :
CE&ISO9001
Place of Origin :
ShanDong China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
TT or L/C
Supply Ability :
30 sets per quarter
Delivery Time :
30 days
Packaging Details :
Fumigation wood, film,pallet,etc or according to customer’s requirement.
Port of shipment :
Qingdao
Type :
pvc pipe machine
Automatic grade :
Fully automatic
Pipe range :
16-63mm
Condition :
New
Warranty time :
1 year
Voltage :
380V 50HZ
Description

Plastic Twin Pipe Extrusion Line , PVC Double Pipe Production Line , PVC Pipe Machinery

Quick detail:

1.PVC suction house production line

Doble(twin)-screw extruder with high speed and capacity

ABB inverter frequency,OMRON temperatuer control.

2. GF series plastic pipe production line is mainly used in manufacture of the plastic PVC pipes with tube diameters and wall thickness, which are used for water supply and drainage in the field of agriculture and construction.

Description:

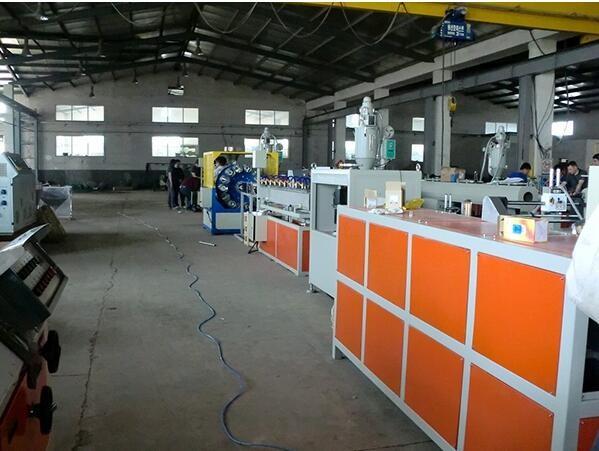

1. This line consists of PVC conical twin-screw extruder, vacuum calibration tank, traction machine, cutting machine and stacker.

2. The extruder and the extractor adopt the imported AC variable frequency speed regulating device, the vacuum pump and traction motor both adopts high quality products.

3. We can configure the special production spiral silencing pipe machine and the core layer foam pipe based on customer’s demand. This production line is mainly used in producing U-PVC pipe, C-PVC pipe, PVC pipe and large diameter water supply or drainage pipe.

4. The extrusion line can produce pressure water pipes, drainage pipes, industrial pipes and cables duct. The screw structure for the corresponding designed to meet the processing of high filling material(Caco3) pipe requiement, according to the use of pipe, change molds and the corresponding auxiliary equipment, can be processed produce UPVC pipe,CPVC pipe, PVC-M pipe, PVC-O pipe, foam core layer pipe, foam inside the spiral hollow wall spiral pipe.

Main Technical Parameters of PVC Twin Pipe Production Line:

Diameter scope (mm) 16-40 Dual 20-63 Dual 20-63 50-160 63-200 160-315 315-630 560-800
Conical extruder SJZ51/105 SJZ65/132 SJZ51/105 SJZ65/132 SJZ65/132 SJZ80/156 SJZ92/188 SJZ105/216
Extruder Power(KW) 18.5 AC 37 AC 18.5 AC 37 AC 37 AC 55 AC 110 DC 160 DC
Max. capacity (KG) 120 250 120 250 250 350 800 1100
Max. Lineal speed (m/min..) 10 15 15 8 3.5 3 1.2 1.3

Application:

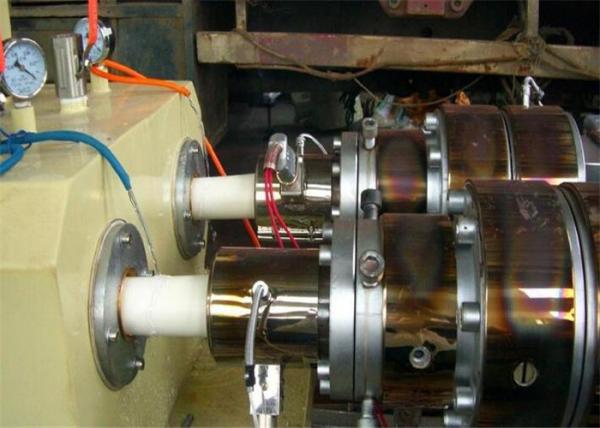

Mainly used to produce pvc pipe. This machine can produce twin pvc pipe at the same time.

Our Services

1.Free repair within 1 year of guarantee on the condition of operate the machine in the right way, do not include the daily maintaining

2. Our factory provide machine testing when customer come to our factory to see this machine.

3.We provide detail machine technical specification, electric diagram, installation book, operating manual, drawings.

4.We can provide engineers to customer's factory to help installation and training workers if customer required.
