Hot Stamping Plastic Profile Extrusion Line 300mm Width PVC Profile Extruder
Hot Stamping Plastic Profile Extrusion Line 300mm Width PVC Profile Extruder
Hot Stamping Plastic Profile Extrusion Line 300mm Width PVC Profile Extruder
Hot Stamping Plastic Profile Extrusion Line 300mm Width PVC Profile Extruder
Hot Stamping Plastic Profile Extrusion Line 300mm Width PVC Profile Extruder
Hot Stamping Plastic Profile Extrusion Line 300mm Width PVC Profile Extruder
Specifications
Brand Name :
AORUI
Model Number :
SJSJ65x132
Certification :
CE Certificate
Place of Origin :
ShanDong China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T L/C
Supply Ability :
10 sets per quarter
Delivery Time :
30 days
Packaging Details :
Fumigation wood, film,pallet,etc or according to customer’s requirement.
Condition :
New
Plastic Processed :
PVC WPC
Screw Design :
Double screw
Screw material :
38Cr Moaia
Voltage :
380V 50HZ
Warranty time :
1 year
Machine name :
Plastic profile machine
Place of original :
China
Automatic grade :
Fully automatic
Description

Plastic Profile Extrusion Line , PVC Profile Extruder , Window Profile Production Line

Description of pvc profile extrusion line:

1. Specified screw design for profile gets better plasticizing and more stable extrusion;
2. High-speed cooling forming die supports the production line with faster linear speed and higher efficiency;
3. Upper and lower belt is driven by the separate motor, which ensures stability and reliability of hauling;
4. Calibration table is adjustable by fore-back, left-right, up-down which brings simplified and convenient operation;
5. Saw cutting unit brings speedy and stable cutting with smooth incision; as to wide width board;
6. We also offer hauling and cutting combined unit which is a more compact and economical design.

7. The production line includes screw feeder, plastic extruder, mould, vacuum forming table, haul off unit, cutting machine, stacker.Auxiliary equipments: mixer, crusher, pulverizer, lamination machine, hot stamping machine, printer and so on.
Features: High filing material, even plasticizing, lower percentage of additive material are needed, stable production, and easy operation.

Technical parameter of pvc profile making machine:

Extruder model SJZ65/132 SJZ80/156
Motor power 37 55
Screw diameter 65/132 80/156
Screw rotation speed 34.7 34.7
Output capacity(PVC) 150-250 250-400


Technical data for downstream machine:

Downstream machine type YF-300 YF-400 YF-600
Max. profile width 300 400 600
Total power 15 18 28

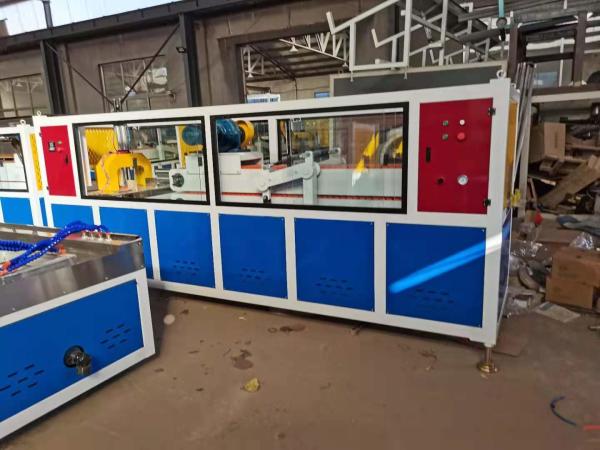

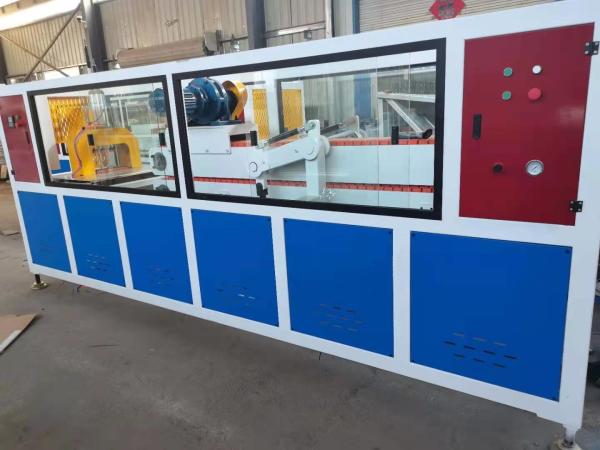

Machine dispaly:

Hot Stamping Plastic Profile Extrusion Line 300mm Width PVC Profile ExtruderHot Stamping Plastic Profile Extrusion Line 300mm Width PVC Profile Extruder
