200V-50/60HZ N95 Disposable Mask Machine 3 Layer PP Nonwoven ISO CE Approval

Flat Disposable Mask Machine System with 3 layer PP Nonwoven Blue Color CE Approved

Equipment instruction:

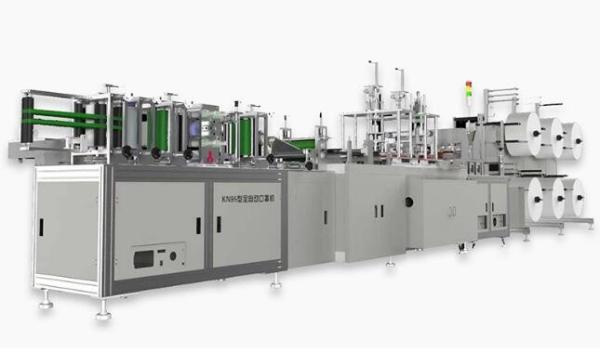

QA-KZJF is mainly used for automatic forming of flat face mask: the whole roll of cloth is driven by the roller after unwinding, and the cloth is automatically folded and wrapped; the nose beam is pulled and uncoiled by the whole roll, cut at a fixed length and then imported into the wrapped cloth, and the two sides are welded to the seal through ultrasonic welding, and then sealed laterally by ultrasonic, and then cut and formed by the cutter; the mask is transported to the two ear belts of the mask through the assembly line for welding In the working position, the final mask is formed by ultrasonic welding; when the mask is made, it is transported to the flat belt line through the assembly line for collection.

Equipment installation and configuration requirements

(1) Equipment size: 6800mm (L) × 3800mm (W) × 2000mm (H);

(2) Appearance color: international standard titanium warm gray 1C, if there is no special instructions, follow this standard;

(3) Equipment weight: ≤ 5000kg, ground bearing ≤ 500kg / m2;

(4) Working power supply: equipment 220VAC ± 5%, 50Hz, rated power about 9kw;

(5) Compressed air: 0.5-0.7mpa, with a flow rate of about 300L / min;

(6) Operating environment: temperature 10-35 ℃, humidity 5-35% HR, no combustible, corrosive gas, no dust (cleanliness no less than 100000).

System Construction

Suitable Raw Materials

FAQ

1. Q: Can you provide overseas services?

A: Engineers who can serve overseas.

2. Q: How to use the machine?

A: Before sending the packaging machine to you, we will install it and test it, and then pack the whole device in a wooden box, so you do n’t need to install it again,

3. Q: Test packaging Before shipment?

A: we will surely 100% of the experimental test machine will be normal without problems.

4. Q: What is the warranty period?

A: One year warranty for the whole machine.

5. Q: What is the payment term?

A: Accept L / C or TT.

6. Q: What is the delivery time?

A: 15-20 days after receiving the deposit. Contact: 7 * 24 hours online service If you need to pack other materials / products or have any questions about the packaging machine, please feel free to email me or call us.
