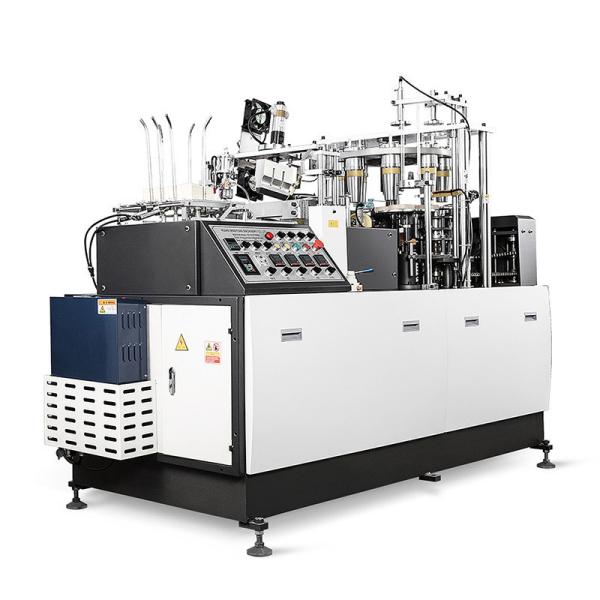

Edible Coffee Cup Paper Cup Manufacturing Machine Paper Cup Cutting Machine
Edible Coffee Cup Paper Cup Manufacturing Machine Paper Cup Cutting Machine
Edible Coffee Cup Paper Cup Manufacturing Machine Paper Cup Cutting Machine
Edible Coffee Cup Paper Cup Manufacturing Machine Paper Cup Cutting Machine
Edible Coffee Cup Paper Cup Manufacturing Machine Paper Cup Cutting Machine
Edible Coffee Cup Paper Cup Manufacturing Machine Paper Cup Cutting Machine
Specifications
Brand Name :
Desu
Place of Origin :
Guangdong, China
MOQ :
1 set
Price :
$30,000.00/Pieces 1-9 Pieces
Packaging Details :
Wooden packing
Model :
High Speed Intelligence Model Paper Cup Machine JBZ-OCM12
Paper Cup Size :
2~16 OZ(Mould exchangeable,Max Cup Height: 136mm,Max Bottom width: 76mm
Rated Speed :
75-85pcs/min (Speed affected by cup size,paper quality & thickness)9OZ,280GSM paper cup Stable running speed 80 pcs each min.
Raw Material :
One or Two side PE coated Paper(Popular for Hot and Cold drink Cups)
Power Source: :
50/60HZ,380V/220V(better use 380V,3 Phase)or special Power requirement.
Cup Bottom Knurling :
Heater Knurling(ifuse single PE coated paper)
Description

edible coffee cup machine machine cup paper cup manufacturing machine paper cup cutting machineEdible Coffee Cup Paper Cup Manufacturing Machine Paper Cup Cutting Machine

Machine model: high-speed simple paper cup machine
Backside Soldering : Copper Heater Ultrasonic Heater

Raw material : single side PE coated paper (popular hot drink cup) single/double PE coated paper (popular hot drink cup and cold drink cup)
Total weight : Gw /NW:1750 kgs/1650 KgS.
Working air source (ultrasonic): Air pressure 0.4MPa a. machine.
Cup bottom heating: heater knurling (single-sided PE paper is heated and knurled; double-sided PE paper is knurled with cooling device circular water.)
Bottom knurling: heat knurling (if using single layer PE coated paper)

Edible Coffee Cup Paper Cup Manufacturing Machine Paper Cup Cutting Machine
Edible Coffee Cup Paper Cup Manufacturing Machine Paper Cup Cutting Machine

Edible Coffee Cup Paper Cup Manufacturing Machine Paper Cup Cutting Machine

Electric System:

High-quality brand electrical systems, such as Delta, Schneider.
The PLC control system adopts the Delta brand, which is made in Taiwan and is reliable.
quality.

Edible Coffee Cup Paper Cup Manufacturing Machine Paper Cup Cutting MachineEdible Coffee Cup Paper Cup Manufacturing Machine Paper Cup Cutting Machine

Servo Motor:

The bttom paper feeding is controlled by servo motor and stepping motor,which greatly improve paper feeding in high precision and
high efiency way.(more stable ,less troubles and save bottom paper)
Edible Coffee Cup Paper Cup Manufacturing Machine Paper Cup Cutting Machine

Paper size :

2~16 oz (replaceable die, max cup height 136mm, max bottom width 76mm.)

Rated speed:

70-80 per minute (the speed is affected by the size of the paper cup, paper quality and thickness), the running speed is stable, 75 per minute

Paper material:

140-250 GSM.140~350gsm.

Power requirements:

 50/60 Hz.380V/220V (preferably use 380V, 3Phase) or special power requirements

Total power :

6.5 kw, 7.5 kw.
Total weight : Gw /NW:1750 kgs/1650 Kgs.


Edible Coffee Cup Paper Cup Manufacturing Machine Paper Cup Cutting Machine
