edible coffee cup making machine boba cup sealing machine machine cup paper cardboard cup making machine
Machine model: high-speed simple paper cup machine
Backside Soldering : Copper Heater Ultrasonic Heater
Raw material : single side PE coated paper (popular hot drink cup) single/double PE coated paper (popular hot drink cup and cold drink cup)
Total weight : Gw /NW:1750 kgs/1650 KgS.
Working air source (ultrasonic): Air pressure 0.4MPa a. machine.
Cup bottom heating: heater knurling (single-sided PE paper is heated and knurled; double-sided PE paper is knurled with cooling device circular water.)
Bottom knurling: heat knurling (if using single layer PE coated paper)
Electric System:
High-quality brand electrical systems, such as Delta, Schneider.
The PLC control system adopts the Delta brand, which is made in Taiwan and is reliable.
quality.
Servo Motor:
The bttom paper feeding is controlled by servo motor and stepping motor,which greatly improve paper feeding in high precision and
high efiency way.(more stable ,less troubles and save bottom paper)
Paper size : | 2~16 oz (replaceable die, max cup height 136mm, max bottom width 76mm.) |
Rated speed: | 70-80 per minute (the speed is affected by the size of the paper cup, paper quality and thickness), the running speed is stable, 75 per minute |
Paper material: | 140-250 GSM.140~350gsm. |
Power requirements: | 50/60 Hz.380V/220V (preferably use 380V, 3Phase) or special power requirements |
Total power : | 6.5 kw, 7.5 kw. |
Total weight : | Gw /NW:1750 kgs/1650 Kgs. |
Excerpted from the Internet, for reference only
second hand paper cup making machine

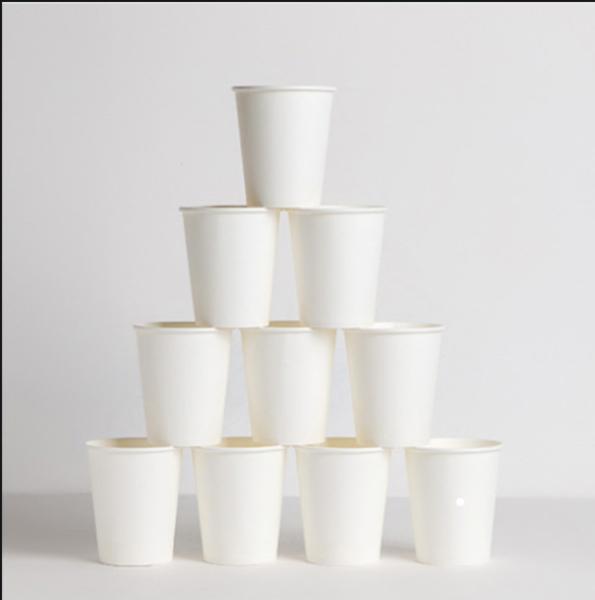

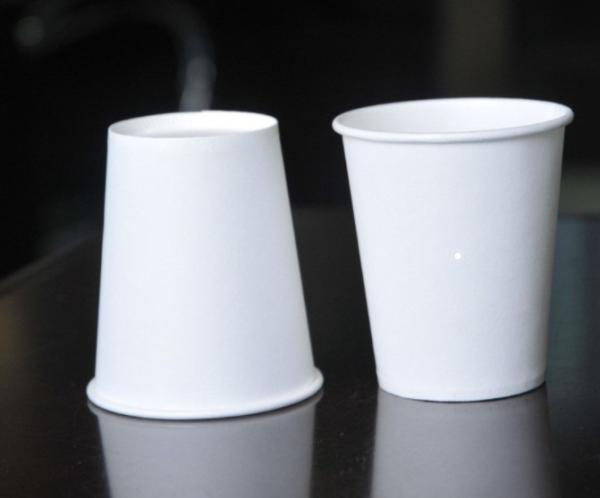

Paper cups are divided into single-sided PE coated paper cups and double-sided PE coated paper cups
Single side PE coated paper cup: the paper cup produced with single side PE coated paper is called single PE paper cup (the common market paper cup in China, and most advertising paper cups are single side PE coated paper cups), and its manifestation is: the side of the paper cup containing water has a smooth PE coating;
Double sided PE coated paper cup: the paper cup produced with double sided PE coated paper is called double sided PE paper cup, which is expressed in the form that both the inside and outside of the paper cup are coated with PE film
Paper cup size: We measure the size of paper cups in ounces (OZ), such as the common 9 ounce, 6.5 ounce, and 7 ounce paper cups in the market
Ounces (OZ): An ounce is a weight unit. Here, it represents that the weight of an ounce is equivalent to the weight of 28.34 milliliters of water. It can be expressed as follows: 1 ounce (OZ)=28.34 milliliters (ml)=28.34 grams (g)
Paper cup: In China, we call a 3 - to 18 ounce (OZ) cup paper cup.
