Fully Auto 10KW Elastic Band Positioning Mask Machine 180Pcs Per Min
Fully Auto 10KW Elastic Band Positioning Mask Machine 180Pcs Per Min
Specifications
Brand Name :
Win
Model Number :
Disposable mask machine
Place of Origin :
Guangdong, China
Certification :
ce
Packaging Details :
Pack the wooden box after vacuum packing
Supply Ability :
150 Set/Sets per Month
Price :
$18,000.00/Sets 1-4 Sets
Applicable Industries :
Manufacturing Plant
After Warranty Service :
Field maintenance and repair service, Online support, Spare parts, Video technical support
Local Service Location :
South Korea
Showroom Location :
South Korea
Condition :
New
Automatic Grade :
Full-automatic
Voltage :
220V
Power :
220V, 50HZ, rated power about 10KW
Dimension(L*W*H) :
4200mm*1900mm*1400mm
Weight :
800KG
Warranty :
1 Year
Year :
2020
After-sales Service Provided :
Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support, Video technical support
Production Capacity :
150 pcs/min
Key Selling Points :
Easy to Operate
Mask types :
Flat
Mask Material :
Non-woven Fabrics
Appearance color :
according to the factory standard
Equipment weight :
800kg, ground bearing ≤ 500kg / m2
Working power supply :
220 V, 50 Hz, rated power about 10 kW
Compressed air :
0.5-0.7 MPa, the flow rate is about 300 L / min
Operating environment :
temperature 10 ~ 35 ℃
Number of servos :
14
Delivery date :
Spot delivery
Yachao ultrasonic :
18K,2600W
Multilingual system :
Customizable
High speed point earphone box :
PLC control
Port :
Shenzhen port, Qingdao port
Description

Fully Auto 10KW Elastic Band Positioning Mask Machine 180Pcs Per Min

High-speed 11-servo, 3-step-one-to-one mask machine production line-production efficiency is 150~180PCS/Min

in one minute According to the actual consulting customer service to understand the relevant configuration, the online price is the reference price. It's not the actual transaction price. According to your different needs, we will recommend the most suitable machine for you. At present, there are after-sales door-to-door installation in South Korea and Turkey. After sales service centers in other regions are opening one after another. If your demand is large, our company can arrange people to go to the local installation and teaching. If there are no customers in the after-sales area, we will provide remote online guidance. Thank you for your support and understanding.

Fully Auto 10KW Elastic Band Positioning Mask Machine 180Pcs Per Min
Fully Auto 10KW Elastic Band Positioning Mask Machine 180Pcs Per Min
Positioning one for one mask machine
This machine is mainly used for the automatic forming of flat masks: the whole roll of fabric is driven by the roller after unwinding, the fabric is automatically folded and hemmed, the nose bridge is pulled and unrolled in the whole roll, and cut to a fixed length and then imported into the hemmed fabric, both sides The mask is welded to the seal by ultrasonic, and then sealed by the ultrasonic side, and cut into shape by a cutter; the mask is conveyed to the two mask earband welding stations through the assembly line, and the mask is finally formed by ultrasonic welding; when the mask is made, pass The pipeline is transported to the flat belt line for collection. This model features stable structure, low failure rate, and simple maintenance. All actions are controlled by servos. It is a real tool for stable production of masks. It is one of the most stable models on the market with the highest return rate. One. The positioning film machine is controlled by two ultrasonic waves and five servo motors (750W), 125*95, 145*95, 175*95. 125*90, 145*90, 175*90 can be switched at will, and the whole process is computer controlled. Changed the traditional correcting screw mode.Fully Auto 10KW Elastic Band Positioning Mask Machine 180Pcs Per Min
Fully Auto 10KW Elastic Band Positioning Mask Machine 180Pcs Per Min

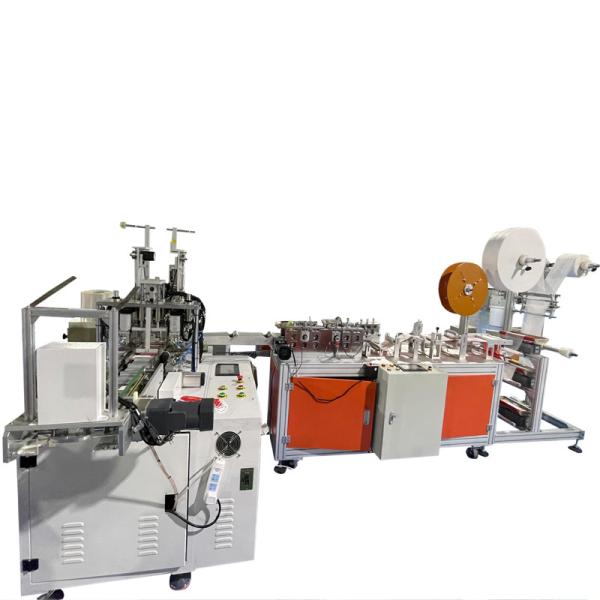

Machine appearance display diagram
The working principle of the equipment: This machine is mainly used for the automatic forming of flat masks: the whole roll of
fabric is driven by the roller after being unrolled, and the fabric is automatically folded and hemmed; the whole roll of the nose
bridge is unrolled, cut to length and imported into the hemmed fabric, both sides The mask is welded to the seal by ultrasonic,
and then sealed by the ultrasonic side, and cut into shape by a cutter; the mask is conveyed to the two mask earband welding
stations through the assembly line, and the mask is finally formed by ultrasonic welding; when the mask is made, pass The pipeline
is transported to the flat belt line for collection.
Fully Auto 10KW Elastic Band Positioning Mask Machine 180Pcs Per Min
Mask finished picture
(High-speed 11-servo 3-step-one-to-one mask machine production line-production efficiency is 150~180PCS/Min in one minute)
Fully Auto 10KW Elastic Band Positioning Mask Machine 180Pcs Per Min
Detailed explanation of the front of the high-speed point headset:
1The pull ear wire adopts two stepping motors. 2.The scissors are driven by two small servo motors (closed-loop motors), instead of the original pneumatic scissors, and solve the problem of constant cutting due to unstable air pressure. 3.The thread clamping is controlled by 4 400W servo motors, two on each side. 4.The wire drawing is controlled by two 400W servo motors, and the left and right drawing wires are controlled by independent servo motors. The original single servo motor + coupling scheme is abandoned, and the stability is further improved.
Fully Auto 10KW Elastic Band Positioning Mask Machine 180Pcs Per Min
Control panel and point earphone electrical box
Multi-language system (switching between Chinese, English and Korean)
High-speed point earphone box: PLC control
Fully Auto 10KW Elastic Band Positioning Mask Machine 180Pcs Per Min
Configuration of filming machine and earband machine
The standard filming machine adopts Yachao ultrasonic, which is stable and reliable, 18K, 2600W, and the standard earband machine 20K, 2000W ultrasonic
A total of 11 servo + 3 stepper motors are used for high-speed point earphones
Company Profile
Fully Auto 10KW Elastic Band Positioning Mask Machine 180Pcs Per Min
Name Model Number+ brand Quantity (sets)
PLC touch screen Dongling / Sinjie 1
Servo - motor 400W Dongling / Sinjie 6
Servo - motor 700W Dongling / Sinjie 3
Servo - motor 1000W Dongling / Sinjie 2
Cylinder Yadek 9
Stepper electric motor 80W Reser 3
High - power deceleration motor 750w Ding Yi 1
Speed - regulating motor 90W Day matching 2
Silent air fan 120W Zhe imu 2
Fully Auto 10KW Elastic Band Positioning Mask Machine 180Pcs Per Min
Fully Auto 10KW Elastic Band Positioning Mask Machine 180Pcs Per Min
Fully Auto 10KW Elastic Band Positioning Mask Machine 180Pcs Per Min

Exhibition photos

Fully Auto 10KW Elastic Band Positioning Mask Machine 180Pcs Per Min

Exhibition photos

Fully Auto 10KW Elastic Band Positioning Mask Machine 180Pcs Per Min

Exhibition photos

Fully Auto 10KW Elastic Band Positioning Mask Machine 180Pcs Per Min
Company Profile
Shenzhen Chuangying Times Technology Co., Ltd. is a national high-tech enterprise focusing on the research and development of
automation systems and the production of automation equipment. The company was established in 2017 and won the honorary
certificate of AAA-level enterprise, famous Chinese brand, quality inspection, national standard qualified product in 2019. The
main products are mask machines and non-standard automation equipment. We have been committed to the export business of mask
machines. The company is located in Dongguan, with a factory area of about 12,000 square meters and 122 employees.Chuangying
currently mainly produces mask machine types: KF94 mask machine, flat mask machine, inner ear edging mask machine, long ear mask
machine, duckbill mask machine, KN95 mask machine, mask machine, non-standard customized various Shaped mask machine.Types of
packaging machines: single-row packaging machines, pillow-type servo packaging machines, double-row packaging machines,bag-feeding
packaging machines, four-side sealing packaging machines, automatic cartoning machines and other special packaging models.
The company has obtained more than 20 kinds of national new patents and software copyrights, which are in full compliance with
export standards. Chuangying has complete processing equipment and efficient technical team; with its deep technical development
strength, complete product guarantee system, sincere pre-sales advice and perfect after-sales service, it integratesdomestic and
foreign electromechanical control technology into one. One of the automation service providers in the mask machine industry,home
appliance industry, and sensor industry provides a strong backing for the high-efficiency, high-quality, and high-precision
development of the machinery industry.
Fully Auto 10KW Elastic Band Positioning Mask Machine 180Pcs Per Min

Falt mask machine production workshop

Kf94 mask machine production workshop
Fully Auto 10KW Elastic Band Positioning Mask Machine 180Pcs Per Min

Kn95 mask machine production workshop

kf94 high-speed mask machine production workshop
Fully Auto 10KW Elastic Band Positioning Mask Machine 180Pcs Per Min

Four-side sealing packaging machine production workshopTo bag packaging machine production workshop

Fully Auto 10KW Elastic Band Positioning Mask Machine 180Pcs Per Min

To bag packaging machine production workshop

Fully Auto 10KW Elastic Band Positioning Mask Machine 180Pcs Per Min
Vacuum packaging shipping pictures
You are welcome to email or call for advice. Our company will serve you wholeheartedly. Honesty and pragmatism, innovation and
preciseness, quality first and service second are our company's business philosophy. I hope the epidemic situation in South Korea
and the world will end as soon as possible. I hope we can work together for win-win results

FAQ

1. How long is the delivery time?
The general situation is 3-5 days for delivery. If you need a customized mask shape, it will take 7-10 days. Please refer to
customer service for details.
2. The machine I want is too ?
inconsistent with what you showed on the Internet. 3.Can I do it?
Yes, you need to provide machine pictures and finished mask pictures.
4.what should I do if I buy a machine and Iwon’t install it back?South Korea and Vietnam have after-sales and can be installed on
site. Other countries can send installation videos and remote video guidance. Many foreign customers install this way. You only
need to install the four screws of the connector of the filming machine and the earband machine, learn to load the cloth and
operate normally. The company will be equipped with text version and video version of the whole teaching.
5. How long is the warranty period?
The warranty period is one year. The ultrasound is three months. During the warranty period, the parts are damaged and the company
provides new parts.

After-sales service description

Hello, please don't feel strange when you see words like mine. I am the boss of this mask machine enterprise. I have been doing
research and development of machinery and equipment for ten years. I didn't expect the sudden outbreak of the epidemic this year
to transform our company into mask machines. I have always been very strict in doing things, and so has the mask machine designed
by our company. I have participated in the control of our machines from design to purchase related raw materials. Every detail of
the machine is done with great precision. The machine runs stably and is easy to operate. There is a Korean interface. At present,
plane mask machines have been made for more than 1,000 years this year, and KF94 South Korea has exported more than 200 units. The
factory still has 100 semi-finished products in stock. Can be assembled, installed, debugged and shipped at any time. The fastest
delivery speed can be one to two days. Special custom-made mask appearance, 10 days delivery. KN95 has produced a total of 300
units, and there are still 80 units in stock, which are on sale at a special price. 70-80 pcs per minute. Details can be found on
the website about the introduction of relevant machines. The KF94 packaging machine we made was followed by the machines bought
from South Korea and improved many shortcomings of the past machines. We are rigorous and professional in the mask machine
industry. I would like to make a special mention of South Korea's door-to-door installation service. It usually takes 10-15 days
from the time you place an order to the time when the goods arrive. Shipping from Qingdao port, transportation time: 3-5 days.
After delivery, we will arrange the time for after-sales personnel to install in advance and train your employees how to operate
one-stop service. After-sales warranty period of one year, if you have any questions, you can contact the company's after-sales
customer service in time. The company will arrange personnel to carry out on-site maintenance in the first place.
