YT-19 RK3399 PCB Motherboard / AI Main Board For Face Recognition System
YT-19 RK3399 PCB Motherboard / AI Main Board For Face Recognition System
YT-19 RK3399 PCB Motherboard / AI Main Board For Face Recognition System
YT-19 RK3399 PCB Motherboard / AI Main Board For Face Recognition System
Specifications
Brand Name :
OEM
Model Number :
YT-19
Place of Origin :
China
MOQ :
1pcs
Price :
US$75-US$85
Payment Terms :
T/T
Supply Ability :
1000PCS/WEEK
Delivery Time :
20 Work days
Packaging Details :
white box
CPU :
six-core high-performance CPU
NPU :
composed of four A53 cores and two A72 cores
Working voltage :
DC 9V to 24V
Working current :
≦2A
Current memory :
≦4mA
Video output typ :
DSI MIPI
Description

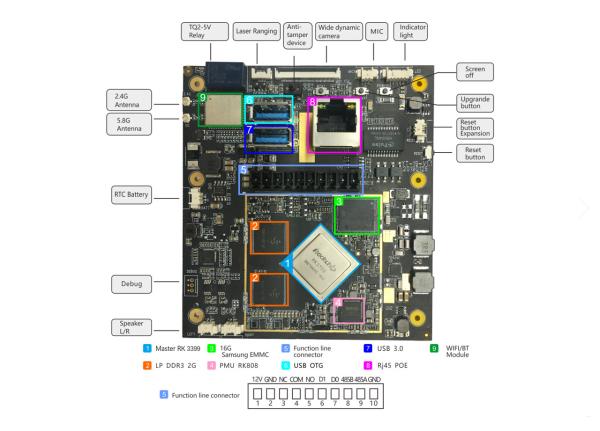

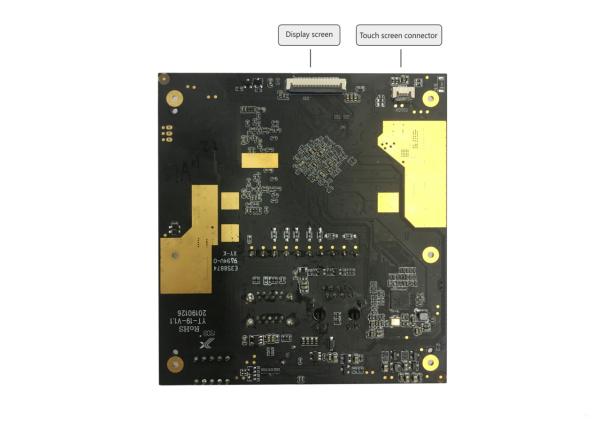

YT-19 RK3399 AI Main Board Face Recognition Access Control Attendance System

Basic Parameter

Basic Parameter
Video output type DSI MIPI
Display resolution Vertical screen 800*1280
Sound output AC97/IIS/PCM interface, support recording and playback
Touch mode Capacitive touch, USB or serial ports can be used to extend the resistive touch
Ethernet Support Gigabit Ethernet
POE power supply IEEE 802.3af/at-Compliant
USB HOST 1-way USB3.0
USB OTG 1-way USB3.0
RS-485 Half-duplex RS-485
Wegan Half-duplex 26bit, 34bit Wegan
Access control function Panasonic TQ2-5V relay is adopted
Wide dynamic binocular camera ON Semiconductor AR0230
Human body induction The maximum laser ranging is 2 meters
Camera complement Dynamic cold white adjustable
WIFI 2.4G,5.8G
Bluetooth BlueTooth 5.0
Microphone Support the waterproof
Speaker Double-way 4 ohm 1.5W
Board size 103.5mm(L)*95mm(W) *4mm(H)

YT-19 RK3399 PCB Motherboard / AI Main Board For Face Recognition System

YT-19 RK3399 PCB Motherboard / AI Main Board For Face Recognition System
