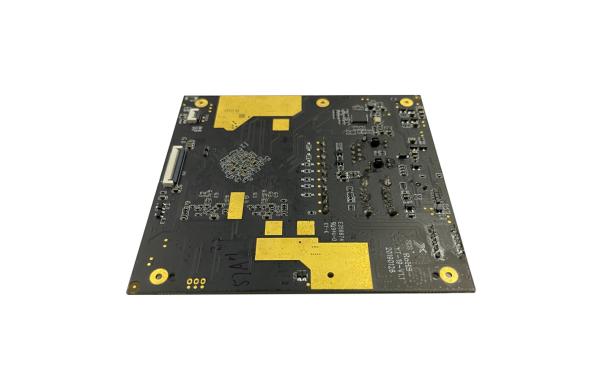

Six Core Android PCB Motherboard Default 2+16G Storage 8+256G Optional Development PCBA
Six Core Android PCB Motherboard Default 2+16G Storage 8+256G Optional Development PCBA
Six Core Android PCB Motherboard Default 2+16G Storage 8+256G Optional Development PCBA
Six Core Android PCB Motherboard Default 2+16G Storage 8+256G Optional Development PCBA
Specifications
Brand Name :
OEM
Model Number :
YT-19
Place of Origin :
China
MOQ :
1pcs
Price :
US$75-US$85
Payment Terms :
T/T
Supply Ability :
1000PCS/WEEK
Delivery Time :
20 Work days
Packaging Details :
white box
CPU :
six-core high-performance CPU
NPU :
composed of four A53 cores and two A72 cores
Access control function :
Panasonic TQ2-5V relay is adopted
Camera complement :
Dynamic cold white adjustable
WIFI :
2.4G, 5.8G
Board size :
103.5mm(L)*95mm(W) *4mm（H）
Description

YT-19 RK3399 Android Main Board Default 2+16G Storage 8+256G Optional Development PCBA

  • Adopt dividing line design, the size is only 103.5mm*95mm*4mm
  • Use RK's own RK808 PMU to ensure stable and reliable work, at the same time, the cost is low enough;
  • Support emmc of a variety of brands and capacities, the default use of Samsung 16GB emmc;
  • Dual channel LPDDR3 design, support 2GB capacity by default, 4GB capacity can be customized;
  • Support power dormant and wake;
  • Support android7.1.1 operating systems;
  • Support wide dynamic binocular camera and bio-assay detection, using AR0230 chip;
  • Support laser infrared distance measurement function;
  • Support dynamic adjustment of white filling light, red indicator, green indicator;
  • Supports voice microphone;
  • Support multi-touch function;
  • Support 5.8G, 2.4G WiFi and Bluetooth 5.0;
  • Supports Gigabit wired Ethernet;
  • Supports POE power supply of Maxim solution IEEE 802.3af/at-Compliant；
  • Support OTG and USB 3.0 interfaces;
  • Support half-duplex RS-485 function;
  • Support half-duplex 26bit, 34bit Wegan function;
  • Support access control function, using Panasonic TQ2-5V relay;

Electrical and structural parameters

Electrical Parameters
Main 12V input voltage 12V/2A(12V/3A input is recommended)

RTC input voltage

 2.5 to 3V/5uA

Working temperature

 -20~70 degrees [heating and heat dissipation of bare plate can reach -30 degrees to 80 degrees
Storage temperature -30 degrees to 80 degrees
structural parameters
Appearance Industrial control board, development board
size 103.5mm(L)*95mm(W) *4mm(H)
Layer 10 Layers
