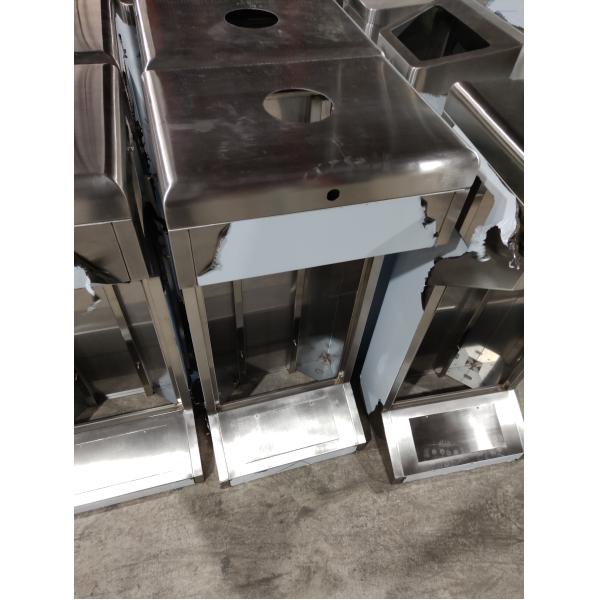

Supermarket Wide Lane Slim Swing Barrier Turnstile
Supermarket Wide Lane Slim Swing Barrier Turnstile
Specifications
Place of Origin :
Guangdong, China
Brand Name :
FORWARD SMART
Model Number :
TB79
Supply Ability :
1000pieces per month
Packaging Details :
Carton Box and Wooden Case
MOQ :
1 pieces
Price :
USD500-800pieces
Certification :
ISO9001:2015
Payment Terms :
T/T
Delivery Time :
5-8 working days
Product Name :
Wing turnstile gate
Net Weight :
70kgs
Housing Material :
1.2mm 304 Grade Stainless Steel
Gross Weight :
75kgs
Wing Width :
≤10mA
Control Type :
IC/ID Card,Fingerprint,Barcode Control
Working Environment :
Indoor or Outdoor
Port :
Shenzhen
Description

Wholesale slim gate wide lane swing barrier turnstile suitable for supermarket

Product Specifications:

Product Name Wing Turnstile Working Temperature -25°C-+60°C
Housing Size 1260*280*1000mm Relative Humidity ≤90% non-condensing
Gross Weight 75kgs Max Channel Width ≤1200m
Net Weight 70kgs Power Supply Voltage AC 220V±10V, 50-60Hz
Wing Width ≤285mm Drive Motor DC Motor 200W 24V
Drive Current ≤10mA Working Mode One Directional or Bi-Directional Optional
Housing Material 304 grade stainless steel Working Environment Indoor or Outdoor
Control Type IC/ID/Barcode/Fingerprint control Model Number WQ-SL/L/02
Machine Center Imported Germanic Technological Motor Passing Speed 30-40 person/min
Communication Interface RS485 Communication Distance ≤1200mm
Motor Rotating Speed 1600 RPM

Our biggest advantage is that we accept most kinds of customization.Nowadays almost all customers prefer special and unique products,we know it is quite difficult to do with various of solutions,but we are glad of it,the only reason is that customers demand it,and we have full ability to cater them.such as Beijing Capital International Airport just chose our turnstiles to serve passengers that come from all the world.

OPERATING MODES.

The turnstile can operate in 3 different modes.

1). Access permanently free, in either or both directions.

2). Access permanently mechanically locked, in either or both directions.

3). Electrically controlled access.

All above operation modes include the arm dropping function providing free and unobstructed safe passage for users in case of power failure.

Mode of operation to be clearly defined at the time of order.

ADVANTAGES AT A GLANCE.

• Low cost.

• Drop arm as standard.

• Robust.

• Reliable.

• LED directional indicator.

• User friendly.

• Compact, small footprint.

• Easy to install.

• Easily integrated with any access control system offering N/O or N/C volt free contact.

• Low power consumption.

DIMENSIONS.

• Length: 420mm.

• Width: 330mm.

• Height: 980mm.

• Arm Length: 600mm.

WORK TO BE PROVIDED BY OTHERS.

• All electrical and control cable requirements.

• All ducts, conducts, containment.

• All foundations, bases.

• Installation.

• Suitable fixings.
