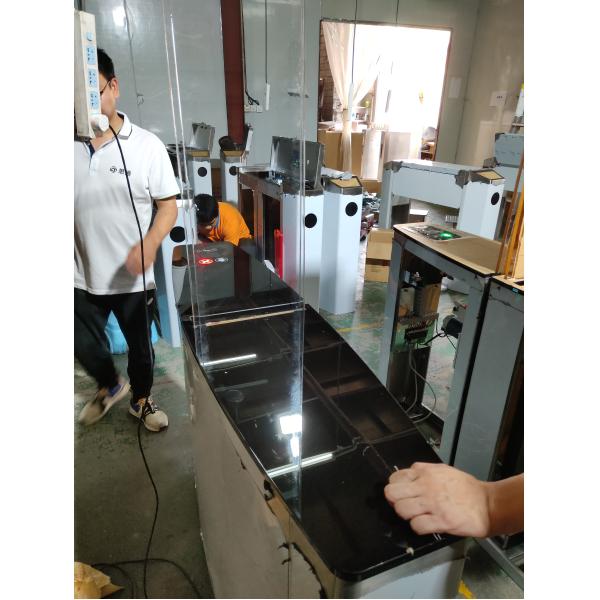

DC Brushless Motor IP44 Kuwait Glass Swing Gate
DC Brushless Motor IP44 Kuwait Glass Swing Gate
Specifications
Place of Origin :
Guangdong, China
Brand Name :
FORWARD SMART
Certification :
ISO9001-2008,CE
Supply Ability :
1000pieces per month
Packaging Details :
1.Honey carton. 2.Wooden Case
MOQ :
1 pieces
Price :
USD500-800pieces
Model Number :
TB67
Payment Terms :
T/T
Delivery Time :
5-8 working days
Housing material :
304 Stainless Steel
Pass speed :
30-50 persons/minute
swing arm speed :
0.4S-1S
Voltage :
AC220V ± 10%
swing arm length :
280MM
Warranty :
One Year
Motor :
DC 24V Brushless Motor
Port :
Shenzhen
Description

swing glass gate turnstile kuwait swing barrier gate supplier

Product Description

1.Swing arm anti-collision,you can even kick the swing arm,very good quality.
2.Customer logo print on swing arm(optional,need more cost)
3.Box material:304 stainless steel(mirror effect material optional,need more cost)
4.Pass speed:30-50 persons/minute
5.swing arm length:280mm
6.swing arm speed:0.4s-1s
7.support input way: Two-side card reading, paper ticket, fingerprint, coins.
8.485 and TCP/IP communication port
9.workingtemperature:-15℃~+80℃
10.working humidity:≤95%
11.swing arm will close automatically when power off, open automatically when power on.
12.Anti-follow:after passing one people,if someone follow,turnstile will dead lock automatically and alarm
13.swing arm with light
14.voice prompt

FAQ Regarding turnstile:

1.What`s the difference between manual type turnstile and automatic type turnstile?

A. Manual turnstile, it hasn't electric control device, Automatic type, it can compatible with access control system.

B.Manual turnstile, it is single direction, For automatic type, it is bi-direction,

2.What`s the difference between full auto turnstile and semi-auto turnstile?

A.Full-auto type, it is motorized. For semi-auto, it is solenoid.

B. Full-auto type, after card reading, the arm will rotate 10-15 degree. Passengers push it to pass.

Semi-auto type, after card reading, passengers push the arm to pass.

C. Full Automatic turnstile, The Pole automatically falls down when electricity is cut down, and the arm will be automatically when the power on.

Semi-auto turnstile, when power failure, the middle arm will drop automatically, and when power on again, it needs people to lift it.

3.What`s the MOQ?

The MOQ of our tripod turnstile is 1 pc/pair

4.Whether the size and shape of turnstile can be changed?

OEM is available, we can produce the non-standard turnstile if customer offer drawing or if customer need us to design a new turnstile.

Specification
Power consumption 100W
Housing Size 1200*280*1000mm
Housing material 1.5--2mm, 304# stainless steel, corosion resistant
Drive motor DC brushless motor
Channel width ≤1200mm
Pass speed 30 persons or bike/min.
Panel open/close time 1.5s(adjustable)
IP protection IP44
Input singal optional DC12V/dry/contact/RS485/RS232/Remote)
railing-off against power off Yes
Working enviroment temperature minors 30°C to 70 °C
Working environments indoor,outdoor
Relative humidity ≤95% coagulation free
MCBF 2,500,000 cycle

DC Brushless Motor IP44 Kuwait Glass Swing Gate
