RS485 Bar Code Reader Stainless Steel Turnstiles
RS485 Bar Code Reader Stainless Steel Turnstiles
Specifications
Place of Origin :
Guangdong, China
Brand Name :
FORWARD SMART
Model Number :
TS35
Supply Ability :
1000pieces per month
Packaging Details :
Paper carton or OEM packing.
MOQ :
1 pieces
Price :
USD200-300pieces
Certification :
ISO9001:2015
Payment Terms :
T/T
Delivery Time :
5-8 working days
Housing Material :
304 Grade Stainless Steel
Housing Size :
1300*300*1000
Housing thickness :
1.5mm
Control Type :
ID/IC/Barcode/Ticket/Fingerprint Control Accepted
Communication Interface :
RS485/TCP/IP
Passing Speed :
30-40 persons/min
Passage width :
≤600MM
Direction :
Single or Bi-direction
Warranty :
1 Year
Port :
SHENZHEN/HK
Description
Turnstile gate contain with bar code reader other reader optional
Product Description
Name
Tripod Turnstile
Model
WQH-TS06
Housing Size
420x330x980mm
Housing Material
304 grade stainless steel optional
Passing speed
30 person/min
Working voltage
AC220V±10V, 50HZ
Motor voltage
220V
Rated Power
80w
Transmission
Sine Linkage
Frenquency
50-60Hz
Net Weight
60kg
Gross Weight
65kg
Control type
IC/ID/Barcode control accepted
Boom length
≤700mm
Logic voltage
24v
Direction
Single or Bi-directional
Working temperature
-45°C--+80°C
Operating humidity
≤90% non-condensing
Communication Interface
RS485/RS232
Operation life
≥5 million times

Features of Turnstile Gate

1. Stainless steel box, box-type bevel shape, novel and beautiful, durable.
2. Waterproof, sunscreen, anti-temperature, anti-cold.
3. Access Prompt function:Red and green light prompt the passing information.
4. The programmable gates control state, with a variety of operating modes you can choose, you can set a one-way or two-way control

5. Compatible IC, ID, magnetic card, bar code card, and other control equipment.
6. Power failure emergency function after power channel automatically open, closed automatically after
power-on, to meet the special needs of the user and the fire safety requirements

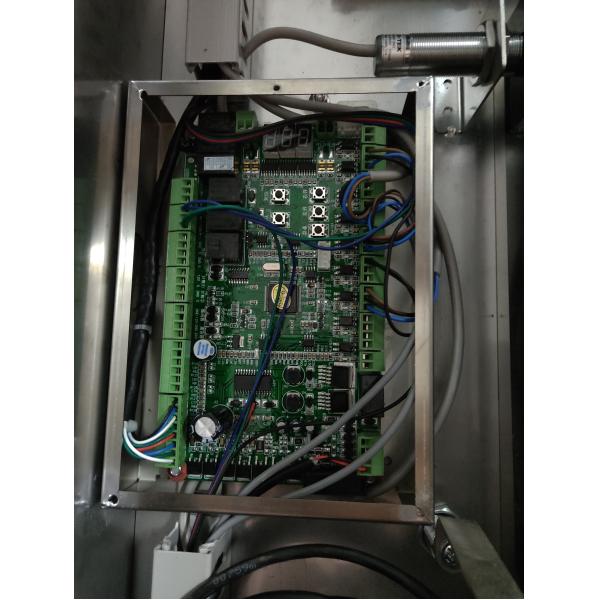

7. The control panel with counting function, LED digital display function (optional)
8. Fault detection and alarm function, user-friendly maintenance and use

OEM Optical Swing Turnstile Gate with Bar code QR Reader


Features:

1 with fault detection and alarm function for illegal come.
2..time of reflection test is adjustable after read the card.
3.have read card and memory function.the user can set up access to read cards many times or pass though access one.
4 with automatic reset function, passenger read valid card, pass though within the stipulated time, the system will automatically cancel the access permissions for users
5 has a unified, standard external electrical interface ,can be connected many kinds of reading cards.can realize remote control and manage by operating the computer.
