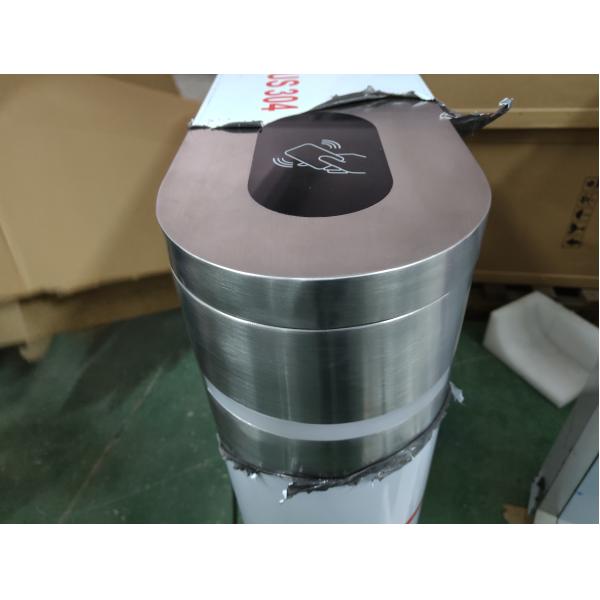

Semi Automatic Fingerprint RFID Vertical Tripod Turnstile
Semi Automatic Fingerprint RFID Vertical Tripod Turnstile
Specifications
Place of Origin :
Guangdong, China
Brand Name :
FORWARD SMART
Model Number :
TS30
Supply Ability :
1000pieces per month
Packaging Details :
Honeycomb carton/wooden support
MOQ :
1 Piece/Pieces
Price :
USD00-300pieces
Certification :
ISO9001:2015
Payment Terms :
T/T
Delivery Time :
5-8 working days
Material :
304 Stainless Steel
Housing Size :
480*330*980mm
Pole Length :
510mm
Direction :
Single or double directions
Passing speed :
30 persons/min
Input voltage :
AC220±10%V/ 50HZ±10% HZ
Working Condition :
Indoor or outdoor
Communication port :
Standard RS485 port, distance les than 1200m
Standard shutter :
Can be custom made
Port :
Shenzhen
Description

Cheap Fingerprint RFID Semi-Automatic Access Control Vertical tripod turnstile

Description
Mini tripod turnstile for bus, train, public bathroom access control, small size, convenient to install, can be custom made according to customer's requirement and work with other access control system.
Technical Parameters:
1 Input voltage: AC220±10%V/ 50HZ±10% HZ

2 Working Temperature: -10℃--50℃

3 Relative Humidity: 0-95%

4 Passing Speed: 30 persons/min

5 Led Indicator: 2

6 Communication Interface: Rs485 (Distance less than 1200m)

7 Framework Material: 304 stainless steel

8 Working environment: indoor/ outdoor

9 CE and ISO 9001-2008 Certification

Features:


1. Safety Protection

The pole will drop down automatically to evacuate people in the event of an emergency, such as fire, accident, natrual disaster, power failure, etc.

2. System Intergation

Integrate with access control system required by customers, and built-in reader appointed by customer.

3. Direction Indicator

The installation position of direction indicator can be adjusted.

2.Technical Parameters:

Model No TS06
Cabinet material 304 Staintless Steel
Cabinet Dimension 420*330*980MM
Passage width 550mm-600mm
Pass speed over 30 persons/min
Power supply 220~240 V(AC)
Max power consumption 60w
Frequency 50~60 mhz
Pass speed 30 people/min
Mechanism Electromagnetic
IP Protection IP54
Working temperature -35~+70 °C
Working environments indoor /outdoor

Swing Turnstile Features :

1. Housing Material: bright 304# stainless steel, 1.5mm thick, laser-cut smooth sides.

2. Built-in card-swiping face plate, 5mm thick, seamless combination with housing.

3. Single/dual directional card-swiping function, with swiping indicators and direction indicator.

4. Acrylic barrier gate, 10mm thick, night light is optional for swing turnstile.

5. Support Fire Signal open, release deadlock status after outage for free passage and for preventing panics.

It can be set for constant open or close with remote control function.

6. With sound and light alarms for below abnormal situations: Anti-tailing, anti-intruding, anti-reverse- passage.

7. Swing turnstile is with 4 pairs of hidden infrared fence.

8. The Turnstile is very easy to integrate the readers and writers of ID, IC, RFID, Fingerprint, bar code, card collectors, cellphone 2D codes, facial recognition instrument, etc.

Semi Automatic Fingerprint RFID Vertical Tripod Turnstile
