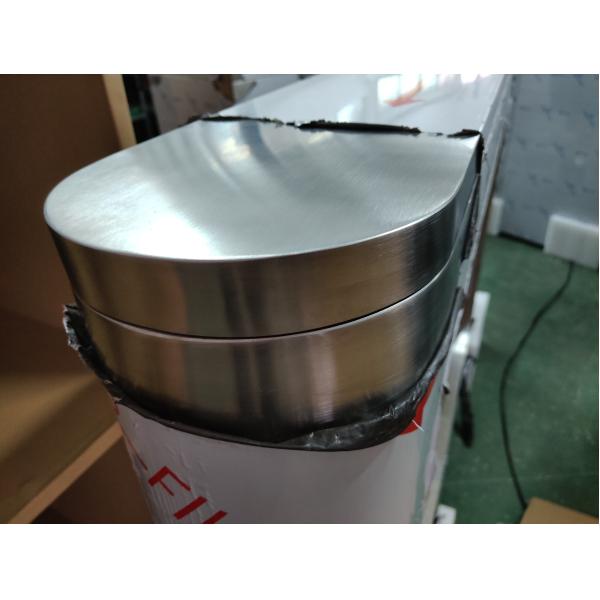

Fast Pass Tripod IP56 QR Code Turnstile
Fast Pass Tripod IP56 QR Code Turnstile
Specifications
Place of Origin :
Guangdong, China
Brand Name :
FORWARD SMART
Model Number :
TS26
Supply Ability :
1000pieces per month
Packaging Details :
honeycomb carton/wooden support
MOQ :
1 pieces
Price :
USD200-300pieces
Certification :
ISO9001:2015
Payment Terms :
T/T
Delivery Time :
5-8 working days
Material :
304 Stainless Steel
special function :
arm anti-collision
motor :
brushless motor
Passage width :
600mm
Passing speed :
30 persons/min
input voltage :
AC220±10%V 50HZ
Working temperature :
-10 to 60 centigrade degree
working humidity :
5%~95%
Name :
electric gates motors
Port :
Shenzhen
Description

Fast pass tripod turnstile for concert access control, factory price QR code reader turnstile

Competitive Advantage:

1.Anti-collision,you can even kick the arm.

2.Brushless motor,high quality,longger lifetime

3.RFID card (IC/ID), barcode, fingerprint, face recognition,coins
4.Communication:TCP/IP

5.CPU:ARM
6. 304 Stainless steel
7. Noise:≤50dB,operate very quiet.
8.working circumstance :temperature-25~60degree;humidity:5%~95%
9. Full automatic,the arm automatically falls down when power off, rise up when power on.
10. CE and ISO 9001-2008 Certification

Specifications:

Name

Tripod Turnstile

Model

WQH-TS14

Housing Size

1400x280x1000mm

Passing speed

30 person/min

Passage width

600mm

input Voltage

AC220V±10V

Housing Material

304 stainless steel

output voltage

24V

Access control

RFID card (IC/ID), barcode, fingerprint, face recognition,coins

IP grade

IP56

Noise

≤50dB

Frequency

50Hz

Motor

Brushless motor

Working temperature

-25°C--+60°C

Working mode

one directional or
bi-directional optional

Operating humidity

5%~95%

Communication

TCP/IP

Operation life

≥3 million times

Product Description

1.Features of Turnstile Gate:

★ Running stably without noise and mechanical impact.

★ The passing person number of the persons can be set.

★Bidirection or one direction permitted, one forbidden, or one direction charged,

one for free, and all the working molds set by the buttons in the main control board.

★ Direction-guide lights in the turnstile to tell you whether the direction to go or not.

★Standard Interface. work with ID / IC. UHF. Fingerprint Readers

★ Beam can be lifted and fall when power is cut-off.

★Self-check and alarm for convenient to operate.
