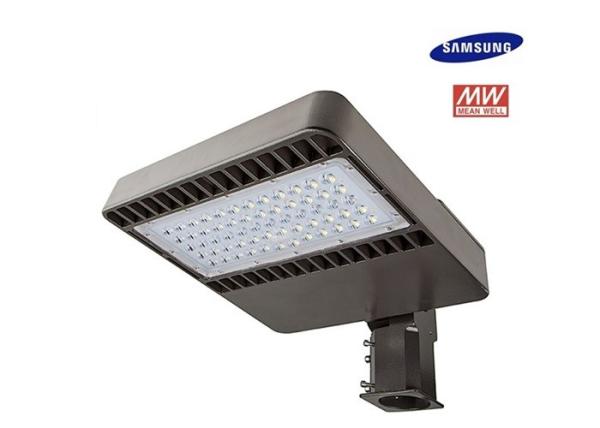

Samsung 3535LED Shoebox Light LED Parking Lot Light 80W 100W 120W 150W 200W 300W 400W 500W with Meanwell driver
Samsung 3535LED Shoebox Light LED Parking Lot Light 80W 100W 120W 150W 200W 300W 400W 500W with Meanwell driver
Specifications
Brand Name :
FAIRY LED
Model Number :
FY-PLL
Certification :
CE RoHS
Place of Origin :
CHINA
MOQ :
1pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
5000pcs / Month
Packaging Details :
neutral packing
Available Wattages :
80W 100W 120W 150W 200W 300W 400W 500W
Luminous Efficiency :
115Lm/W
Light Source :
Samsung 351B
Driver Brand :
Meanwell HLG series
Working Voltage :
AC90-305V 50/60Hz or 347V/ 480V
PF :
>0.95
CRI :
>80
Protection Grade :
IP65 waterproof
Beam Anlge :
90° / 120° / 90*120°/ 85*
IK Rating :
IK08
CCT :
3000K--6500K
Material :
high puriity 6060 aluminum, anodized surface treatment. Corrosion resistant.
Housing Color :
black / white / grey
Lifespan :
>50,000hrs
Special Functions :
Dimmable / Motion Sensors / 347V, 480V available
Warranty :
5 years
Description

Product Name: LED Shoebox Light / LED Parking Lot Light
Samsung 3535LED Shoebox Light LED Parking Lot Light 80W 100W 120W 150W 200W 300W 400W 500W with Meanwell driver
Product Features:
1. Available Wattage: 20W,24W,40W, 48W, 60W, 80W,100W,120W,150W,160W,200W,240W, 280W,300W, 400W, 500W
2. Driver brand:Meanwell HLG series
3. Input Voltage:AC90-305V 50/60Hz
4. Light Source:Samsung 351B
5. Luminous Efficiency:115LM/W
6. CRI:>80
7. CCT:3000K--6500K
8. Lamp Body Color:silver / black / white
9. IP Rating:IP-65
10. IK Rating: IK08
11. Beam Angle: 90° / 120° / 90*120°/ 85*
12. Installation Options:U-bracket / Hanging / Wall Mounted
13. Product Material: high puriity 6060 aluminum, anodized surface treatment. Corrosion resistant.
14. Life Span: >50,000hrs
15. Special Functions: Dimmable / Motion Sensors / 347V, 480V available

Model No. Wattage Lumen LED Qty Dimension
FY-PLL80W 80W 9200Lm Samsung 351B 36pcs 343*504*144mm
FY-PLL100W 100W 11500Lm Samsung 351B 48pcs 343*504*144mm
FY-PLL120W 120W 13800Lm Samsung 351B 60pcs 343*504*144mm
FY-PLL150W 150W 17000Lm Samsung 351B 60pcs 343*504*144mm
FY-PLL200W 200W 23000Lm Samsung 351B 96pcs 820*400*180mm
FY-PLL300W 300W 34000Lm Samsung 351B 120pcs 820*400*180mm








FY-PLL400W 400W 46000Lm Samsung 351B 180pcs 764*343*112mm
FY-PLL500W 500W 57500Lm Samsung 351B 200pcs 764*343*112mm





Distribution Curve:


Samsung 3535LED Shoebox Light LED Parking Lot Light 80W 100W 120W 150W 200W 300W 400W 500W with Meanwell driver
Installations Methods:
Samsung 3535LED Shoebox Light LED Parking Lot Light 80W 100W 120W 150W 200W 300W 400W 500W with Meanwell driver

Samsung 3535LED Shoebox Light LED Parking Lot Light 80W 100W 120W 150W 200W 300W 400W 500W with Meanwell driver
Samsung 3535LED Shoebox Light LED Parking Lot Light 80W 100W 120W 150W 200W 300W 400W 500W with Meanwell driver
Samsung 3535LED Shoebox Light LED Parking Lot Light 80W 100W 120W 150W 200W 300W 400W 500W with Meanwell driver

Applications:

1．Outdoor basketball court, tennis court.

2． Badminton court, the football field.

3． The school playground, stadium.

4．Community leisure entertainment plaza, road lamp etc.

Samsung 3535LED Shoebox Light LED Parking Lot Light 80W 100W 120W 150W 200W 300W 400W 500W with Meanwell driver

Samsung 3535LED Shoebox Light LED Parking Lot Light 80W 100W 120W 150W 200W 300W 400W 500W with Meanwell driver
