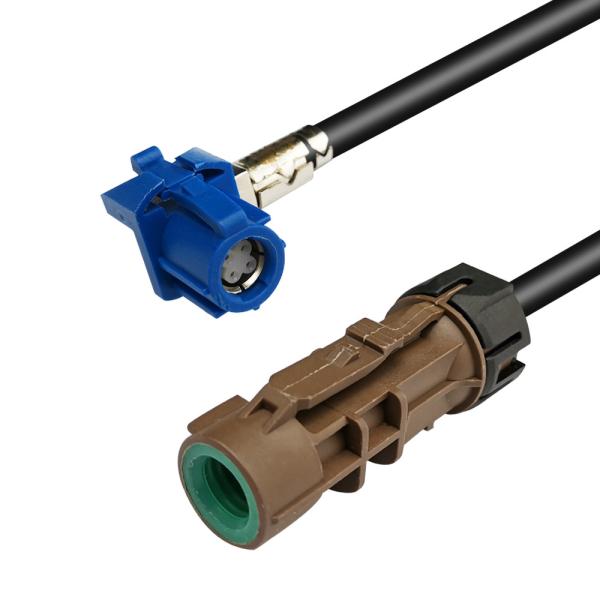

GPS Bluetooth HSD Pigtail Coaxial Cable , 4 Pin LVDS FAKRA Coaxial Cable Assemblies
GPS Bluetooth HSD Pigtail Coaxial Cable , 4 Pin LVDS FAKRA Coaxial Cable Assemblies
GPS Bluetooth HSD Pigtail Coaxial Cable , 4 Pin LVDS FAKRA Coaxial Cable Assemblies
GPS Bluetooth HSD Pigtail Coaxial Cable , 4 Pin LVDS FAKRA Coaxial Cable Assemblies
GPS Bluetooth HSD Pigtail Coaxial Cable , 4 Pin LVDS FAKRA Coaxial Cable Assemblies
GPS Bluetooth HSD Pigtail Coaxial Cable , 4 Pin LVDS FAKRA Coaxial Cable Assemblies
GPS Bluetooth HSD Pigtail Coaxial Cable , 4 Pin LVDS FAKRA Coaxial Cable Assemblies
GPS Bluetooth HSD Pigtail Coaxial Cable , 4 Pin LVDS FAKRA Coaxial Cable Assemblies
GPS Bluetooth HSD Pigtail Coaxial Cable , 4 Pin LVDS FAKRA Coaxial Cable Assemblies
GPS Bluetooth HSD Pigtail Coaxial Cable , 4 Pin LVDS FAKRA Coaxial Cable Assemblies
GPS Bluetooth HSD Pigtail Coaxial Cable , 4 Pin LVDS FAKRA Coaxial Cable Assemblies
GPS Bluetooth HSD Pigtail Coaxial Cable , 4 Pin LVDS FAKRA Coaxial Cable Assemblies
Specifications
Brand Name :
LEADSIGN
Model Number :
HSD Cable
Place of Origin :
CHINA
MOQ :
20 PCS
Price :
Contact the seller
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200000PCS/Month
Delivery Time :
7~14 work days
Packaging Details :
Giftbox size:260*220*80mm, 20PCS/CTN
Product Name :
Universal Fakra HSD Connector Cable
Orientation :
Straight / Right Angle
Type :
RF Cable
Cable length :
Customized
Temperature Range :
−40°C to +105°C
Application :
Automotive electronics
Description

HSD 4Pin LVDS Data Pigtail Coaxial Cable For Gps Antenna Video Bluetooth

Product description:

HSD provides two differential signal pairs for developing interfaces for the automotive industry, so it can send data based on low-voltage differential signals (LVDS) not only for a wide range of applications such as automotive infotainment modules, cameras, flat-screen displays, but also for USB 2.0/ 3.0, Ethernet. With high shielding efficiency.

Main Feature:

1. High-performance digital system for low-voltage differential signals
2. Protection against crosstalk and interference from external signal sources
3. High holding power
4. Cable side designed for crimp connections
5. USCAR-2 compliant design

Applications:
1. Advanced Driver Assistance Systems (ADAS)
2. Telematics, multimedia, infotainment, GPS, navigation and cameras
3. Body control, safety, security and comfort

Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.

Technical Specifications:

Characteristic impedance 100Ω
Operating voltage ≤100Volts rms
Insulation resistance 100MΩ Min
Withstand voltage 250Volts rms
Internal conductive contact resistance 10mΩ Max
External conductive contact resistance 7.5mΩ Max
Endurance 25Cycles Min
Insertion force 30N Max
Pull-out force 5N Min
Snap Retention Force 110 Min
Anti-misinsertion efficiency 80 Min

Our Service:

1.Accept OEM and ODM orders.

2.Samples are free of charge, only the customer has to pay the courier fee.

3.Support multiple logistics methods.

4.Fast delivery time and first-class service.
