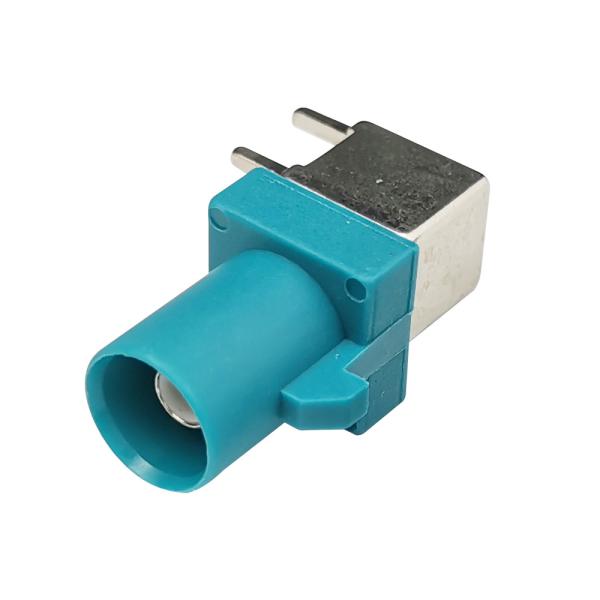

Multipurpose FAKRA PCB Connector Male Z For Automotive Industry
Multipurpose FAKRA PCB Connector Male Z For Automotive Industry
Specifications
Brand Name :
LDS
Model Number :
LDS-FAKRA-01ZM
Certification :
E-Mark
Place of Origin :
China
MOQ :
20 PCS
Price :
Contact the seller
Supply Ability :
200000 PCS/Month
Delivery Time :
7~14 work days
Packaging Details :
Carton size 29*13*11CM,20pcs per carton
Impedance :
100Ω
Frequency :
DC to 6 GHz
Insulation Resistance :
≥1000 MΩ
Test Voltage :
250 V rms
Working Voltage :
100 V rms
Power current :
≤1.5A DC
Working Temperature :
-40℃ ~ +105℃
Description

HSD 4+2 Pin Female Code Z For Automotive Power HSD PCB Connector

Description:

FAKRA connectors have been specially developed for automotive applications. They are based on the SMB connector interface and meet the high requirements of the automotive industry in terms of functionality and safety. Designed for high speed data transfer to meet automotive data transfer rates up to 6 GHz.

Key Feature:
1. High-speed shielded connection system for digital data with performance up to 6Gbps.
2. Advanced mechanical and color coding system with 13 different codes.
3. Maximum assembly security.
4. Coaxial plug-in and cable in a rotatable plastic housing.
5. Highly reliable connection with good contact, firm and no loosening.
6. Can be used in combination with a wide range of protocol interfaces, such as LVDS Ethernet and USB.
7. High level of process automation and global manufacturing footprint
8. MOQ:20 PCS

Technical Specifications:

Material
Housing PA
Center Pin Copper Alloy
Outer contact Zinc Alloy
Insulator HTN
Electrical Performance
Impedance 100 Ω
Frequency Range DC to 2 GHz
Return Loss

≥20 dB to 1 GHz
≥17 dB to 2 GHz
Insertion Loss ≤0.1 dB to 2 GH
Insulation Resistance ≥ 1000 MΩ
Center Contact Resistance ≤ 8mΩ
Test Voltage 250 V rms
Working Voltage 100 V rms
Contact Current ≤ 1.5 A DC
Mechanical Performance
Mating Cycles ≥ 25 Time
Engagement Force ≤ 30 N
Disengagement Force ≥5 N
Retention Force Latch ≥ 110 N
Temperature Range -40 °C ~ +105 °C


Dimension & PCB Layout:

Others Code:

Product image:

FAQ:

1.Q:How do I apply for samples?

A:You can contact our customer service, you only need to pay the freight, our samples are free.

2.Q:Does your factory accept customized service?

A:Yes,we accept OEM&ODM.

3.Q:What are your company's strengths?

A:We have a professional technical team to ensure quality as well as efficiency.
