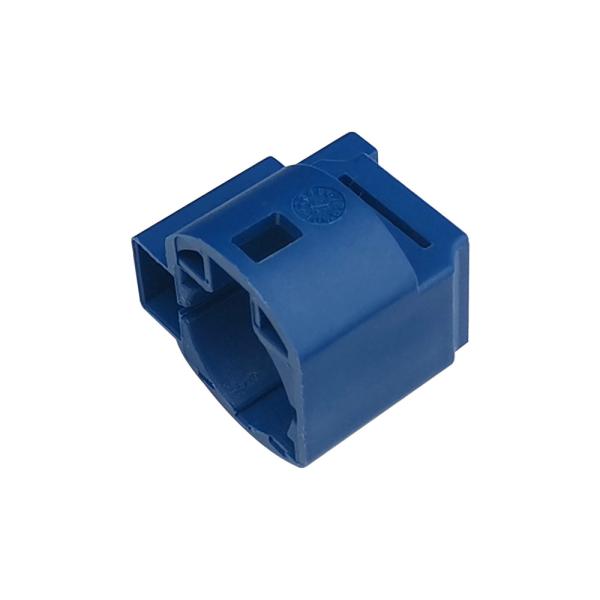

Code C Plug FAKRA HSD Connector Coaxial 4+2Pin 90 Degree PCB Mount
Code C Plug FAKRA HSD Connector Coaxial 4+2Pin 90 Degree PCB Mount
Code C Plug FAKRA HSD Connector Coaxial 4+2Pin 90 Degree PCB Mount
Code C Plug FAKRA HSD Connector Coaxial 4+2Pin 90 Degree PCB Mount
Specifications
Brand Name :
LEADSIGN
Model Number :
HSD Connector
Place of Origin :
CHINA
MOQ :
20pcs
Price :
Contact the seller
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20000PCS/Month
Delivery Time :
7~14 work days
Packaging Details :
Giftbox size:260*220*80mm, 20PCS/CTN
Type :
Coaxial
Code :
C-Code
Color :
Blue
PIN :
4+2PIN
Business type :
OEM & ODM
MOQ :
20 PCS
Description

FAKRA HSD Connector 4+2Pin Code C Plug 90 Degree PCB Mount Right Angle Connector

Product description:

HSD connectors can transmit data and signals at frequencies up to 6 GHz without crosstalk interference, making them perfect for applications in the automotive industry. HSD connector systems can transmit USB signals, signals from LVDS cameras or signals from IEEE 1394. This makes HSD suitable for digital infotainment applications or flat panel displays, HD entertainment, symmetrical networks, Ethernet data connections, telematics, video transmission via GVIF and cell phone base stations.

Main Feature:

1. It is suitable for confined applications
2. Capable of high speed data transfer such as USB, LVDS and Ethernet
3. 14 different mechanical and color codes
4. Plastic housing with locking function and sound
5. fast transmission speed
6. Coaxial cable with high shielding
7. Protection against crosstalk and interference from outside

8. MOQ:20 PCS

Applications:

1.Camera
2.Display
3.Consumer port
4. Reverse image
5.Central display
6.Rear entertainment system
7.Digital instrument panel

Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.

Technical Specifications:

HSD Connector
Materials Terminal Brass ,Au Plated / Nickel
Base die castings Zinc
Mechanical
Characteristics
 Insertion force ≤30N
Withdrawal force ≥ 5N
Durability > 25 times
Electrical
Characteristics
 Frequency 0-6Ghz
Impedance 100Ω
Withstand Voltage 250V AC
Working Voltage 100V DC
Working Current ≤ 1.5A DC
Environment
Characteristics
 Working temperature -40 ℃ - +105℃

HSD Coding:

Our Service:

1.Accept OEM and ODM orders.

2.Samples are free of charge, only the customer has to pay the courier fee.

3.Support multiple logistics methods.

4.Fast delivery time and first-class service.
