Product Description:

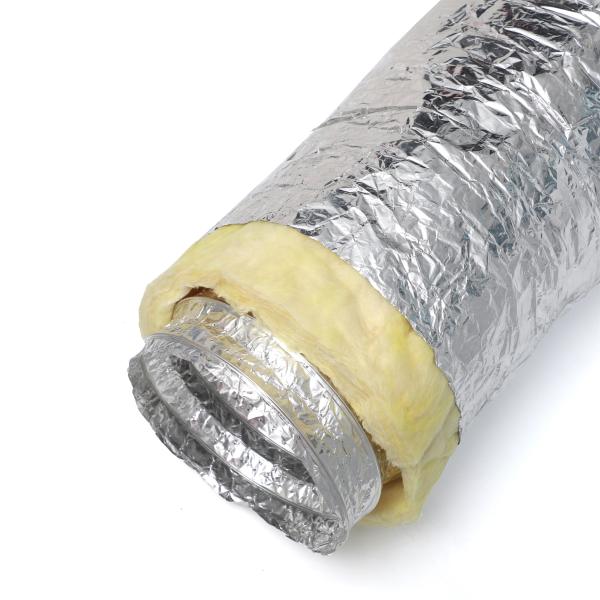

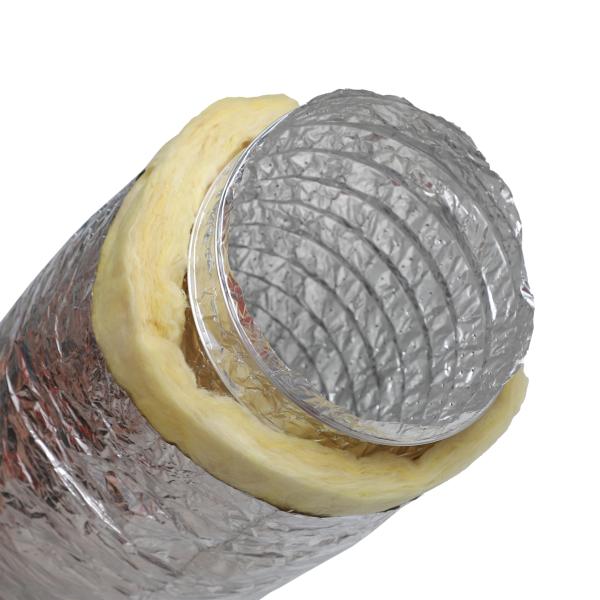

With a length of 10 meters and a diameter range of 4" to 24", this insulated flexible duct is suitable for a variety of HVAC applications, including residential and commercial buildings, offices, and industrial facilities. Its flexibility and easy installation make it an ideal choice for tight spaces and hard-to-reach areas.

The Insulated Flexible Air Duct is engineered to withstand harsh environments and extreme temperatures, providing excellent thermal insulation and preventing condensation buildup. Its fire-resistant properties and low smoke emission make it a safe and reliable choice for your HVAC system.

Whether you are upgrading your existing HVAC system or installing a new one, the Insulated Flexible Air Duct is an excellent choice for its superior insulation, durability, and flexibility. Trust in its performance and energy efficiency to provide comfort and cost savings for years to come.

Technical Parameters:

Here are the specific values for this particular equipment:

• Diameter Range: 80 ~ 610mm (3"~ 24")
• Temperature Range: -30 ~ +250 °C
• Velocity of Air Flow (Max.): 30 m/s
• Working Pressure: 2500 Pa/3000 Pa
• Bending Radius: 0.54*D+25mm
• Thickness of Fiberglass Insulation: 25-50mm
• Density of Fiberglass Insulation: 16~32kg/m3
• Standard Length: 5 ~ 10m

Applications:

One of the core features of this product is its flexibility, which allows it to fit into tight spaces and provide insulation for hard-to-reach areas. This makes it ideal for use in residential and commercial buildings, as well as in industrial settings. Whether you need to insulate air conditioning systems, heating systems, or ventilation ducts, this product can meet your needs.

Another key feature of this product is its sound and acoustic insulation properties. Its design minimizes noise and vibration, making it perfect for use in recording studios, movie theaters, and other settings where noise reduction is essential.

Whether you need to insulate a large commercial building or a small residential property, Fanryn's Insulated Flexible Air Duct is the perfect solution. With a diameter range of 4" to 24" and a length of 10M, this product can fit a wide range of applications.

When it comes to packaging and delivery, we offer plastic bags or carton packaging, with a minimum order quantity of 300 pcs. Our supply ability is 300 containers per month, ensuring that we can meet the needs of our customers in a timely manner. Delivery time is 7-15 work days, and we accept 100% TT payment terms.

Overall, Fanryn's Insulated Flexible Air Duct is a reliable and cost-effective solution for your thermal insulation needs. Don't wait any longer, order now and experience the benefits of our Aluminum foil duct with insulation.

Packing and Shipping:

Product Packaging:

• The insulated flexible duct will be packed in a sturdy cardboard box.
• The duct will be coiled and placed in the box to prevent damage during shipping.
• The box will be labeled with the product name and specifications.

Shipping:

• The product will be shipped via standard ground shipping.
• Shipping and handling time may vary depending on the destination.
• Customers will receive a tracking number to monitor the status of their shipment.
