Specifications
Place of Origin :
China
Brand Name :
SANSEN FARMEQUIP4U
Certification :
CE
Model Number :
4T2W
MOQ :
10
Price :
Depend on models and quantity
Packaging Details :
Steel Frame
Delivery Time :
60days around
Payment Terms :
T/T, Western Union
Supply Ability :
Depends on purchase quantity and models
Product :
Tractor Trailer
Finish :
Powder coated or galvanized optional
Color :
Customerized
Description

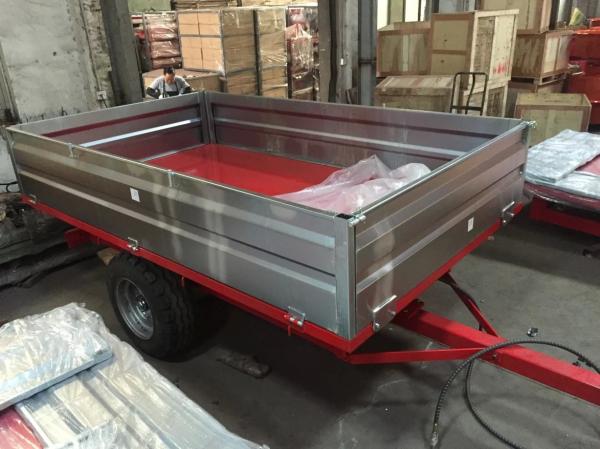

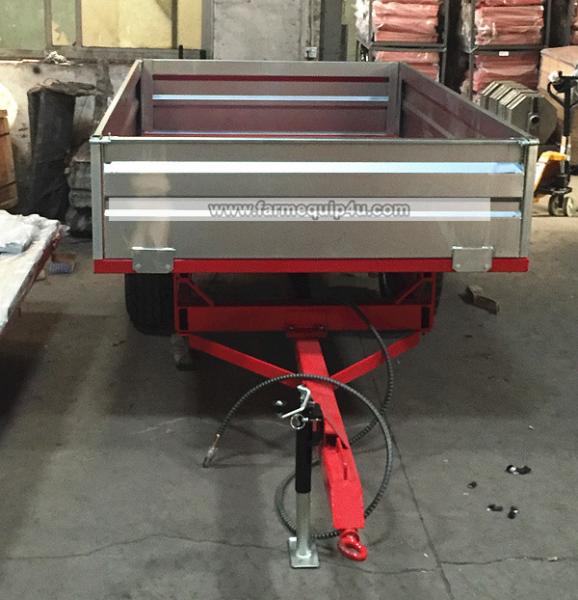

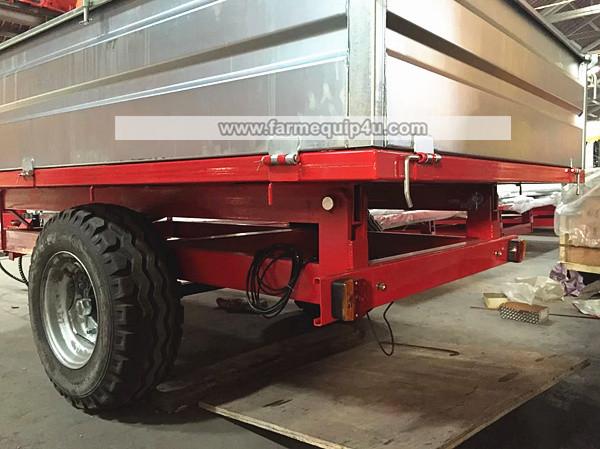

4Ton Dump Trailer

Small Tipping trailer is great around any small acreage or hobby farm and can be of use every day of the year with a hydraulic lift for tipping.they are perfect for transportingsoil ,sand ,feed,fertilisers,tools,small machinery & trees for plandting .Perfect for transporting hay to all corners of your property.

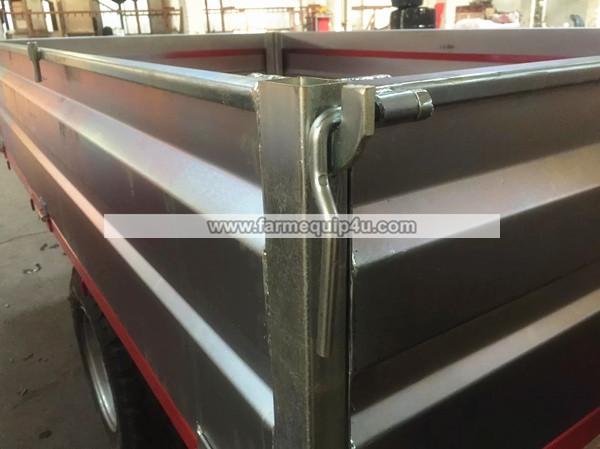

*Removable sides.
*Max.lift angle:56
*Tires 2 wheel
*With tail lights
*With hydraulic cylinder ram& hose connecting
*Side and rear panels fold down for easy loading and unloading
*No highway.If you want brake ,please ask us.


Model 型号 1T2W 1.5T2W 2T2W 3T2W 4T2W
Internal Length 车厢内长 2200mm 2200mm 2400mm 2800mm 2800mm
Internal Width 车厢内宽 1170mm 1170mm 1280mm 1500mm 1500mm
Internal Height 车厢内高 380mm 380mm 380mm 380mm 500mm
Max Load 最大载重 1000kgs 1500kgs 2000kgs 3000kgs 4000kgs
Drawbar Type 车架形式 rectangle-frame rectangle-frame rectangle-frame rectangle-frame rectangle-frame
No. of Axle 轴数量 1 1 1 1 1
Max Lift Angle 倾翻角度 45° 56° 56° 56° 56°
Tire Number 轮胎数 2 2 2 2 2
Tire Size 轮胎规格 20*10-8 7.00-12 10.0/75-15.3 6tl 10.0/75-15.3 8tl 10.0/75-15.3 16tl
N.W/G.W 净/毛重 310/335kgs 320/345kgs 380/410kgs 590/630kgs 700/740kgs
包装尺寸 Packing Size 2280*1220*455mm 2280*1220*455mm 2420*1380*480mm 2900*1580*500mm 2900*1600*750mm
Tractor Hp 配套马力 18-30hp 18-40hp 25-40hp 30-50hp 30-60hp
Qty/20'GP 20尺集装箱数 17 17 10 8 8
Handbrake ,Wirewesh optional
