3T4W/4T4W - 4wheels Type Double Axle Tractor Trailer; Hydraulic Dump Trailer With Two Axle; Farm Tipping Trailer
3T4W/4T4W - 4wheels Type Double Axle Tractor Trailer; Hydraulic Dump Trailer With Two Axle; Farm Tipping Trailer
3T4W/4T4W - 4wheels Type Double Axle Tractor Trailer; Hydraulic Dump Trailer With Two Axle; Farm Tipping Trailer
3T4W/4T4W - 4wheels Type Double Axle Tractor Trailer; Hydraulic Dump Trailer With Two Axle; Farm Tipping Trailer
3T4W/4T4W - 4wheels Type Double Axle Tractor Trailer; Hydraulic Dump Trailer With Two Axle; Farm Tipping Trailer
3T4W/4T4W - 4wheels Type Double Axle Tractor Trailer; Hydraulic Dump Trailer With Two Axle; Farm Tipping Trailer
3T4W/4T4W - 4wheels Type Double Axle Tractor Trailer; Hydraulic Dump Trailer With Two Axle; Farm Tipping Trailer
3T4W/4T4W - 4wheels Type Double Axle Tractor Trailer; Hydraulic Dump Trailer With Two Axle; Farm Tipping Trailer
3T4W/4T4W - 4wheels Type Double Axle Tractor Trailer; Hydraulic Dump Trailer With Two Axle; Farm Tipping Trailer
3T4W/4T4W - 4wheels Type Double Axle Tractor Trailer; Hydraulic Dump Trailer With Two Axle; Farm Tipping Trailer
Specifications
Place of Origin :
China
Brand Name :
SANSEN FARMEQUIP4U
Certification :
CE
Packaging Details :
Steel Frame
Payment Terms :
T/T
Supply Ability :
Depends on purchase quantity and models
MOQ :
10
Delivery Time :
60days around
Price :
Depend on models and quantity
Model Number :
3T4W;4T4W
Type :
trailer
Use :
farm transport
Condition :
New
Color :
Customerized
Description

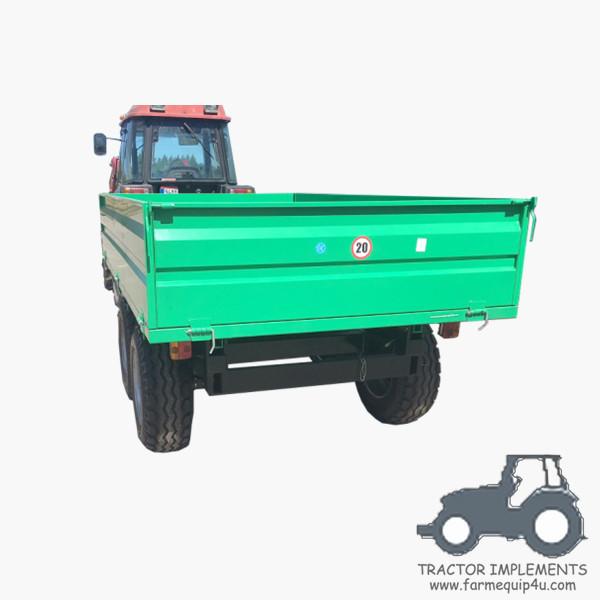

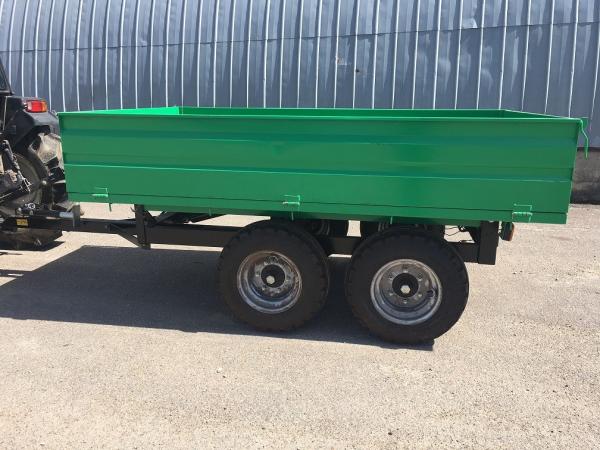

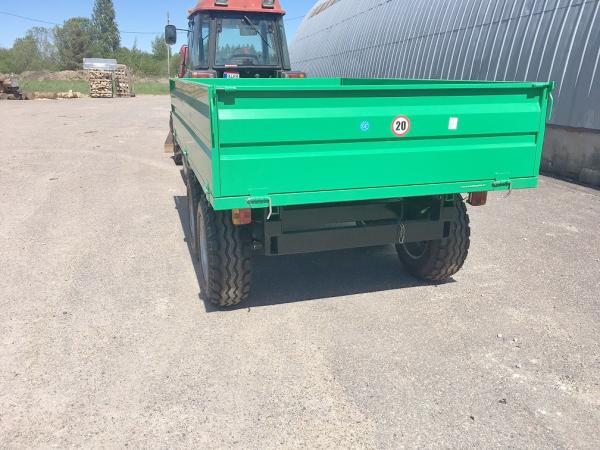

Double Axle Dump Trailer

Small Tipping trailer is great around any small acreage or hobby farm and can be of use every day of the year with a hydraulic lift for tipping.they are perfect for transportingsoil ,sand ,feed,fertilisers,tools,small machinery & trees for plandting .Perfect for transporting hay to all corners of your property.

*Removable sides.

*Max.lift angle:56
*Four wheels with double trailer axle
*With tail lights
*With hydraulic cylinder ram& hose connecting
*Side and rear panels fold down for easy loading and unloading
*No highway.If you want brake ,please ask us.

Model 型号 2T4W 3T4W 4T4W
Internal Length 车厢内长 2400mm 2800mm 2800mm
Internal Width 车厢内宽 1280mm 1500mm 1500mm
Internal Height 车厢内高 380mm 380mm 500mm
Max Load 最大载重 2000kgs 3000kgs 4000kgs
Drawbar Type 车架形式 rectangle-frame rectangle-frame rectangle-frame
No. of Axle 轴数量 1 2 2
Max Lift Angle 倾翻角度 56° 56° 56°
Tire Number 轮胎数 4 4 4
Tire Size 轮胎规格 20*10-8 7.00-12 10.0/75-15.3 6tl
N.W/G.W 净/毛重 315/345kgs 546/590kgs 700/750kgs
包装尺寸 Packing Size 2420*1380*480mm 2900*1580*500mm 2900*1600*750mm
Tractor Hp 配套马力 25-40hp 30-50hp 30-60hp
Qty/20'GP 20尺集装箱数 10 8 8
Handbrake , Mesh panel optional


Click for vedios

We carry a wide range of farm implements,

if not see on the website,please mail me for details.
