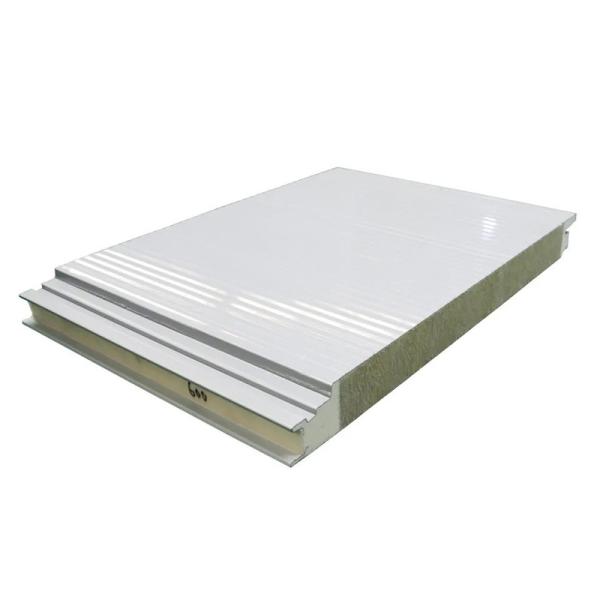

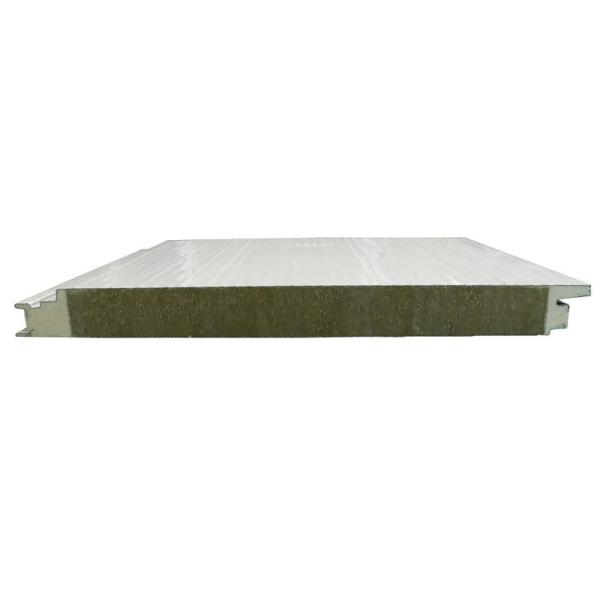

100mm Rock Wool Polyurethane Edge-Sealing Roof Panel for Fire Resistance A1
100mm Rock Wool Polyurethane Edge-Sealing Roof Panel for Fire Resistance A1
100mm Rock Wool Polyurethane Edge-Sealing Roof Panel for Fire Resistance A1
100mm Rock Wool Polyurethane Edge-Sealing Roof Panel for Fire Resistance A1
100mm Rock Wool Polyurethane Edge-Sealing Roof Panel for Fire Resistance A1
100mm Rock Wool Polyurethane Edge-Sealing Roof Panel for Fire Resistance A1
100mm Rock Wool Polyurethane Edge-Sealing Roof Panel for Fire Resistance A1
100mm Rock Wool Polyurethane Edge-Sealing Roof Panel for Fire Resistance A1
100mm Rock Wool Polyurethane Edge-Sealing Roof Panel for Fire Resistance A1
100mm Rock Wool Polyurethane Edge-Sealing Roof Panel for Fire Resistance A1
Specifications
Brand Name :
FAMOUS
Model Number :
OWN
Certification :
ISO9001:2008;CE
Place of Origin :
Zhejiang, China
MOQ :
200 square meters
Price :
USD5-10 Per square meter
Payment Terms :
L/C,T/T
Supply Ability :
2000,000 square meters per month
Delivery Time :
Based on client's needs
Packaging Details :
Seaworthy packings into container or bulk vessel
Moisture Resistance :
YES
Core Material :
Polyurethane，rockwool
Length :
2.44m
Fireproof Grade :
A1
Application :
Warehouse, workshop, garage, factory and so on
Certificate :
ISO 9001,CE,ASTM,EU,US,AU,NZS,etc
Features :
Fire,Water,Sound,Weather proof ,etc.
Sound Insulation :
YES
Thickness :
40/50/75/100/120/150/200mm
Thickness of steel :
0.3/0.35/0.4/0.5/0.6/0.7/0.8mm
Description

Rock wool polyurethane edge-sealing roof panel (FASEC)has excellent fire resistance

Field of employment

Modern standard workshops, breeding farms, convention and exhibition centers, stadiums, airports, logistics and warehousing and other construction industry plants and civil building roofs.

Thickness of plating(mm)
50,65,75,100mm

Fireproof performance
Grade A1

Product features
Using polyurethane side sealing technology, the plate is fireproof and has excellent moisture-proof performance.
Four waves of corrugated to increase the robustness of the board.
The inner plate can use aluminum foil instead of color steel plate to improve the high temperature and corrosion resistance of the product.

Types and advantages of steel plates

Material selection:
Stainless steel plate, color steel plate, aluminum-magnesium-manganese plate, specific materials can be customized according to customer requirements, color steel plate thickness and color.

ADWANTAGES

· Light weight, 10kg ~ 14kg / m2 , equivalent to 1 / 30 of brick wall.
· Good heat insulation, sound absorption and sealing performance.
· The construction period can be shortened by more than 40%.
· Bright color, beautiful appearance, no need to decorate the surface.
· With high strength, it can be used as enclosure structure, load-bearing structure, bending resistance
and pressure resistance, and general houses no need use beams and columns.
100mm Rock Wool Polyurethane Edge-Sealing Roof Panel for Fire Resistance A1
Connection type
100mm Rock Wool Polyurethane Edge-Sealing Roof Panel for Fire Resistance A1
100mm Rock Wool Polyurethane Edge-Sealing Roof Panel for Fire Resistance A1
METALSNADWICHPANEL
Steel Thickness 0.15-0.78 mm
Core Thickness 50/75/100/150/200mm
Core Material Rock wool/Glass wool/EPS/PU
Effective width

Roof: 950mm/980mm

Wall: 950mm/1000mm/1150mm
Length According to customer's request, less than 11.8m
Structure

three layers:

(1) upper layer is steel sheet,

(2) the inner layer is rock wool/Glass wool/EPS/PU
EPS density 40(kg/m³)
color White grey, blue or refer RAL
Parts

Steel line for easy connect one by one

Film covering in order to protect the steel of panels
lifetime 15 years
Character Light in weight, heat insulation, water proof, environmental
Use factory buildings, storages, exhibition halls, gymnasiums etc.
Packing Packing in shipping on container or according to your demands

100mm Rock Wool Polyurethane Edge-Sealing Roof Panel for Fire Resistance A1

100mm Rock Wool Polyurethane Edge-Sealing Roof Panel for Fire Resistance A1
