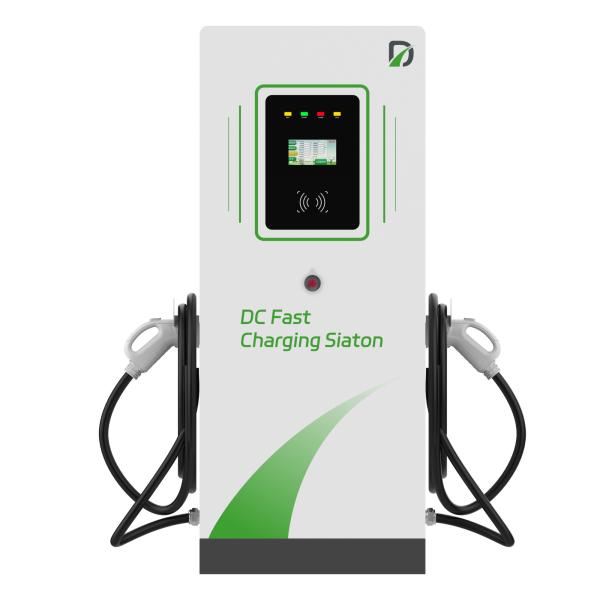

Kazakhstan EV Charger 240kW DC Fast Charging Stations Offering Unmatched Efficiency Powers Electric Heavy Duty Trucks, Marine Vessels, Cargo Vans, Mining & Port Equipment Swiftly

Quick Detail:

· Max Power 240kW-Double Guns

· CCS2/CCS1/CHAdemo/GBT Standard(Optional)

· Residential/Home use /Commercial Use(Optional)

· RFID/WIFI/4G/Internet

· 7.0 Inch Touch Screen

· 5M Charging Cable

· OCPP1.6J/OCPP2.0J(Optional)

Description:

1. Charging Power: Available in 240 kW or 360 kW configurations.
2. Features: Includes a 7-inch touch screen, 2 charging guns (CCS2/CHAdeMO/GBT/CCS1), and multiple charging modules (20 kW, 30 kW, or 40 kW).
3. RFID & OCPP Operation: Operates through RFID cards or OCPP platforms, with RFID enabling start/stop controls to prevent electricity theft.
4. LED Indicator: Shows charging status through different colored lights on the front panel.
5. Power Module: Uses UUG power modules for flexible distribution of charging power.
6. Design: Compact and highly integrated with an IP54 protection rating, ensuring durability against water and rust for outdoor use.
7. Compliance: Designed in accordance with EN/IEC 61851-1:2019 and EN/IEC 61851-23:2014 standards.

Specifications:

Notices:

Keep the explosive or flammable materials, chemicals, vapors and other hazard objects away from the charger.

Keep the charging socket clean and dry. If dirty, please wipe with clean dry cloth. Touch the socket core is strictly forbidden when power on.

Do not use the charger in case the device has defects, crack, abrasion, bare leakage and so on. Please contact the working staff in case of above conditions.

Applications:

The 240kW/360kW DC super fast-charging stations, primarily designed for commercial operations, offer unparalleled charging efficiency tailored to a wide range of applications. These high-power charging points excel in rapidly juicing up electric heavy-duty trucks, marine vessels, cargo vans, as well as equipment in mining sites and ports. With their exceptional power output, these stations are ideally suited for high-capacity batteries, ensuring swift replenishment in demanding environments where rapid turnaround is crucial.
