Quick Detail:

· Max Power 30kW-Single Gun

· GBT Standard (ONLY)

· Residential/Home use /Commercial Use(Optional)

· RFID

· 7.0 Inch Touch Screen

· 5M Charging Cable

Description:

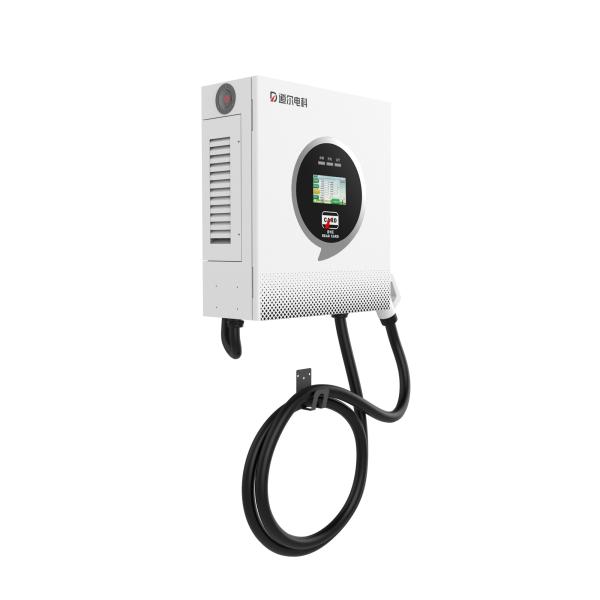

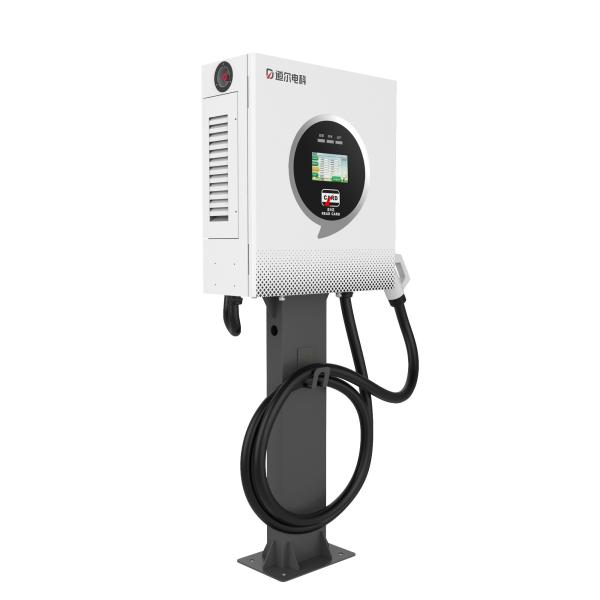

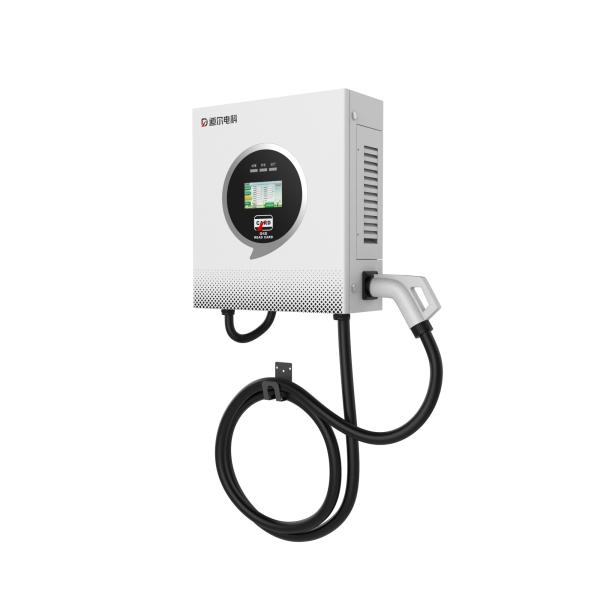

The 30kW DC charger is used for electric vehicle’s fast charging, composed of a 7-inch touch screen, 2 charging guns (GBT) and 30kW charging modules. It could be operation by RFID card/OCPP Platform. The RFID card is an function to start and stop the charging so as to prevent the theft of electricity by others.The LED indicator on the front panel helps you understand what is happening with the charger by indicating different colors. Using well-known brand UUG power module, Flexible distribution of charging power,the charger design is highly integrated and compact, with protection grade up to IP54, the excellent capacity of water and rust proof, assuring the safe outdoor operation and maintenance. Designed according to Electric Vehicle Charging System Standard GBT20234.3-2015

Notices:

The base shall be built according to the requirements. It is recommended that the base be 200mm higher than the road surface, 100mm larger than the outside of the cabinet for each measurement ratio before, during and after the cabinet, and threading holes shall be reserved.

Applications:

The GBT DC super fast-charging stations, primarily designed for commercial operations, offer unparalleled charging efficiency tailored to a wide range of applications. These high-power charging points excel in rapidly juicing up electric heavy-duty trucks, marine vessels, cargo vans, as well as equipment in mining sites and ports. With their exceptional power output, these stations are ideally suited for high-capacity batteries, ensuring swift replenishment in demanding environments where rapid turnaround is crucial.
