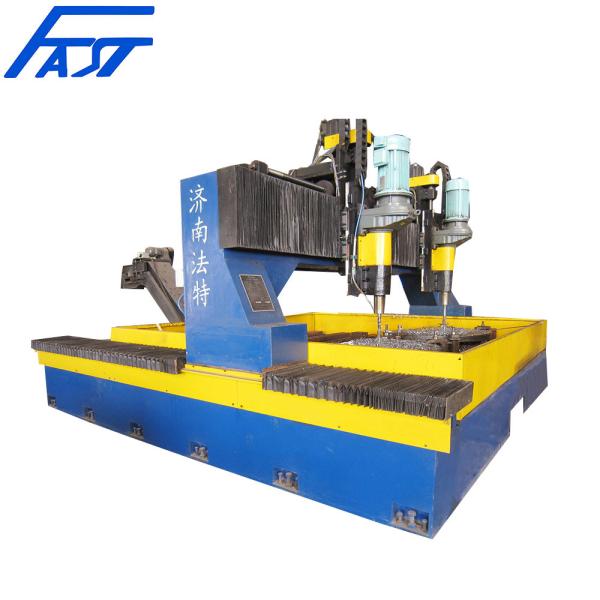

High Precision Cnc Drilling Machine For Metal

APPLICATION

This machine is mainly suitable for drilling connecting plates and foundation plates in steel structure, iron towers, bridges, mechanical processing and other industries. It can also be used for drilling flanges.

FEATURES

1. This machine is fully digitally controlled. CNC system controls servo automatically position and feed to ensure the accuracy of the drilling position;

2. High drilling accuracy CNC drilling power head. It is easy to quantify the depth; It has the functions of drilling blind holes, through holes, reaming and chamfering;

3. Four processing areas, 12 hydraulic clamps. Four groups of workpieces can be clamped, and workpieces can be loaded and unloaded while drilling;

4. Hydraulic clamping locks, not shaking when the power head and gantry drilling;

5. Linear guide line and ball screw fully protected and not exposed;

6. Flat chain automatic chip conveyor & Circulating cooling device;

7. Automatic lubrication device & Protection device. All moving (rotating) parts are automatically lubricated regularly;

8. Anti rusty stainless steel guardrail around the workbench;

9. Gantry beams & columns are widened and all steel plate welded, which is with good rigidity.

10. Full digital numerical control system control:

-Chip breaking function; Tool lifting chip removal function;

-Automatically converting CAD graphics into processing programs function;

- Adjusting the feed and speed according to different apertures,

-The standard numerical control system adopts the German Siemens numerical control system. It is equipped with a USB interface and an LCD liquid crystal display. The operation interface has functions such as human-machine dialogue, error compensation, and automatic alarm.

-Hole position preview and re-inspection function.

COMPOSITION

TECHNICAL DATA

★ All of these models can be customized according to customer requirements.
