JX2532 CNC Angle Steel Drilling And Markingi Production Line, ∧ CNC Angle Steel Drill Line

APPLICATION

This machine is used for drilling and marking large-size iron towers and high-strength angle steel in transmission lines. All the holes on the angle steel can be drilled in one pass, and the hole quality and position accuracy are high. It is a special machine for fully automated production.

FEATURES

• Integrated machine with mechanical, electrical and hydraulic elements;

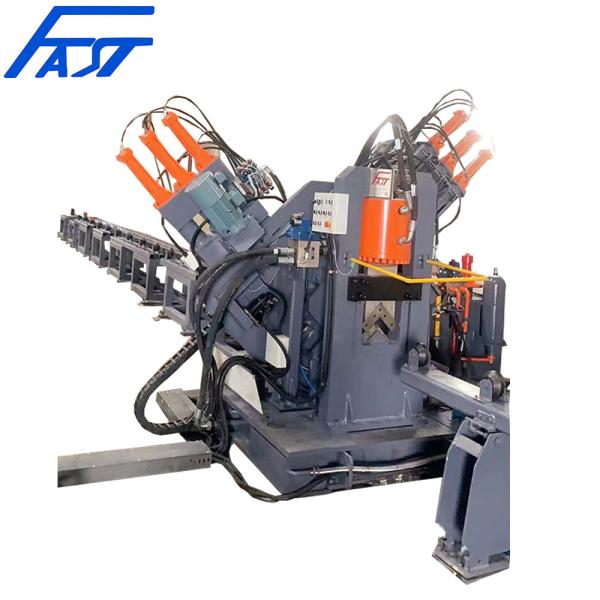

• There is a drilling power head on each of the two wings of the angle steel. Each power head has a tool magazine. The tool magazine is equipped with 4 tools. The tool magazine is optional. All holes on the two wings of the angle steel can be processed in one pass;
• The drilling spindle adopts high-precision BT40 spindle;
• The drilling spindle can be used to clamp twist drills or hard alloy drills, which has a wide range of applications;
• The quasi-distance can be set arbitrarily, and the number of punching rows is not limited;
• The drilling spindle adopts BT40 precision spindle;
• The marking unit adopts a closed bed structure, which has good rigidity. Four groups of selected programming on the upper marking box. The marking distance can be set at will;
• The control system is composed of a host computer, servo motor, PLC, external detection sensor, etc.;

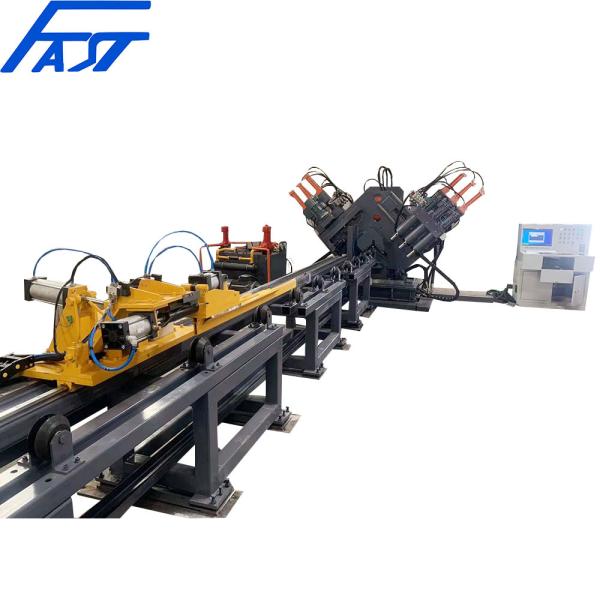

• The CNC feeding trolley is driven by a servo motor with high positioning accuracy;
• There are various input methods, such as keyboard and mouse input, USB interface input, network interface input.The data generated directly by the 3D or 2D software.
• The main electrical control components and hydraulic and pneumatic components are imported accessories;
• Providing G-code software program that can directly convert CAD graphics into executable machine ;
• Graph display of processed parts;
• With fault self-diagnosis function.
