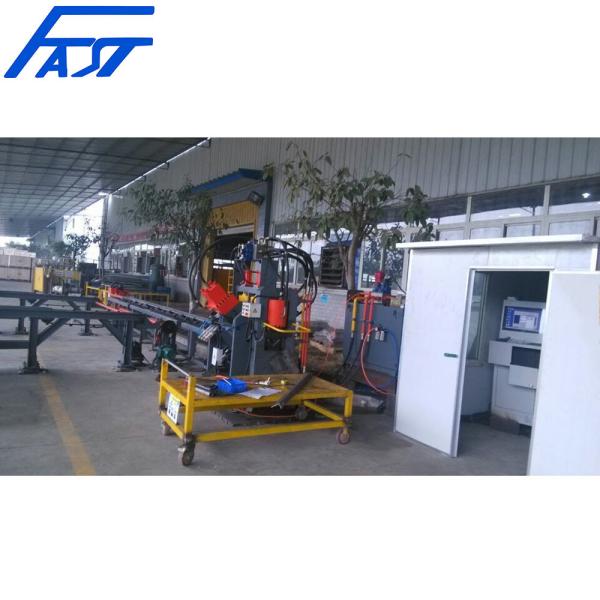

China Suppliers CNC Angle Line Punching Marking Cutting Machinery JX1010 Price

APPLICATION

This machine is mainly used for angle steel marking, punching, and shearing special machine for fully automated production. It is widely used in power towers, communication towers, three-dimensional garages, steel structure buildings and other industries.

FEATURES

• Integrated machine with mechanical, electrical and hydraulic elements;
• There are three sets of punching dies on the two wings of the angle steel. All the holes on the angle steel can be processed in one pass;
• Single-edged cutting saves raw materials and cuts the surface neatly;
• The quasi-distance can be set arbitrarily, and the number of punching rows is not limited;
• The marking unit adopts a closed bed structure, which has good rigidity. Four groups of selected programming on the upper marking box. The marking distance can be set at will;
• The hydraulic system mainly completes punching, cutting, marking, pressing and marking box interchanging;
• The control system is composed of a host computer, servo motor, PLC, external detection sensor, etc.;
• The CNC feeding trolley is driven by a servo motor with high positioning accuracy. The structure adopts a linear guide rail and hard racks, which has a long life and a more stable performance;
• There are various input methods, such as keyboard and mouse input, USB interface input, network interface input.The data generated directly by the 3D or 2D software.
• The main electrical control components and hydraulic and pneumatic components are imported accessories;
• Providing G-code software program that can directly convert CAD graphics into executable machine ;
• Graph display of processed parts;
• With fault self-diagnosis function.

COMPOSITION

TECHNICAL DATA

★ All of these models can be customized according to customer requirements.

DETAIL IMAGES

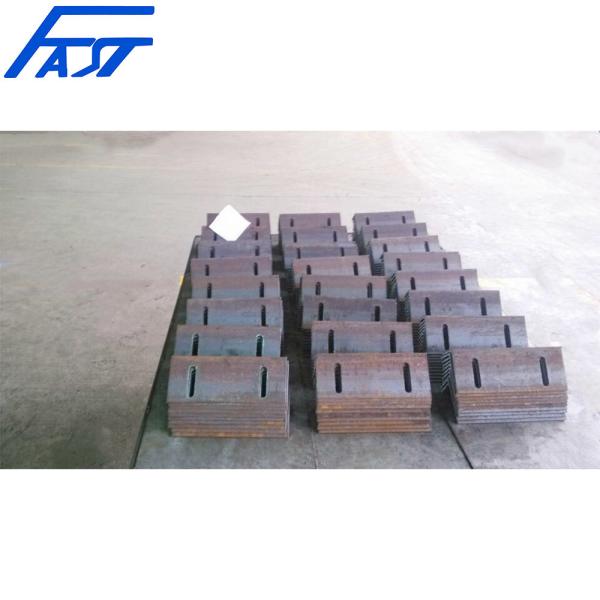

SAMPLES
