Specifications
Brand Name :
FAST
Model Number :
1224
Certification :
CE ISO9001
Place of Origin :
China
MOQ :
1set
Price :
USD35000~42000/set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300sets/year
Delivery Time :
30days
Packaging Details :
Plywood pallet
Condition :
New
Warranty :
12 Months
Port :
Qingdao Port
MOQ :
1 SET
Service :
24 hours online services
Voltage :
380V
Certificate :
ISO9001 CE
CNC or Not :
CNC
Manufacture :
OEM ODM Acceptable
Transmission :
X/Y rack and pinion drive, Z ball screw drive
Table structure :
T-slot vacuum
Spindle power :
9.6KW
Spindle speed :
24000r/min
Controller :
SYNTEC / OSAI
Description

Carousel Tool Change With Drilling Unit Automatic Loading & Unloading System FT4-1224D

Auto Loading And Unloading CNC Cabinet Machine RCA1325 Professional Cnc Machine For Wood

FEATURES

  • Top of its range, this solution has the great advantage of not requiring the constant presence of an operator. The suction cups equipped on the gantry travels to the rear of the machine to pick up the workpiece from the scissor lift, which is then nested and drilled at the flat table. At the completion of the work cycle, the pusher transports the completed workpiece out of the working area allowing simultaneous loading of the next cycle

  • Truly versatile-nesting, routering, vertical drilling and engraving all in one. It is well-suited for panel furniture, office furniture, kitchen, cabinets production.

  • Features world’ top class components. The enclosure over the gantry with LED light strip for display of the machine status prevents flying out of materials and greatly enhances safely.

TECHNICAL DATA

SERIES F4-1224D F4-1530D F4-2128D F4-2138D
Traveling size 2500*1260*200mm 3140*1600*200 mm 2900*2160*200 mm 3960*2170*200 mm
Working Size 2440*1220*70mm 3074*1550*70 mm 2850*2130*70 mm 3800*2130*70 mm
Table Size 2440*1228mm 3074*1550 2850*2130 3800*2130
Loading& Unloading Speed 15m/min
Transmission X/Yrack and pinion drive,Z ball screw drive
Table Structure Vacuum Table
Spindle Power 9.6kW
Spindle Speed 24000r/min
Traveling Speed 80m/min
Working Speed 25 m/min

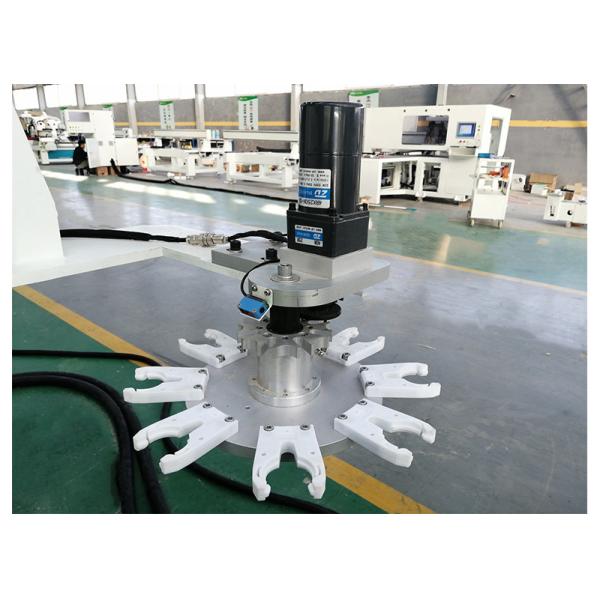

Tool Magazine Carousel
Tool Slots 8
Driving System Yaskawa
Voltage AC380/3PH/50Hz
Controller Syntec

DETAIL IMAGES

Auto Loading And Unloading CNC Cabinet Machine RCA1325 Professional Cnc Machine For Wood

Auto Loading And Unloading CNC Cabinet Machine RCA1325 Professional Cnc Machine For Wood

Auto Loading And Unloading CNC Cabinet Machine RCA1325 Professional Cnc Machine For Wood

Auto Loading And Unloading CNC Cabinet Machine RCA1325 Professional Cnc Machine For Wood

Auto Loading And Unloading CNC Cabinet Machine RCA1325 Professional Cnc Machine For Wood

Auto Loading And Unloading CNC Cabinet Machine RCA1325 Professional Cnc Machine For Wood

Auto Loading And Unloading CNC Cabinet Machine RCA1325 Professional Cnc Machine For Wood

Auto Loading And Unloading CNC Cabinet Machine RCA1325 Professional Cnc Machine For Wood

Auto Loading And Unloading CNC Cabinet Machine RCA1325 Professional Cnc Machine For Wood

Auto Loading And Unloading CNC Cabinet Machine RCA1325 Professional Cnc Machine For Wood

SAMPLES

Auto Loading And Unloading CNC Cabinet Machine RCA1325 Professional Cnc Machine For Wood

Auto Loading And Unloading CNC Cabinet Machine RCA1325 Professional Cnc Machine For Wood

Auto Loading And Unloading CNC Cabinet Machine RCA1325 Professional Cnc Machine For Wood

Auto Loading And Unloading CNC Cabinet Machine RCA1325 Professional Cnc Machine For Wood

Auto Loading And Unloading CNC Cabinet Machine RCA1325 Professional Cnc Machine For Wood

Auto Loading And Unloading CNC Cabinet Machine RCA1325 Professional Cnc Machine For Wood
