Four Head Double Station CNC Router 6KW 9KW CNC Cutting Engraving Electric Router Machine
Four Head Double Station CNC Router 6KW 9KW CNC Cutting Engraving Electric Router Machine
Four Head Double Station CNC Router 6KW 9KW CNC Cutting Engraving Electric Router Machine
Four Head Double Station CNC Router 6KW 9KW CNC Cutting Engraving Electric Router Machine
Four Head Double Station CNC Router 6KW 9KW CNC Cutting Engraving Electric Router Machine
Four Head Double Station CNC Router 6KW 9KW CNC Cutting Engraving Electric Router Machine
Four Head Double Station CNC Router 6KW 9KW CNC Cutting Engraving Electric Router Machine
Four Head Double Station CNC Router 6KW 9KW CNC Cutting Engraving Electric Router Machine
Four Head Double Station CNC Router 6KW 9KW CNC Cutting Engraving Electric Router Machine
Four Head Double Station CNC Router 6KW 9KW CNC Cutting Engraving Electric Router Machine
Four Head Double Station CNC Router 6KW 9KW CNC Cutting Engraving Electric Router Machine
Four Head Double Station CNC Router 6KW 9KW CNC Cutting Engraving Electric Router Machine
Specifications
Brand Name :
FAST
Model Number :
F2-1224-4
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
USD20000/set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300sets/year
Delivery Time :
30days
Packaging Details :
plywood cases
Condition :
New
Warranty :
12 Months
Port :
Qingdao Port
MOQ :
1 SET
Service :
24 hours online services
Voltage :
380V
Certificate :
ISO9001
CNC or Not :
CNC
Manufacture :
OEM ODM Acceptable
Transmission :
X/Y rack and pinion drive, Z ball screw drive
Table structure :
T-slot vacuum
Spindle power :
9.6KW
Spindle speed :
24000r/min
Controller :
SYNTEC / OSAI
Description

Four Head Double Station CNC Router

Four Head Double Station CNC Router 6KW 9KW CNC Cutting Engraving Electric Router Machine

APPLICATIONS
Furniture Industry: Panel Furniture, Office Furniture, Wood Door, Cabinet, etc;Wood-working Industry: Musical Instrument, Kitchen Doors, Windows, etc;Suitable Material: Wood, Solid Wood, Panel, Acrylic, Plexiglass, MDF, Plastic, Copper, Aluminum, etc.

FEATURES

  • Four head machining

  • Servo drive system

  • Adopt world-class top brand components

  • Taiwan controller

TECHNICAL DATA

SERIES F2-1224-4 F2-1228-4
Travelling Size 2500*1260*200mm 2850*1260*200mm
Working Size 2440*1220*50mm 2800*1220*50mm
Table Size 2500*1232mm 2800*1228mm
Net. Weight 1000kg
Transmission X/Y Rack and Pinion Drive, Z ball screw drive
Table Structure Vacuum table
Spindle Power 6.0kW*2 +5.5kW*2
Spindle Speed 18000r/min
Traveling Speed 60m/min
Working Speed 20m/min
Driving System AC380/3PH/50HZ
Controller Taiwan

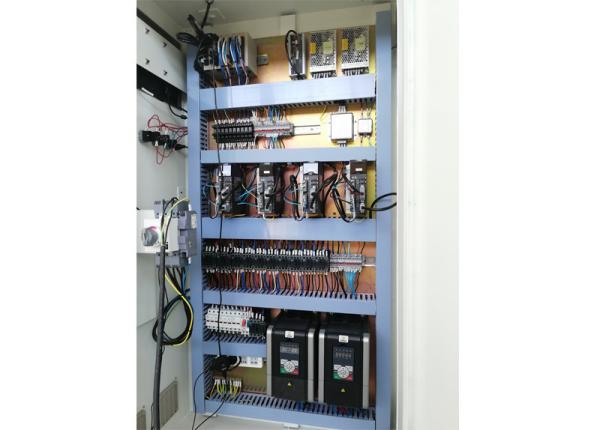

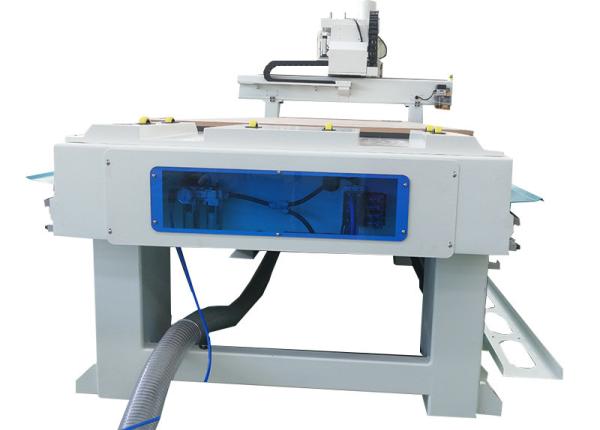

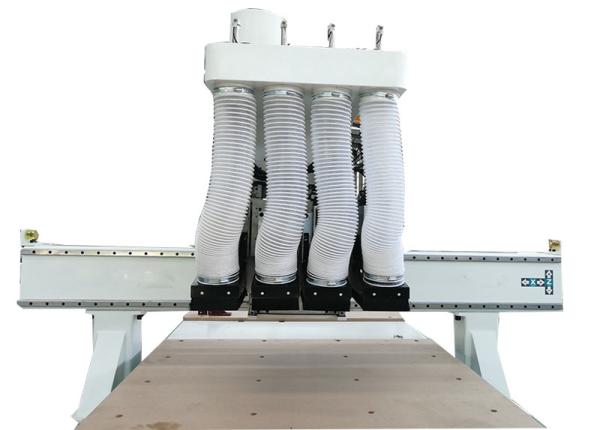

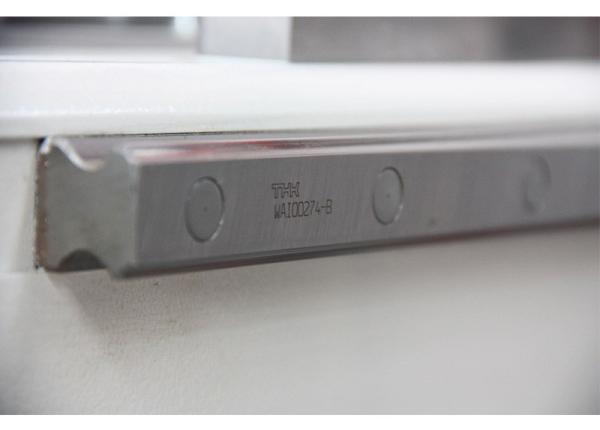

DETAIL PICTURES

Four Head Double Station CNC Router 6KW 9KW CNC Cutting Engraving Electric Router Machine

Four Head Double Station CNC Router 6KW 9KW CNC Cutting Engraving Electric Router Machine

Four Head Double Station CNC Router 6KW 9KW CNC Cutting Engraving Electric Router Machine

Four Head Double Station CNC Router 6KW 9KW CNC Cutting Engraving Electric Router Machine

Four Head Double Station CNC Router 6KW 9KW CNC Cutting Engraving Electric Router Machine

Four Head Double Station CNC Router 6KW 9KW CNC Cutting Engraving Electric Router Machine

Four Head Double Station CNC Router 6KW 9KW CNC Cutting Engraving Electric Router Machine

Four Head Double Station CNC Router 6KW 9KW CNC Cutting Engraving Electric Router Machine

Four Head Double Station CNC Router 6KW 9KW CNC Cutting Engraving Electric Router Machine

Four Head Double Station CNC Router 6KW 9KW CNC Cutting Engraving Electric Router Machine

Four Head Double Station CNC Router 6KW 9KW CNC Cutting Engraving Electric Router Machine

Four Head Double Station CNC Router 6KW 9KW CNC Cutting Engraving Electric Router Machine

Four Head Double Station CNC Router 6KW 9KW CNC Cutting Engraving Electric Router Machine
