Class 4.8 8.8 Clevis Pin And Key DIN1444 DIN EN 22341 Black Dacromet Plain Zinc Plated
Class 4.8 8.8 Clevis Pin And Key DIN1444 DIN EN 22341 Black Dacromet Plain Zinc Plated
Class 4.8 8.8 Clevis Pin And Key DIN1444 DIN EN 22341 Black Dacromet Plain Zinc Plated
Class 4.8 8.8 Clevis Pin And Key DIN1444 DIN EN 22341 Black Dacromet Plain Zinc Plated
Class 4.8 8.8 Clevis Pin And Key DIN1444 DIN EN 22341 Black Dacromet Plain Zinc Plated
Class 4.8 8.8 Clevis Pin And Key DIN1444 DIN EN 22341 Black Dacromet Plain Zinc Plated
Class 4.8 8.8 Clevis Pin And Key DIN1444 DIN EN 22341 Black Dacromet Plain Zinc Plated
Class 4.8 8.8 Clevis Pin And Key DIN1444 DIN EN 22341 Black Dacromet Plain Zinc Plated
Specifications
Brand Name :
YingYan
Model Number :
size Φ10-Φ45 length12~100mm
Certification :
ISO9000
Place of Origin :
JIANG SU PROVINCE CHINA
MOQ :
1000pieces
Price :
Negotiable
Packaging Details :
carton/plastic bag/wrapping film/pallet
Name :
Clevis Pins with Head
Standard :
GB/DIN/ASME/EN/ISO&etc.
Material :
A3/Q195/35K Carbon steel
Class :
4.8 ,8.8
Finish :
Plain, Black, Zinc Plated, Yellow Zinc Plated, Dacromet,
Service :
OEM/ODM
Length :
12mm-110mm
Size :
Φ10-Φ45
Color :
plain,black,yellow,etc.
Description

DIN1444 DIN EN 22341 A3/Q195/35K Steel Black/Dacromet/Plain/Plated Zinc Characteristics: Variety Of Φ10-Φ45 Class4.8 8.8

  • Class 4.8 8.8 Clevis Pin And Key DIN1444 DIN EN 22341 Black Dacromet Plain Zinc Plated

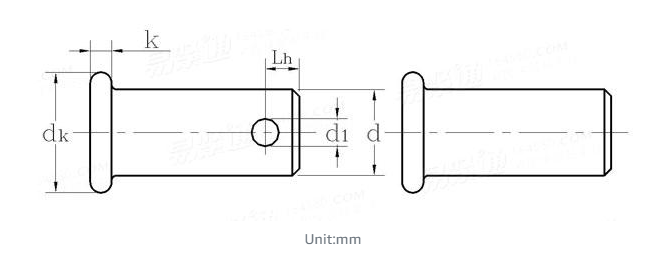

  • Nominal Diameter 3 4 5 6 8 10 12
    d
    d max 3 4 5 6 8 10 12
    min 2.94 3.925 4.925 5.925 7.91 9.91 11.89
    dk max 5 6 8 10 14 18 20
    min 4.7 5.7 7.64 9.64 13.57 17.57 19.48
    d1 max 0.94 1.14 1.34 1.74 2.14 3.38 3.38
    min 0.8 1 1.2 1.6 2 3.2 3.2
    k Nominal Size 1 1 1.6 2 3 4 4
    max 1.125 1.125 1.725 2.125 3.125 4.15 4.15
    min 0.875 0.875 1.475 1.875 2.875 3.85 3.85
    Lh min 1.6 2.2 2.9 3.2 3.5 4.5 5.5
    Nominal Diameter 14 16 18 20 22 24 27
    d
    d max 14 16 18 20 22 24 27
    min 13.89 15.89 17.89 19.87 21.87 23.87 26.87
    dk max 22 25 28 30 33 36 40
    min 21.48 24.48 27.48 29.48 32.38 35.38 39.38
    d1 max 4.18 4.18 5.18 5.18 5.18 6.52 6.52
    min 4 4 5 5 5 6.3 6.3
    k Nominal Size 4 4.5 5 5 5.5 6 6
    max 4.15 4.65 5.15 5.15 5.65 6.15 6.15
    min 3.85 4.35 4.85 4.85 5.35 5.85 5.85
    Lh min 6 6 7 8 8 9 9
    Nominal Diameter 30 33 36 40 45 50 55
    d
    d max 30 33 36 40 45 50 55
    min 29.87 32.84 35.84 39.84 44.84 49.84 54.81
    dk max 44 47 50 55 60 66 72
    min 43.38 46.38 49.38 54.26 59.26 65.26 71.26
    d1 max 8.22 8.22 8.22 8.22 10.22 10.22 10.22
    min 8 8 8 8 10 10 10
    k Nominal Size 8 8 8 8 9 9 11
    max 8.18 8.18 8.18 8.18 9.18 9.18 11.215
    min 7.82 7.82 7.82 7.82 8.82 8.82 10.785
    Lh min 10 10 10 10 12 12 14
    Nominal Diameter 60 70 80 90 100
    d
    d max 60 70 80 90 100
    min 59.81 69.81 79.81 89.78 99.78
    dk max 78 90 100 110 120
    min 77.26 89.13 99.13 109.13 119.13
    d1 max 10.22 13.27 13.27 13.27 13.27
    min 10 13 13 13 13
    k Nominal Size 12 13 13 13 13
    max 12.215 13.215 13.215 13.215 13.215
    min 11.785 12.785 12.785 12.785 12.785
    Lh min 14 16 16 16 16

Characteristics:

  • The headed pin shafts DIN1444 are designed in accordance with international standards, featuring a wide range of sizes that offer various options to meet requirements.
  • They can be made from a variety of materials, including stainless steel grades 304, 316, 2205, 2507, 310S, 904L, as well as carbon steel, to cater to diverse working environments and requirements.
  • DIN1444 pins are primarily employed for connecting two shafts or equipment that feature holes. Once the connection is made using the pin, a split pin is inserted into the hole located at the end of the pin to secure the workpiece in place.

Advantages:

  • Wide Applicability: Thanks to its diverse specifications and material options, DIN1444 is suitable for various industrial environments and application scenarios.
  • Stable Connection: The combination of pins and cotter pins ensures a stable and reliable connection.
  • Standardized Production: Following the DIN standard guarantees product quality and interchangeability, reducing maintenance and replacement difficulties.

Application Scenarios:

  • Pump, Valve, and Piping Systems: In fluid transport systems, DIN1444 pins are widely used for connecting and fixing pumps, valves, and pipes.
  • Petrochemical Industry: Due to the special working environment in the petrochemical industry, corrosion-resistant and high-strength connectors are needed. DIN1444 pins become an ideal choice because of their diverse material options and stable connection methods.
  • Marine Engineering Equipment: In marine engineering equipment, DIN1444 pins provide a stable and reliable connection, ensuring that the equipment works properly in harsh marine environments.
  • Wind Power Generation: DIN1444 pins also play a vital role in connecting and fixing equipment in wind power generation.
