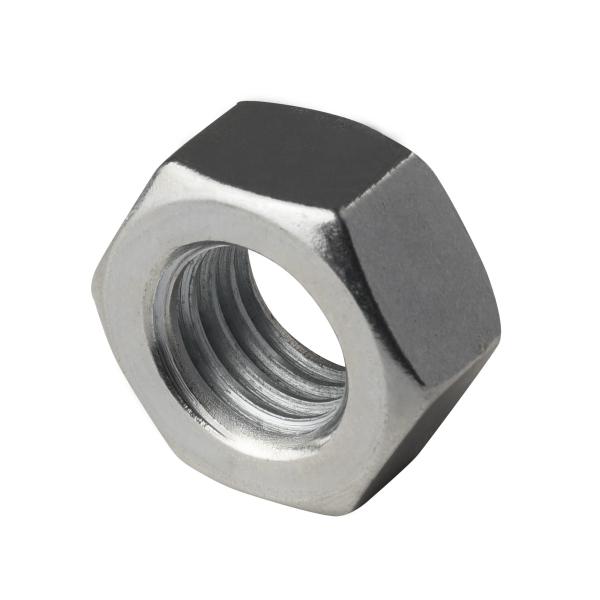

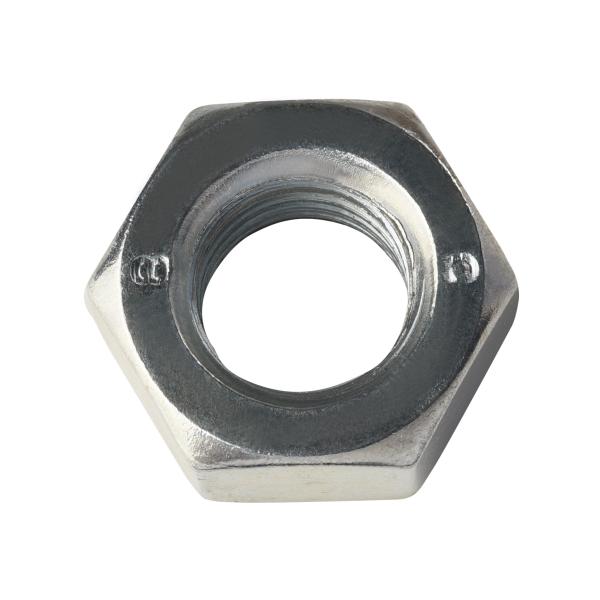

Zinc Plating Carbon Steel Hex Nuts DIN934 ISO4032 ANSI B18.2.2 ASTM A194 2h Nuts
Zinc Plating Carbon Steel Hex Nuts DIN934 ISO4032 ANSI B18.2.2 ASTM A194 2h Nuts
Zinc Plating Carbon Steel Hex Nuts DIN934 ISO4032 ANSI B18.2.2 ASTM A194 2h Nuts
Zinc Plating Carbon Steel Hex Nuts DIN934 ISO4032 ANSI B18.2.2 ASTM A194 2h Nuts
Zinc Plating Carbon Steel Hex Nuts DIN934 ISO4032 ANSI B18.2.2 ASTM A194 2h Nuts
Zinc Plating Carbon Steel Hex Nuts DIN934 ISO4032 ANSI B18.2.2 ASTM A194 2h Nuts
Zinc Plating Carbon Steel Hex Nuts DIN934 ISO4032 ANSI B18.2.2 ASTM A194 2h Nuts
Zinc Plating Carbon Steel Hex Nuts DIN934 ISO4032 ANSI B18.2.2 ASTM A194 2h Nuts
Zinc Plating Carbon Steel Hex Nuts DIN934 ISO4032 ANSI B18.2.2 ASTM A194 2h Nuts
Zinc Plating Carbon Steel Hex Nuts DIN934 ISO4032 ANSI B18.2.2 ASTM A194 2h Nuts
Specifications
Brand Name :
YingYan
Model Number :
M5-M100
Certification :
ISO9000
Place of Origin :
JIANG SU PROVINCE CHINA
MOQ :
1000pieces
Price :
Negotiable
Packaging Details :
Small Boxes, Plastic Bags, Bulk in Cartons,
Name :
Hex Nuts
Standard :
GB/DIN/ASME/EN/ISO&etc.
Material :
Carbon steel, Alloy steel, Stainless steel, Aluminum,
Grade :
6, 8, 10, 12;
Finish :
Plain, Black, Zinc Plated, Yellow Zinc Plated, Hot DIP Galvanizing,Dacromet, Nickel Plated, Magni,Geomet,Brass Plated
Size :
M5-M100/According your requirements
Description

Carbon Steel Hex Nuts / DIN934/ISO4032 / ANSI B18.2.2 / ASTM A194 2h Nuts Grade 6/8/10 Yellow Zinc Plating

Zinc Plating Carbon Steel Hex Nuts DIN934 ISO4032 ANSI B18.2.2 ASTM A194 2h Nuts

Thread Size M1 M1.2 M1.4 M1.6 (M1.7) M2 (M2.3) M2.5
d
P Pitch Coarse thread 0.25 0.25 0.3 0.35 0.35 0.4 0.45 0.45
Fine thread-1 / / / / / / / /
Fine thread-0 / / / / / / / /
m max=nominal size 0.8 1 1.2 1.3 1.4 1.6 1.8 2
min 0.55 0.75 0.95 1.05 1.15 1.35 1.55 1.75
mw min 0.44 0.6 0.76 0.84 0.92 1.08 1.24 1.4
s max=nominal size 2.5 3 3 3.2 3.5 4 4.5 5
min 2.4 2.9 2.9 3.02 3.38 3.82 4.32 4.82
e ① min 2.71 3.28 3.28 3.41 3.82 4.32 4.88 5.45
* - - - - - - - -
per 999 units ≈ kg 0.03 0.054 0.063 0.076 0.1 0.142 0.2 0.28
Thread Size (M2.6) M3 (M3.5) M4 M5 M6 (M7) M8
d
P Pitch Coarse thread 0.45 0.5 0.6 0.7 0.8 1 1 1.25
Fine thread-1 / / / / / / / 1
Fine thread-0 / / / / / / / /
m max=nominal size 2 2.4 2.8 3.2 4 5 5.5 6.5
min 1.75 2.15 2.55 2.9 3.7 4.7 5.2 6.14
mw min 1.4 1.72 2.04 2.32 2.96 3.76 4.16 4.91
s max=nominal size 5 5.5 6 7 8 10 11 13
min 4.82 5.32 5.82 6.78 7.78 9.78 10.73 12.73
e ① min 5.45 6.01 6.58 7.66 8.79 11.05 12.12 14.38
* - - - - - - - -
per 999 units ≈ kg 0.72 0.384 0.514 0.81 1.23 2.5 3.12 5.2
Thread Size M10 M12 (M14) M16 (M18) M20 (M22) M24
d
P Pitch Coarse thread 1.5 1.75 2 2 2.5 2.5 2.5 3
Fine thread-1 1 1.5 1.5 1.5 1.5 2 1.5 2
Fine thread-0 1.25 1.25 / / 2 1.5 2 /
m max=nominal size 8 10 11 13 15 16 18 19
min 7.64 9.64 10.3 12.3 14.3 14.9 16.9 17.7
mw min 6.11 7.71 8.24 9.84 11.44 11.92 13.52 14.16
s max=nominal size 17 19 22 24 27 30 32 36
min 16.73 18.67 21.67 23.67 26.16 29.16 31 35
e ① min 18.9 21.1 24.49 26.75 29.56 32.95 35.03 39.55
* - - - - - - - -
per 999 units ≈ kg 11.6 17.3 25 33.3 49.4 64.4 79 110
Thread Size (M27) M30 (M33) M36 (M39) M42 (M45) M48
d
P Pitch Coarse thread 3 3.5 3.5 4 4 4.5 4.5 5
Fine thread-1 2 2 2 3 3 3 3 3
Fine thread-2 / / / / / / / /
m max=nominal size 22 24 26 29 31 34 36 38
min 20.7 22.7 24.7 27.4 29.4 32.4 34.4 36.4
mw min 16.56 18.16 19.76 21.92 23.52 25.9 27.5 29.1
s max=nominal size 41 46 50 55 60 65 70 75
min 40 45 49 53.8 58.8 63.1 68.1 73.1
e ① min 45.2 50.85 55.37 60.79 66.44 71.3 76.95 82.6
* - - - - - - - -
per 1000 units ≈ kg 165 223 288 393 502 652 800 977
Thread Size (M52) M56 (M60) M64 (M68) M72 (M76) M80
d
P Pitch Coarse thread 5 5.5 5.5 6 6 / / /
Fine thread-1 3 4 4 4 / 6 6 6
Fine thread-2 / / / / 4 4 4 4
m max=nominal size 42 45 48 51 54 58 61 64
min 40.4 43.4 46.4 49.1 52.1 56.1 59.1 62.1
mw min 32.3 34.7 37.1 39.3 41.7 44.9 47.3 49.7
s max=nominal size 80 85 90 95 100 105 110 115
min 78.1 82.8 87.8 92.8 97.8 102.8 107.8 112.8
e ① min 88.25 93.56 99.21 104.86 110.51 116.16 121.81 127.46
* - - - - - - - -
per 1000 units ≈ kg 1220 1420 1690 1980 2300 2670 3040 3440
Thread Size (M85) M90 M100 M110 M125 M140 M160
d
P Pitch Coarse thread / / / / / / /
Fine thread-1 6 6 6 6 6 6 6
Fine thread-2 4 4 4 4 4 / /
m max=nominal size 68 72 80 88 100 112 128
min 66.1 70.1 78.1 85.8 97.8 109.8 125.5
mw min 52.9 56.1 62.5 68.6 78.2 87.8 100
s max=nominal size 120 130 145 155 180 200 230
min 117.8 127.5 142.5 152.5 177.5 195.4 225.4
e ① min 133.11 144.08 161.02 172.32 200.57 220.8 254.7
* - - - 170 196 216 248
per 1000 units ≈ kg 3930 4930 6820 8200 13000 17500 26500

Characteristics

  1. Designed in accordance with the DIN 934 standard, hexagonal nuts exhibit high compatibility. Their standard hexagonal heads enable the use of standard wrenches or screwdrivers for tightening and loosening, significantly enhancing work efficiency and convenience.

  2. DIN 934 nuts feature a full thread design, extending continuously from the head to the bottom. This allows for a better engagement with bolts or screws, providing a stronger clamping force and secure hold.

  3. DIN 934 nuts, commonly crafted from carbon steel or alloy steel, boast high strength and durability, enabling them to withstand substantial tensile and shear forces. This ensures reliability and stability in various applications.

  4. The adherence to the DIN 934 standard grants these nuts excellent interchangeability, enabling their seamless integration and application across diverse industries and countries.

Advantages

  1. Thanks to their high strength and full thread design, DIN 934 nuts offer exceptional reliability, providing robust clamping force that ensures the safe and stable operation of mechanical equipment.

  2. The standard hexagonal head and full thread design make installation and disassembly faster, more convenient, and highly adaptable, resulting in reduced work time and costs.

  3. Due to their adherence to the DIN 934 standard, coupled with their high strength and reliability, DIN 934 nuts are versatile and suitable for various industries and fields, including mechanical engineering, shipbuilding, automotive manufacturing, construction, and aerospace.

  4. As DIN 934 is an international standard, its use and maintenance are more convenient, reducing maintenance costs.

Application Scenarios

  1. Mechanical Engineering: In the mechanical engineering industry, DIN 934 nuts are widely used for fixing and connecting various mechanical parts and equipment, such as machine tools, pumps, and valves.

  2. Automotive Manufacturing: In the automotive manufacturing process, DIN 934 nuts are used for assembling and fixing components such as the car body, engine, and chassis, ensuring the safety and reliability of the vehicle.

  3. Construction: In the construction industry, DIN 934 nuts are used for connecting and fixing steel structures, bridges, and pipelines, ensuring the stability and safety of buildings.

  4. Aerospace: In the aerospace industry, DIN 934 nuts are used for assembling and fixing equipment such as aircraft and rockets, enduring extreme temperatures and pressure conditions.
