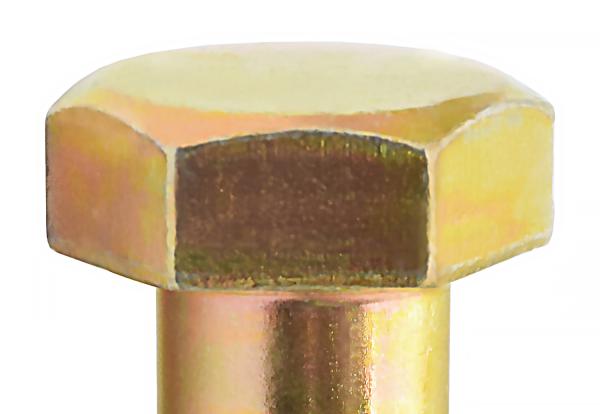

Carbon Steel 35K Alloy Steel 40Cr Hexagon Head Bolts DIN931-1 ISO4014
Carbon Steel 35K Alloy Steel 40Cr Hexagon Head Bolts DIN931-1 ISO4014
Carbon Steel 35K Alloy Steel 40Cr Hexagon Head Bolts DIN931-1 ISO4014
Carbon Steel 35K Alloy Steel 40Cr Hexagon Head Bolts DIN931-1 ISO4014
Carbon Steel 35K Alloy Steel 40Cr Hexagon Head Bolts DIN931-1 ISO4014
Carbon Steel 35K Alloy Steel 40Cr Hexagon Head Bolts DIN931-1 ISO4014
Carbon Steel 35K Alloy Steel 40Cr Hexagon Head Bolts DIN931-1 ISO4014
Carbon Steel 35K Alloy Steel 40Cr Hexagon Head Bolts DIN931-1 ISO4014
Carbon Steel 35K Alloy Steel 40Cr Hexagon Head Bolts DIN931-1 ISO4014
Carbon Steel 35K Alloy Steel 40Cr Hexagon Head Bolts DIN931-1 ISO4014
Specifications
Brand Name :
YingYan
Model Number :
M6-M30
Certification :
ISO9000
Place of Origin :
JIANG SU PROVINCE CHINA
MOQ :
1000pieces
Price :
Negotiable
Packaging Details :
Small Boxes, Plastic Bags, Bulk in Cartons,
Name :
Hexagon head bolts partially threaded
Standard :
GB/DIN/ASME/EN/ISO&etc.
Surface treatment :
Plain, black, zinc plated/according to your requirement
Size :
M6-M30
Length :
30mm-300mm
Grade :
8.8/10.9 Ect
Materials :
Alloy steel 40Cr/Carbon steel 35K
Head type :
Hexagonal Head
Surface :
Galvanzied
Color :
Yellow
Description

DIN931 Hexagonal Head Bolts with Partial Thread are bolts that adhere to the technical specifications set by the Deutsches Institut für Normung (DIN), the German Institute for Standardization. These bolts exhibit several key features and benefits, making them suitable for various engineering applications.

Structural Characteristics:

  • Head Design: The bolts feature a hexagonal head, which allows for easy installation and removal using tools such as wrenches or socket wrenches.
  • Thread Section: The bolts have a partial thread, meaning that only a portion of the shank is threaded. This design is suitable for applications where the bolt needs to pass through a component and be tightened with a nut on the other side.

Standardization and Specifications:

  • DIN931 Standard: The bolts comply with the DIN931 standard, ensuring consistency and reliability in terms of dimensions, materials, and performance.
  • Range of Sizes: They are available in a wide range of thread sizes from M1.6mm to M64mm and shank lengths from L12mm to L500mm, catering to diverse engineering needs.

Materials and Performance:

  • Material Requirements: DIN931 hexagonal head bolts are typically made from high-strength materials such as carbon steel, alloy steel, or stainless steel. These materials offer excellent mechanical properties, corrosion resistance, and durability.
  • Performance Grades: Depending on the material and size, the bolts have various performance grades, such as 8.8 and 10.9 for steel bolts and A2-70 and A4-70 for stainless steel bolts.

Application Areas:

  • DIN931 hexagonal head bolts with partial thread find applications in various industries, including machinery, automotive, shipbuilding, and construction. They are used for fastening structural components, connecting pipes, installing equipment, and other purposes, ensuring secure and reliable connections.

Advantages:

  • Easy Installation and Removal: The hexagonal head design facilitates efficient rotation using tools, improving work efficiency.
  • Flexibility: The partial thread design allows for flexibility in different connection scenarios.
  • Reliability and Durability: The use of high-strength materials and adherence to DIN931 standards ensures the bolts' reliability and durability, meeting the demands of various engineering applications.

Carbon Steel 35K Alloy Steel 40Cr Hexagon Head Bolts DIN931-1 ISO4014

Thread Size M1.6 M2 M2.5 M3 (M3.5) M4 M5 M6 (M7) M8 M10 M12
d
P Thread Pitch 0.35 0.4 0.45 0.5 0.6 0.7 0.8 1 1 1.25 1.5 1.75
b Ref. L≤125 9 10 11 12 13 14 16 18 20 22 26 30
125＜L≤200 - - - - - - 22 24 26 28 32 36
L＞200 - - - - - - - - - - 45 49
c min 0.1 0.1 0.1 0.15 0.15 0.15 0.15 0.15 0.15 0.15 0.15 0.15
max 0.25 0.25 0.25 0.4 0.4 0.4 0.5 0.5 0.5 0.6 0.6 0.6
da max 2 2.6 3.1 3.6 4.1 4.7 5.7 6.8 7.8 9.2 11.2 13.7
ds max=nominal size 1.6 2 2.5 3 3.5 4 5 6 7 8 10 12
min Grade A 1.46 1.86 2.36 2.86 3.32 3.82 4.82 5.82 6.78 7.78 9.78 11.73
Grade B - - - - - - - - - - - -
dw min Grade A 2.4 3.2 4.1 4.6 5.1 5.9 6.9 8.9 9.8 11.6 15.6 17.4
Grade B - - - - - - - - - - - -
e min Grade A 3.41 4.32 5.45 6.01 6.58 7.66 8.79 11.05 12.12 14.38 18.9 21.1
Grade B - - - - - - - - - - - -
k Nominal Size 1.1 1.4 1.7 2 2.4 2.8 3.5 4 4.8 5.3 6.4 7.5
Grade A min 0.98 1.28 1.58 1.88 2.28 2.68 3.35 3.85 4.65 5.15 6.22 7.32
max 1.22 1.52 1.82 2.12 2.52 2.92 3.65 4.15 4.95 5.45 6.58 7.68
Grade B min - - - - - - - - - - - -
max - - - - - - - - - - - -
k1 min 0.7 0.9 1.1 1.3 1.6 1.9 2.28 2.63 3.19 3.54 4.28 5.05
r min 0.1 0.1 0.1 0.1 0.1 0.2 0.2 0.25 0.25 0.4 0.4 0.6
s max=nominal size 3.2 4 5 5.5 6 7 8 10 11 13 17 19
min Grade A 3.02 3.82 4.82 5.32 5.82 6.78 7.78 9.78 10.73 12.73 16.73 18.67
Grade B - - - - - - - - - - - -
Length of Thread b - - - - - - - - - - - -
Thread Size (M14) M16 (M18) M20 (M22) M24 (M27) M30 (M33) M36 (M39)
d
P Thread Pitch 2 2 2.5 2.5 2.5 3 3 3.5 3.5 4 4
b Ref. L≤125 34 38 42 46 50 54 60 66 72 78 84
125＜L≤200 40 44 48 52 56 60 66 72 78 84 90
L＞200 53 57 61 65 69 73 79 85 91 97 103
c min 0.15 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.3
max 0.6 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 1
da max 15.7 17.7 20.2 22.4 24.4 26.4 30.4 33.4 36.4 39.4 42.4
ds max=nominal size 14 16 18 20 22 24 27 30 33 36 39
min Grade A 13.73 15.73 17.73 19.67 21.67 23.67 - - - - -
Grade B - 15.57 17.57 19.48 21.48 23.48 26.48 29.48 32.38 35.38 38.38
dw min Grade A 20.5 22.5 25.3 28.2 30 33.6 - - - - -
Grade B - 22 24.8 27.7 29.5 33.2 38 42.7 46.6 51.1 55.9
e min Grade A 24.49 26.75 30.14 33.53 35.72 39.98 - - - - -
Grade B - 26.17 29.56 32.95 35.03 39.55 45.2 50.85 55.37 60.79 66.44
k Nominal Size 8.8 10 11.5 12.5 14 15 17 18.7 21 22.5 25
Grade A min 8.62 9.82 11.28 12.28 13.78 14.78 - - - - -
max 8.98 10.18 11.72 12.72 14.22 15.22 - - - - -
Grade B min - 9.71 11.15 12.15 13.65 14.65 16.65 18.28 20.58 22.08 24.58
max - 10.29 11.85 12.85 14.35 15.35 17.35 19.12 21.42 22.92 25.42
k1 min 5.96 6.8 7.8 8.5 9.6 10.3 11.7 12.8 14.4 15.5 17.2
r min 0.6 0.6 0.6 0.8 0.8 0.8 1 1 1 1 1
s max=nominal size 22 24 27 30 32 36 41 46 50 55 60
min Grade A 21.67 23.67 26.67 29.67 31.61 35.38 - - - - -
Grade B - 23.16 26.16 29.16 31 35 40 45 49 53.8 58.8
Length of Thread b - - - - - - - - - - -
