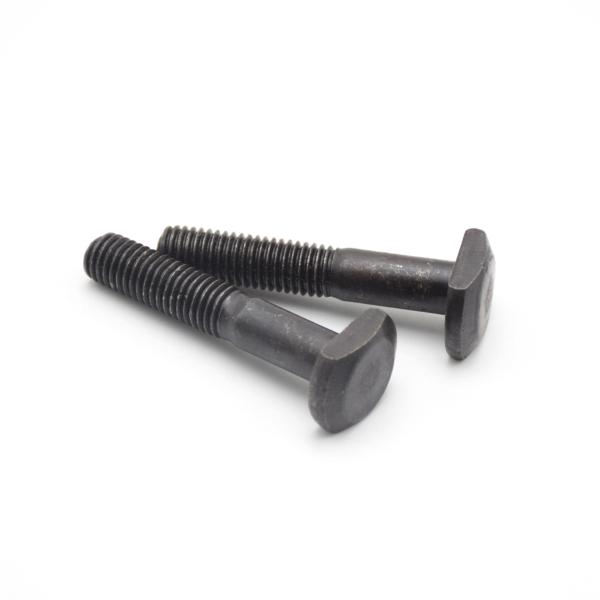

T-Bolt Bolts For T-Slot Plain Class 8.8 Carbon Steel 35K
T-Bolt Bolts For T-Slot Blacked Fine pitch thread Class 8.8,10.9 Carbon Steel 35K/40C

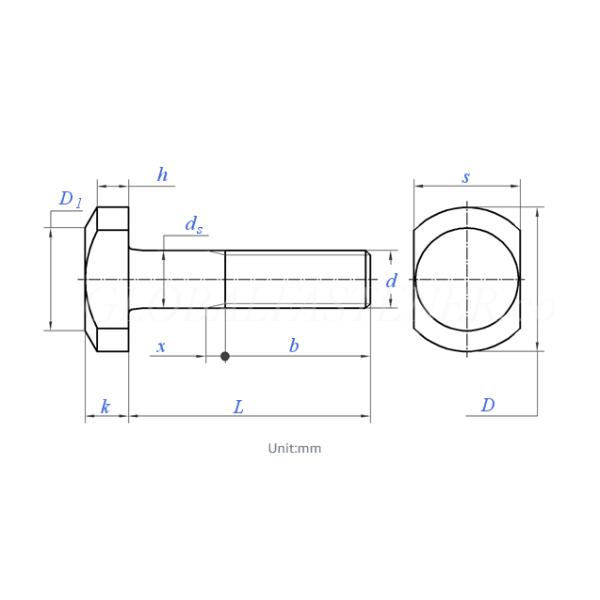

Thread Size | M5 | M6 | M8 | M10 | M12 | M16 | M20 | M24 | M30 | M36 | M42 | M48 |
d | | | | | | | | | | | | |
P | Pitch | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 |
b | L≤125 | 16 | 18 | 22 | 26 | 30 | 38 | 46 | 54 | 66 | 78 | / | / |
125<L≤200 | / | / | 28 | 32 | 36 | 44 | 52 | 60 | 72 | 84 | 96 | 108 |
L>200 | / | / | / | / | / | 57 | 65 | 73 | 85 | 97 | 109 | 121 |
ds | max | 5 | 6 | 8 | 10 | 12 | 16 | 20 | 24 | 30 | 36 | 42 | 48 |
min | 4.7 | 5.7 | 7.64 | 9.64 | 11.57 | 15.57 | 19.48 | 23.48 | 29.48 | 35.38 | 41.38 | 47.38 |
D | 12 | 16 | 20 | 25 | 30 | 38 | 46 | 58 | 75 | 85 | 95 | 105 |
k | max | 4.24 | 5.24 | 6.24 | 7.29 | 8.89 | 11.95 | 14.35 | 16.35 | 20.42 | 24.42 | 28.42 | 32.5 |
min | 3.76 | 4.76 | 5.76 | 6.71 | 8.31 | 11.25 | 13.65 | 15.65 | 19.58 | 23.58 | 27.58 | 31.5 |
h | 2.8 | 3.4 | 4.1 | 4.8 | 6.5 | 9 | 10.4 | 11.8 | 14.5 | 18.5 | 22 | 26 |
s | max | 9 | 12 | 14 | 18 | 22 | 28 | 34 | 44 | 56 | 67 | 76 | 86 |
min | 8.64 | 11.57 | 13.57 | 17.57 | 21.16 | 27.16 | 33 | 43 | 54.8 | 65.1 | 74.1 | 83.8 |
x | max | 2 | 2.5 | 3.2 | 3.8 | 4.2 | 5 | 6.3 | 7.5 | 8.8 | 10 | 11.3 | 12.5 |
Characteristics:
- T-slot bolts are specifically designed for T-slots and can be closely fitted with connecting parts, which is beautiful and safe.
- Crafted from high-strength materials, these bolts possess the capability to withstand significant tensile and shear forces.
- Thanks to their specialized design tailored for T-slots, they can be installed into the slots quickly and securely, thereby enhancing work efficiency.
- Manufactured to standard specifications, these bolts offer excellent assurance in terms of dimensions and quality, thereby ensuring good universality and interchangeability.
Advantages:
- T-slot bolts provide a stable and effective connection, ensuring the safe and stable operation of mechanical equipment.
- Designed specifically for T-slots, they facilitate easy installation and removal, making adjustments to equipment or structures a breeze.
- Crafted from high-strength materials, these bolts boast excellent durability and a prolonged service life.
- These T-slot bolts can be utilized in a wide range of applications that require T-slot connections, including machine tools, fixtures, workbenches, and more, demonstrating their versatility and broad applicability.
Uses:
- Machining: In the field of machining, T-Slot bolts are often used to fix workpieces, fixtures, etc., ensuring stability and precision during the machining process.
- Equipment Assembly: They are used to connect various components in mechanical equipment assembly, maintaining the overall stability of the equipment.
- Industrial Manufacturing: Widely used in various industrial manufacturing fields such as automobile manufacturing, shipbuilding, aerospace, etc.
- Other Fields: Also applicable in construction, bridges, and other occasions that require high-strength connections.
