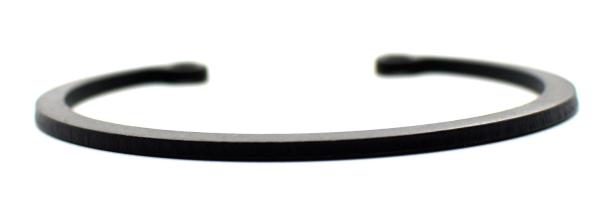

DIN472 65Mn Black Dacromet Retaining Rings For Bores - Normal Type Φ35-Φ98

DIN472 65Mn Black Dacromet Retaining Rings For Bores Normal Type Φ35 - Φ98

Nominal Diameter 8 9 10 11 12 13 14
d ①
s max 0.8 0.8 1 1 1 1 1
min 0.75 0.75 0.94 0.94 0.94 0.94 0.94
dc max 9.06 10.16 11.16 12.16 13.36 14.46 15.46
min 8.6 9.7 10.7 11.7 12.9 14 15
a max 2.4 2.5 3.2 3.3 3.4 3.6 3.7
b ≈ 1.1 1.3 1.4 1.5 1.7 1.8 1.9
d1 min 1 1 1.2 1.2 1.5 1.5 1.7
d2 3 3.7 3.3 4.1 4.9 5.4 6.2
per 1000 units ≈ kg 0.14 0.15 0.18 0.31 0.37 0.42 0.52
Nominal Diameter 15 16 17 18 19 20 21
d ①
s max 1 1 1 1 1 1 1
min 0.94 0.94 0.94 0.94 0.94 0.94 0.94
dc max 16.56 17.66 18.72 19.92 20.92 21.92 22.92
min 16.1 17.2 18.17 19.37 20.37 21.37 22.37
a max 3.7 3.8 3.9 4.1 4.1 4.2 4.2
b ≈ 2 2 2.1 2.2 2.2 2.3 2.4
d1 min 1.7 1.7 1.7 2 2 2 2
d2 7.2 8 8.8 9.4 10.4 11.2 12.2
per 1000 units ≈ kg 0.56 0.6 0.65 0.74 0.83 0.9 1
Nominal Diameter 22 24 25 26 28 30 31
d ①
s max 1 1.2 1.2 1.2 1.2 1.2 1.2
min 0.94 1.14 1.14 1.14 1.14 1.14 1.14
dc max 23.92 26.32 27.32 28.32 30.6 32.6 33.9
min 23.37 25.69 26.69 27.69 29.85 31.85 33.15
a max 4.2 4.4 4.5 4.7 4.8 4.8 5.2
b ≈ 2.5 2.6 2.7 2.8 2.9 3 3.2
d1 min 2 2 2 2 2 2 2.5
d2 13.2 14.8 15.5 16.1 17.9 19.9 20
per 1000 units ≈ kg 1.1 1.42 1.5 1.6 1.8 2.06 2.1
Nominal Diameter 32 34 35 36 37 38 40
d ①
s max 1.2 1.5 1.5 1.5 1.5 1.5 1.75
min 1.14 1.44 1.44 1.44 1.44 1.44 1.69
dc max 34.9 37 38.3 39.3 40.3 41.3 44.4
min 34.15 36.25 37.55 38.55 39.55 40.55 43.11
a max 5.4 5.4 5.4 5.4 5.5 5.5 5.8
b ≈ 3.2 3.3 3.4 3.5 3.6 3.7 3.9
d1 min 2.5 2.5 2.5 2.5 2.5 2.5 2.5
d2 20.6 22.6 23.6 24.6 25.4 26.4 27.8
per 1000 units ≈ kg 2.21 3.2 3.54 3.7 3.74 3.9 4.7
Nominal Diameter 42 45 47 48 50 52 55
d ①
s max 1.75 1.75 1.75 1.75 2 2 2
min 1.69 1.69 1.69 1.69 1.93 1.93 1.93
dc max 46.4 49.4 51.6 52.6 55.3 57.3 60.3
min 45.11 48.11 50.04 51.04 53.74 55.74 58.74
a max 5.9 6.2 6.4 6.4 6.5 6.7 6.8
b ≈ 4.1 4.3 4.4 4.5 4.6 4.7 5
d1 min 2.5 2.5 2.5 2.5 2.5 2.5 2.5
d2 29.6 32 33.5 34.5 36.3 37.9 40.7
per 1000 units ≈ kg 5.4 6 6.1 6.7 7.3 8.2 8.3
Nominal Diameter 56 58 60 62 63 65 68
d ①
s max 2 2 2 2 2 2.5 2.5
min 1.93 1.93 1.93 1.93 1.93 2.43 2.43
dc max 61.3 63.3 65.3 67.3 68.3 70.3 73.6
min 59.74 61.74 63.74 65.74 66.74 68.74 72.04
a max 6.8 6.9 7.3 7.3 7.3 7.6 7.8
b ≈ 5.1 5.2 5.4 5.5 5.6 5.8 6.1
d1 min 2.5 2.5 2.5 2.5 2.5 3 3
d2 41.7 43.5 44.7 46.7 47.7 49 51.6
per 1000 units ≈ kg 8.7 10.5 11.1 11.2 12.4 14.3 16
Nominal Diameter 70 72 75 78 80 82 85
d ①
s max 2.5 2.5 2.5 2.5 2.5 2.5 3
min 2.43 2.43 2.43 2.43 2.43 2.43 2.92
dc max 75.6 77.6 80.6 83.8 86.8 88.8 91.8
min 74.04 76.04 79.04 81.96 84.96 86.96 89.96
a max 7.8 7.8 7.8 8.5 8.5 8.5 8.6
b ≈ 6.2 6.4 6.6 6.8 7 7 7.2
d1 min 3 3 3 3 3 3 3.5
d2 53.6 55.6 58.6 60.1 62.1 64.1 66.9
per 1000 units ≈ kg 16.5 18.1 18.8 20.4 22 24 25.3
Nominal Diameter 88 90 92 95 98 100 102
d ①
s max 3 3 3 3 3 3 4
min 2.92 2.92 2.92 2.92 2.92 2.92 3.9
dc max 94.8 96.8 98.8 101.8 104.8 106.8 109.3
min 92.96 94.96 96.96 99.96 102.96 104.96 107.46
a max 8.6 8.6 8.7 8.8 9 9.2 9.5
b ≈ 7.4 7.6 7.8 8.1 8.3 8.4 8.5
d1 min 3.5 3.5 3.5 3.5 3.5 3.5 3.5
d2 69.9 71.9 73.7 76.5 79 80.6 82
per 1000 units ≈ kg 28 31 32 35 37 38 55
Nominal Diameter 105 108 110 112 115 120 125
d ①
s max 4 4 4 4 4 4 4
min 3.9 3.9 3.9 3.9 3.9 3.9 3.9
dc max 113.3 116.3 118.3 120.3 123.5 128.5 133.5
min 111.46 114.46 116.46 118.46 121.37 126.37 131.37
a max 9.5 9.5 10.4 10.5 10.5 11 11
b ≈ 8.7 8.9 9 9.1 9.3 9.7 10
d1 min 3.5 3.5 3.5 3.5 3.5 3.5 4
d2 85 88 88.2 90 93 96.9 101.9
per 1000 units ≈ kg 56 60 64.5 72 74.5 77 79
Nominal Diameter 130 135 140 145 150 155 160
d ①
s max 4 4 4 4 4 4 4
min 3.9 3.9 3.9 3.9 3.9 3.9 3.9
dc max 138.5 143.5 148.5 153.5 159.5 165.5 170.5
min 136.37 141.37 146.37 151.37 157.37 163.37 168.37
a max 11 11.2 11.2 11.4 12 12 13
b ≈ 10.2 10.5 10.7 10.9 11.2 11.4 11.6
d1 min 4 4 4 4 4 4 4
d2 106.9 111.5 116.5 121 124.8 129.8 132.7
per 1000 units ≈ kg 82 84 87.5 93 105 107 110
Nominal Diameter 165 170 175 180 185 190 195
d ①
s max 4 4 4 4 4 4 4
min 3.9 3.9 3.9 3.9 3.9 3.9 3.9
dc max 176 181 186.2 191.2 196.2 201.2 206.2
min 173.87 178.87 183.78 188.78 193.78 198.78 203.78
a max 13 13.5 13.5 14.2 14.2 14.2 14.2
b ≈ 11.8 12.2 12.7 13.2 13.7 13.8 13.8
d1 min 4 4 4 4 4 4 4
d2 137.7 141.6 146.6 150.2 155.2 160.2 165.2
per 1000 units ≈ kg 125 140 150 165 170 175 183
Nominal Diameter 200 210 220 230 240 250 260
d ①
s max 4 5 5 5 5 5 5
min 3.9 4.88 4.88 4.88 4.88 4.88 4.88
dc max 211.2 223.7 233.7 243.7 254 264 277
min 208.78 221.28 231.28 241.28 251.19 261.19 274.19
a max 14.2 14.2 14.2 14.2 14.2 14.2 16.2
b ≈ 14 14 14 14 14 14 16
d1 min 4 4 4 4 4 4 5
d2 170.2 180.2 190.2 200.2 210.2 220.2 226
per 1000 units ≈ kg 195 270 315 330 345 360 375
Nominal Diameter 270 280 290 300
d ①
s max 5 5 5 5
min 4.88 4.88 4.88 4.88
dc max 287 297 307 317
min 284.19 294.19 304.19 314.19
a max 16.2 16.2 16.2 16.2
b ≈ 16 16 16 16
d1 min 5 5 5 5
d2 236 246 256 266
per 1000 units ≈ kg 388 400 415 435

Characteristics:

  • Standard Sizes: These retaining rings typically come in a range of standard sizes, allowing for the selection of a suitable ring based on the axle diameter and the size of the part needing fixation.
  • Simple Structure: The retaining ring is usually made of a circular metal sheet with an opening in the middle, enabling easy installation on the axle.
  • Easy Installation: The retaining ring can be installed onto the axle by pushing axially or tapping in, requiring no special tools or equipment.
  • Diverse Materials: Depending on the application environment and requirements, retaining rings can be made from various materials such as stainless steel, carbon steel, copper alloys, etc.

Advantages:

  • Effective Fixation: Retaining rings effectively prevent parts from moving or falling off the axle, ensuring stability and reliability of the mechanical system.
  • Low Cost: Due to their simple structure, the manufacturing cost of retaining rings is relatively low, making them suitable for mass production.
  • High Adaptability: Retaining rings can adapt to various axle diameters and part sizes, demonstrating strong versatility.
  • Easy Maintenance: Both installation and removal of retaining rings are relatively straightforward, facilitating equipment maintenance and part replacements.

Applicable Scenarios:

  • Transmission Parts on Axles: In transmission systems, such as gears and pulley wheels, retaining rings can be used to fix parts onto axles.
  • Bearing Fixation: In some applications, it is necessary to ensure the stability of bearings on axles, where retaining rings come into play.
  • Positioning Elements: Retaining rings can also serve as positioning elements, ensuring accurate relative positions of other parts on axles.
  • Frequent Part Replacement Scenarios: Due to their ease of installation and removal, retaining rings are particularly suitable for scenarios requiring frequent part replacements, such as in test equipment and testing benches.
