Waterproof Fast Electric Piston 12 Volt DC Stainless Steel Tube 900mm Stroke
Waterproof Fast Electric Piston 12 Volt DC Stainless Steel Tube 900mm Stroke
Waterproof Fast Electric Piston 12 Volt DC Stainless Steel Tube 900mm Stroke
Waterproof Fast Electric Piston 12 Volt DC Stainless Steel Tube 900mm Stroke
Waterproof Fast Electric Piston 12 Volt DC Stainless Steel Tube 900mm Stroke
Waterproof Fast Electric Piston 12 Volt DC Stainless Steel Tube 900mm Stroke
Specifications
Brand Name :
OEM
Model Number :
Fast Electric Piston
Certification :
CE
Place of Origin :
China
MOQ :
10pcs linear actuator
Payment Terms :
T/T, Western Union
Supply Ability :
2000pcs linear actuator monthly
Delivery Time :
7-10 work days
Packaging Details :
2pcs linear actuator per carton box
Price :
Negotiable
Voltage :
12V
Max load :
12000N
Material :
Stainless steel piston rod
Limit switch :
built in at both ends
Feedback :
hall sensor or pot
Motor type :
Brush DC motor
Stroke :
900mm
Feature :
safe and reliable
Description

Power Linear Actuator 12volt dc Stainless steel tube, 900mm stroke 4000N load Electric Linear Actuator Waterproof

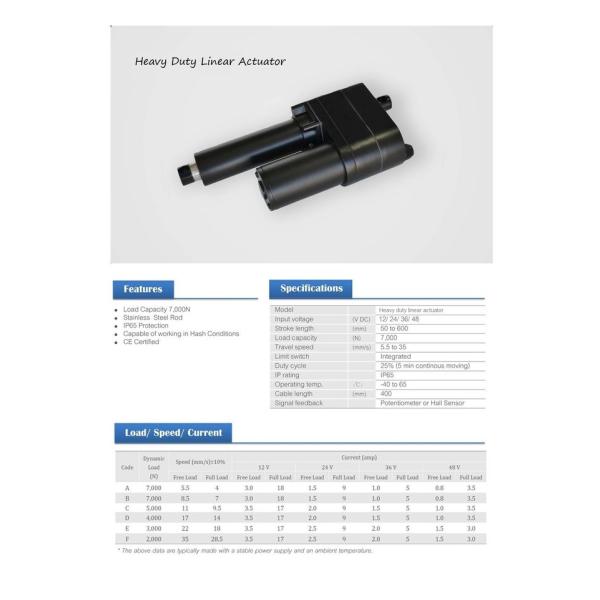

Specification of Heavy Duty Linear Actuator

Item: Linear actuator

Housing material: Steel

Motor Type: Permanent magnet brushed DC motor

Input voltage: 12V/24V/36V/48V

Drive system type: Gear

Nut material: POM /Brass

Rated load: 7000N

Max stroke: 600mm

Feedback signal: Optional (potentiometer)

Finish: Power Coated

Duty cycle: 25%

Limit switches: Built-in

Load & Speed of Heavy duty linear actuator

Heavy duty linear actuator Load±10％(N) Speed±2(mm/S)
Load 7,000 5,000 4,000 3,000 2,000
Speed 5.5 11 17 22 35

More information about the Heavy duty linear actuator


Waterproof Fast Electric Piston 12 Volt DC Stainless Steel Tube 900mm Stroke

Waterproof Fast Electric Piston 12 Volt DC Stainless Steel Tube 900mm Stroke

Why choose our company?

1. Professional R&D team, advanced design concept
2. Modern production equipment and reliable production process
3. Full set of testing equipment to ensure product's performance
4. Strict quality control process
5. Considerate after service

How can you find the right linear actuator?

When determining a design for your linear actuator, there are countless factors to take into consideration.

One of the first things you'll need to determine is the viability of standard linear actuator designs for your project.

If standard can't be made to work efficiently, it's time to start looking at custom options.

· Size

· Input voltage

· Load speed

· Load capacity in lbs/N

· Environment

· IP rate

· Production

· Material

For example:

model# heavy duty linear actuator
stroke (mm) 100
load (kg) 400
speed with free load (mm/s) 17
speed with full load (mm/s) 14
retracted length (mm) 350
voltage (vdc) 12
limit switches built in at both ends
signal feedback potentiometer
material aluminum alloy rod
protection rate IP65
warranty 12 months
Qty 2 50 200
lead time 8-10 work days 15 work days 15 work days
