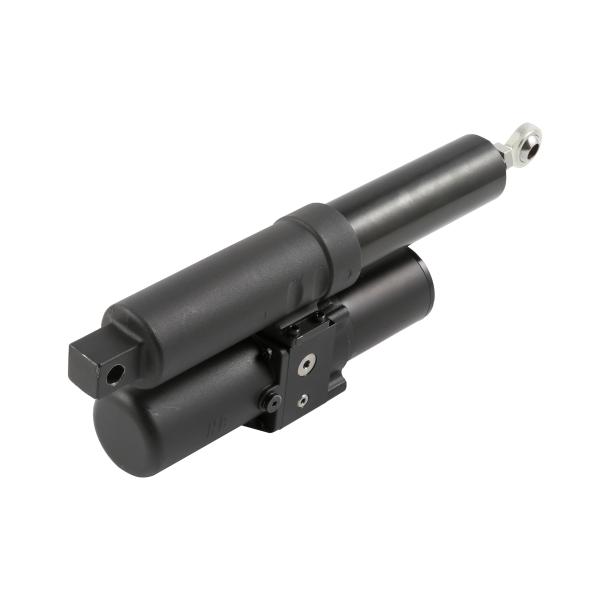

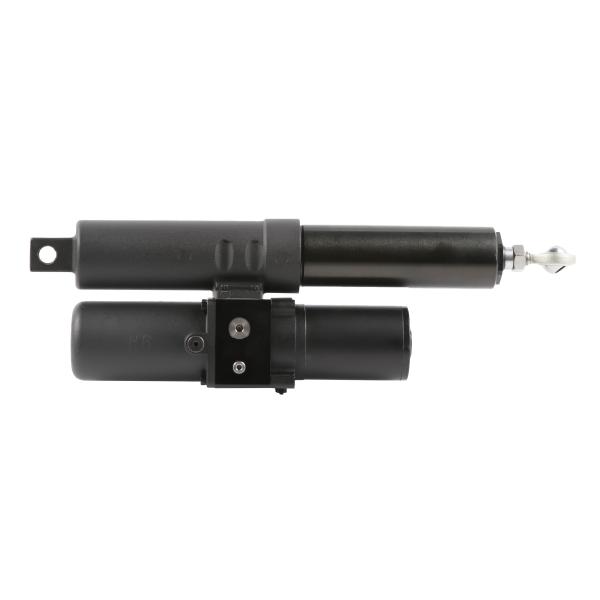

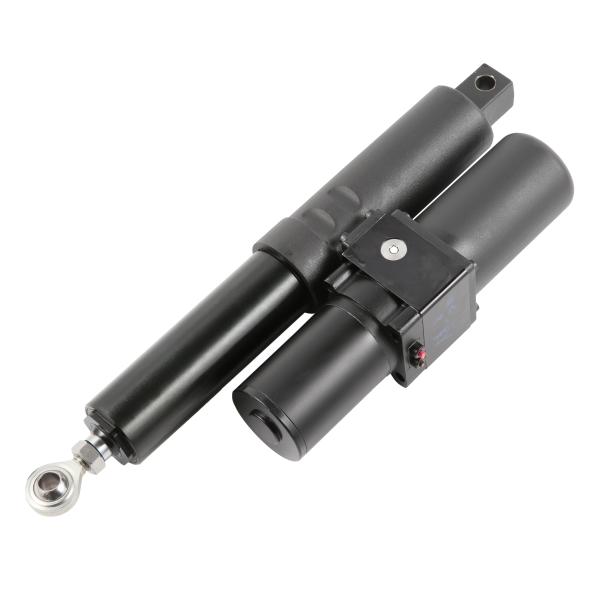

Electric hydraulic linear actuator is available with a range of options for motor, pump, bore and stroke length, making the new system an ideal choice for machine builders looking for a simple and efficient method of providing fast, high power linear motion.

Features of Electric Hydraulic Actuator:

- Overload relief valve protects system.

- Circuit breaker protects motor.

- Integrated check valve assures load-holding.

- Simple installation requires only power source and switch.

- The motion is safe and reliable.

- Manual release valve is designed for emergency.

- The structure is completely sealed to prevent leakage and dust.

- Small size and light weight makes flexible mounting in any position.

Specification of Electric Hydraulic Linear Actuator:

• Capacity 1800lbs
• Gap in between mounting eyes approx. 15 – 25 inches/ 380 – 630 mm
• Stroke approx. 10 inches / 250 mm
• Cylinder rod diameter .78 inches / 20 mm
• Mounting eye diameter 5/8″
• Power supply 12 VDC
• Rated voltage: DC 12 V
• Max Current: 40 A
• Duty Cycle: 25% max under full rated load.

Applications of Electric Hydraulic Actuator:

• ATV / UTV
  • Bed Tilt
  • Snow Plow Lift / Angle
  • 3 Point Hitch
• Lawn and Garden / Tractor
  • Mower Deck Lift
  • Agricultural / Turf Sprayers
• Material Handling Equipment
  • Lift / Tilt Tables
  • Drum Lifts
