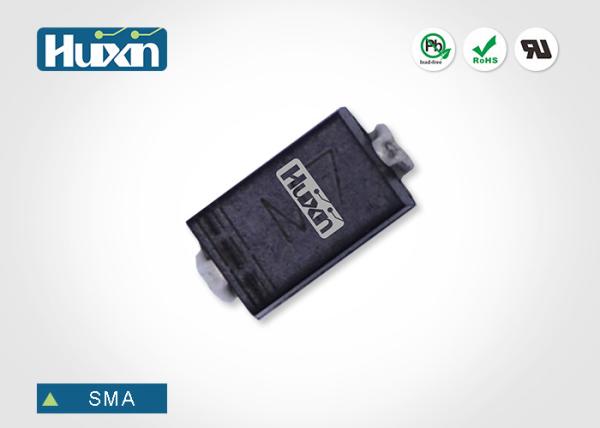

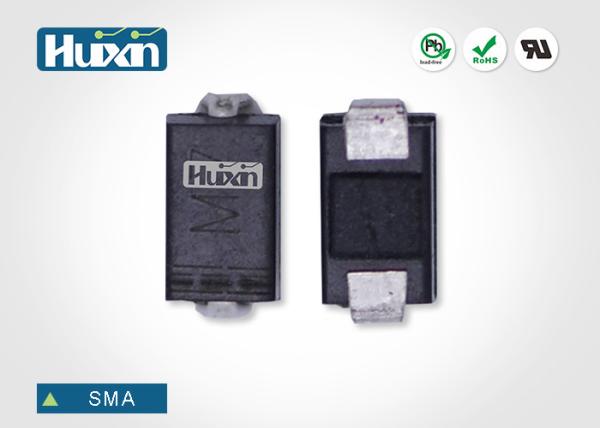

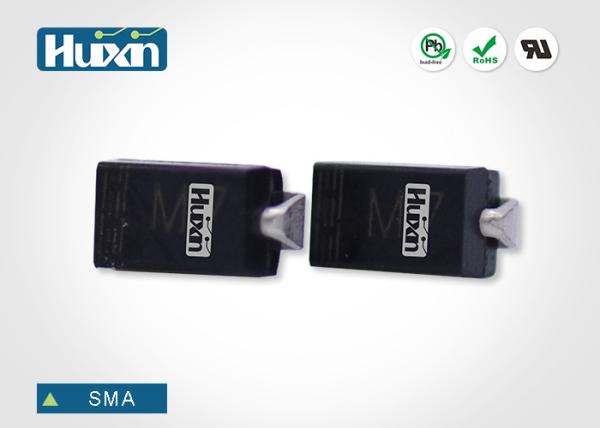

Ultrafast Recovery Fast Rectifier Diode US1M SMA 1.0Amp 1000 Volts
Ultrafast Recovery Fast Rectifier Diode US1M SMA 1.0Amp 1000 Volts
Ultrafast Recovery Fast Rectifier Diode US1M SMA 1.0Amp 1000 Volts
Ultrafast Recovery Fast Rectifier Diode US1M SMA 1.0Amp 1000 Volts
Ultrafast Recovery Fast Rectifier Diode US1M SMA 1.0Amp 1000 Volts
Ultrafast Recovery Fast Rectifier Diode US1M SMA 1.0Amp 1000 Volts
Specifications
Brand Name :
Huixin
Model Number :
US1M DO - 214AC (SMA)
Certification :
ISO14001 ISO9001 ISO/TS16949 UL
Place of Origin :
China
MOQ :
5000 PCS
Price :
Negotiable
Payment Terms :
T/T, Paypal, Cash
Supply Ability :
1 billion pieces/ Month
Delivery Time :
2-4Weeks
Packaging Details :
5000pcs/reel/box
Type :
Ultrafast Recovery Diodes
Package :
SMA
Package Type :
Surface Mount Diode
Sample Time :
5-7 Days
Max. Forward Current :
1A
Max. Reverse Voltage :
1000V
IFSM :
30A
Trr :
75ns
Application :
Power Supply Products
Weight :
0.07 grams
Description

US1M SMA 1.0Amp 1000Volts Fast Recovery Rectifiers For Power Supply Products

Ultrafast Recovery Fast Rectifier Diode US1M SMA 1.0Amp 1000 Volts

US1A~US1M SMA Datasheet.pdf

Features:

​

  • The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
  • Idea for printed circuit board
  • Glass passivated Junction chip
  • Low reverse leakage
  • High forward surge current capability
  • High temperature soldering guaranteed

Mechanical Data:

  • Case : Molded plastic body
  • Terminals : Solder plated, solderable per MIL-STD-750,Method 2026
  • Polarity : Polarity symbol marking on body
  • Mounting Position : Any
  • Weight : 0.0023 ounce, 0.07 grams

Maximum Ratings And Electrical Characteristics:

Ratings at 25 C ambient temperature unless otherwise specified.Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

Parameter SYMBOLS US1A US1B

US1D

 US1G US1AJ US1K US1M UNITS
Maximum Repetitive Peak Reverse Voltage VRRM 50 100

200

 400 600 800 1000 Volts
Maximum RMS Voltage VRMS 35 70

140

 280 420 560 700 Volts
Maximum DC Blocking Voltage VDC 50 100

200

 400 600 800 1000 Volts
Maximum Average Forward Rectifier Current at TL=100°C IF(AV)

1

 Amps
Peak Forward Surge Current ,8.3msSingle Half Sine-Wave Superimposed on rated load IFSM

30

 Amps
Maximum Instantaneous Forward Voltage at 1A VF

1

 1.4 1.7 Volts
Maximum DC Reverse Current at rated DC blocking voltage TA=25°C IR

5

 μA
TA=125°C

500
Maximum Reverse Recovery Time( Note 1) Trr 50

75

 ns

Note: 1.Reverse recovery condition IF =0.5A,IR =1.0A,Irr=0.25A

2.Measured at 1MHz and applied reverse voltage of 4.0V D.C.
