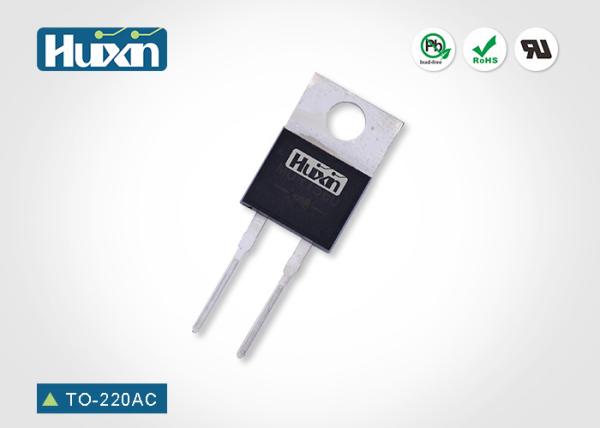

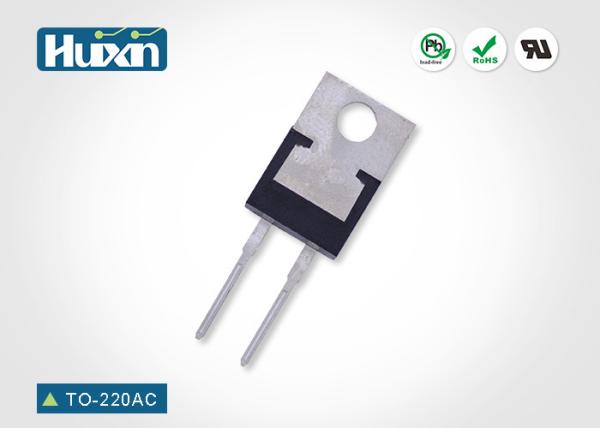

High Voltage Fast Recovery Diode Ultra Fast Rectifier Diodes 10A ITO - 220AC
High Voltage Fast Recovery Diode Ultra Fast Rectifier Diodes 10A ITO - 220AC
High Voltage Fast Recovery Diode Ultra Fast Rectifier Diodes 10A ITO - 220AC
High Voltage Fast Recovery Diode Ultra Fast Rectifier Diodes 10A ITO - 220AC
Specifications
Brand Name :
Huixin
Model Number :
MUR1008FCT ITO-220AC
Certification :
ISO14001 ISO9001 ISO/TS16949 UL
Place of Origin :
China
MOQ :
1000 PCS
Price :
Negotiable
Payment Terms :
T/T, Paypal, Cash
Supply Ability :
1 billion pieces/ Month
Delivery Time :
2-4Weeks
Packaging Details :
1000pcs/reel/box
Type :
Silicon Diodes
Package :
ITO-220AC
Package Type :
2 Pins
MPQ :
1000PCS
Sample Time :
5-7 Days
Max. Forward Current :
10A
Max. Reverse Voltage :
800V
Application :
Electronic products
Description

UltraFast Recovery Silicon Rectifiers Diodes 10A ITO - 220AC For High Voltage

High Voltage Fast Recovery Diode Ultra Fast Rectifier Diodes 10A ITO - 220AC

MUR1001FCT~MUR1010FCT ITO-220AC Datasheet.pdf

Features:

​

  • The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
  • Construction utilizes void-free molded plastic technique
  • Low reverse leakage
  • High forward surge current capability
  • High temperature soldering guaranteed

Mechanical Data:

  • Case : Molded plastic body
  • Terminals : Solder plated, solderable per MIL-STD-750,Method 2026
  • Polarity : Polarity symbol marking on body
  • Mounting Position : Any

Maximum Ratings And Electrical Characteristics:

Ratings at 25 C ambient temperature unless otherwise specified.Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

Parameter

SYMBOLS

MUR1001

FCT

MUR1002

FCT

MUR1004

FCT

MUR1006

FCT

MUR1008

FCT

MUR1010

FCT

 UNITS
Maximum Repetitive Peak Reverse Voltage

VRRM

 100 200 400 600 800 1000 Volts
Maximum RMS Voltage

VRMS

 70 140 280 420 560 800 Volts
Maximum DC Blocking Voltage

VDC

 100 200 400 600 800 1000 Volts
Maximum Average Forward Rectifier Current at Tc=110°C

IF(AV)

 10 Amps
Peak Forward Surge Current ,8.3msSingle Half Sine-Wave Superimposed on rated load

IFSM

 150 Amps
Maximum Instantaneous Forward Voltage at 5A

VF

 0.95 1.28 1.85 Volts
Maximum DC Reverse Current at rated DC blocking voltage TA=25°C

IR

 10 μA
TA=125°C 500
Maximum Reverse Recovery Time

Trr

 45 50 75 ns


Note: 1.Reverse recovery condition IF =0.5A,IR =1.0A,Irr=0.25A
