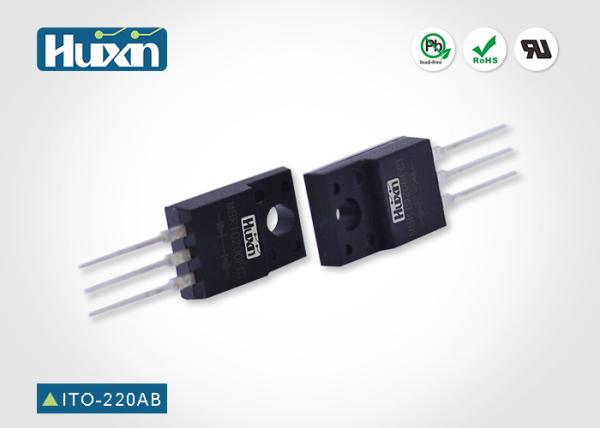

Dip 3 Pin ITO-220AB Fast Recovery Rectifier Diode Ultrafast Plastic Rectifier 20A 600V
Dip 3 Pin ITO-220AB Fast Recovery Rectifier Diode Ultrafast Plastic Rectifier 20A 600V
Dip 3 Pin ITO-220AB Fast Recovery Rectifier Diode Ultrafast Plastic Rectifier 20A 600V
Dip 3 Pin ITO-220AB Fast Recovery Rectifier Diode Ultrafast Plastic Rectifier 20A 600V
Specifications
Brand Name :
Huixin
Model Number :
MUR2060FCT ITO-220AB
Certification :
ISO14001 ISO9001 ISO/TS16949 UL
Place of Origin :
China
MOQ :
1000 PCS
Price :
Negotiable
Payment Terms :
T/T, Paypal, Cash
Supply Ability :
1 billion pieces/ Month
Delivery Time :
2-4Weeks
Packaging Details :
1000pcs/reel/box
Package :
ITO-220AB
Type :
Plastic Silicon Rectifier
MPQ :
1000PCS
Sample Time :
5-7 Days
Max. Forward Current :
20A
Max. Reverse Voltage :
600V
TRR :
35ns
Mounting position :
Any
Description

Dip 3Pin ITO - 220AB Fast Recovery Diodes 20A 600 Voltage Plastic Rectifier

MUR2005FCT~MUR2060FCT ITO-220AB Datasheet.pdf

Features:

​

  • The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
  • Low reverse leakage
  • High forward surge current capability
  • Low forward voltage,high efficiency
  • For use in low voltage,high frequency inverters
  • Dual rectifier consruction,positive center tap
  • High temperature soldering guaranteed

Mechanical Data:

  • Case : JEDEC (I)TO-22OAB molded plastic body
  • Terminals: Solder plated, solderable per MIL-STD-750, Method 2026
  • Finish: All external surfaces corrosion resistant and terminal leads are readily solderable
  • Mounting Position : Any

Maximum Ratings And Electrical Characteristics:

Ratings at 25 C ambient temperature unless otherwise specified.Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

Parameter SYMBOLS

MUR2005FCT

 MUR2010FCT MUR2020FCT MUR2030FCT MUR2040FCT MUR2060FCT UNITS
Maximum Repetitive Peak Reverse Voltage VRRM 50 100

200

 300 400 600 Volts
Maximum RMS Voltage VRMS 35 70

140

 210 280 420 Volts
Maximum DC Blocking Voltage VDC 50 100

200

 300 400 600 Volts
Maximum Average Forward Rectifier Current at TL=100°C IF(AV) 20 Amps
Peak Forward Surge Current ,8.3msSingle Half Sine-Wave Superimposed on rated load IFSM 100 Amps
Maximum Instantaneous Forward Voltage at 10A VF

0.98

 1.4 2.2 Volts
Maximum DC Reverse Current at rated DC blocking voltage TA=25°C IR

10

 μA
TA=125°C

500
Maximum Reverse Recovery Time Trr

35

 ns


Note: 1.Reverse recovery condition IF =0.5A,IR =1.0A,Irr=0.25A
